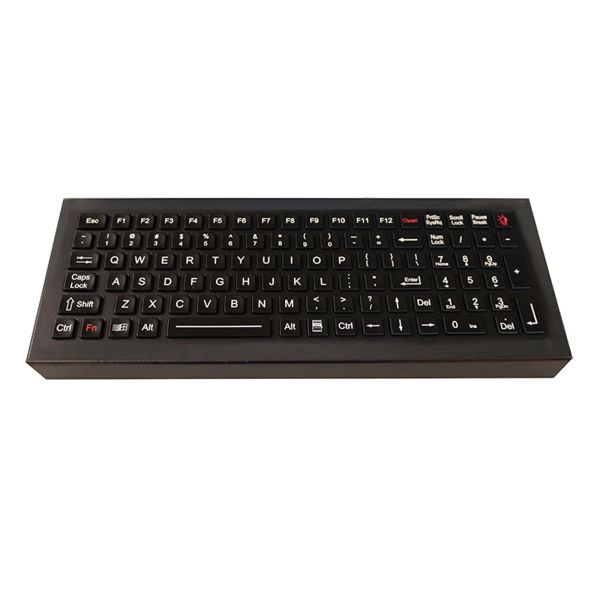

Desktop Stainless Steel Industrial Keyboard 100 Keys Compact IP68 Dynamic Waterproof
Desktop Stainless Steel Industrial Keyboard 100 Keys Compact IP68 Dynamic Waterproof
Specifications
Brand Name :
IKB-MKB
Model Number :
K-TEK-M344KP-FN-BL-BT-ML-EMC-DT-DWP
Certification :
CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Place of Origin :
Shenzhen, China
MOQ :
1pc
Price :
To be quoted
Payment Terms :
Full payment in advance, Western Union, T/T, Paypal
Supply Ability :
3000psc/month
Delivery Time :
ASAP Within 2 weeks upon payment confirmed
Packaging Details :
Each keyboard to one box, several boxes to one carton.
Protection level :
IP68
Operation temperature :
-40oC to +85 oC
Switch life :
more than 5 million of operations.
Lifespan :
> 5 years
Key travel :
1.50mm
Keys :
100 keys
Description

Ruggedized Desktop Waterproof Military Keyboard With Touchpad IP68 Backlight

DESCRIPTION:

100 keys compact format IP68 dynamic waterproof vandal proof stainless steel industrial keyboard with durable polymer keys with full keyboard functionalities, function keys F1, F2, ...F12 are on the top line for easy operation, with numeric keypad, sealed and ruggedized military PCB with carbon-on-gold key switch technology with long stroke 1.50mm with extremely good tactile feeling for fast and accurate data input without any noise, high quality durable black titanium electroplated for the whole keyboard, movable desk top version Meet MIL-STD-461G with EMC (Electro Magnetic Compatibility) & MIL-STD-810F (wide temperature, shock, vibration, humidity etc.) Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc. Adjustable backlight optional (RED, BLUE, WHITE etc.)
Dimensions: 366.0mm x 133.0mm (front panel)
MECHANICAL DATA · Actuator/keys: 100 keys, durable and robust polymer keys.
· Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised Braille on keys are available
· Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar.
· Key travel: 1.50mm
· Actuation Force: 1.80 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 2.5 N+/-0.10N for key 14.0mm x 28.0mm
(pressure point)
· Switch life: more than 5 million of operations.
Power supply voltage: 5VDC ± 0.25V
Current rating (active mode): 17 mA
G.W.: 3.0KGs
Dimensions: 366.0mm x 133.0mm (front panel)

ELECTRICAL DATA:
Switch Contact Material: Carbon-on-Gold key switch technology PCB.
Interface: PS2, USB available,
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)

ENVIRONMENTAL ADAPTABILITY:
Operating temperature: -40oC to +85oC
Storage temperature: -45oC to +90oC
Operating RH: 30-90%
Atmospheric pressure: 60-106Kpa.
Saline mist: 96 hours, IEC 60512-6
Damp heat test at + 40oC: 21 days, IEC 60512-6
Dry heat test at + 85oC: 10 days, IEC 60512-6

RELIABILITY:
RoHS Compliant, CE and FCC, ESD
Protection Level: IP68
Vandal resistant IK09
Key Lifespan >5 million actuation.
MTBF >20000H
MTTR <30min

Desktop Stainless Steel Industrial Keyboard 100 Keys Compact IP68 Dynamic Waterproof

MAIN FEATURE
The keyboard can be dynamic washable with water and other liquids, it can work well even under direct water pouring on the keyboard.
The full keyboard can be locked/disabled via FN + Clean combination keys for easy cleaning without needing to take the keyboard away from PC, and avoid mis-operation or mis-typing.
Imposing stainless steel design with durable and scratch-proof black titanium electroplated, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.
Key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
Waterproof execution according to IP68 protection from top panel and other sides
An excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation.
Any keyboard layouts are available, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
Polymer keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
Complete electronic modules including controller in close consultation with our customers are available.
PS/2, USB connection plug-and-play with PC via PC existing OS driver, no needing of install separate driver.

Desktop Stainless Steel Industrial Keyboard 100 Keys Compact IP68 Dynamic Waterproof

Desktop Stainless Steel Industrial Keyboard 100 Keys Compact IP68 Dynamic Waterproof
