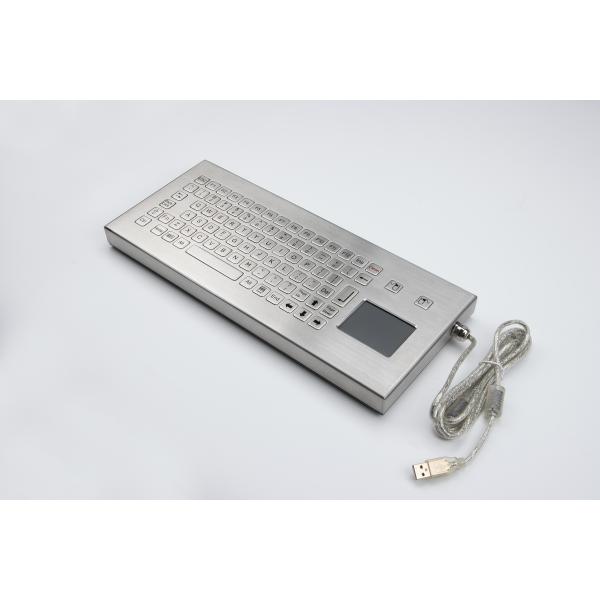

Explosion Proof Stainless Steel Industrial Keyboard With Resistive Touchpad IK09 For Mining
Explosion Proof Stainless Steel Industrial Keyboard With Resistive Touchpad IK09 For Mining
Explosion Proof Stainless Steel Industrial Keyboard With Resistive Touchpad IK09 For Mining
Explosion Proof Stainless Steel Industrial Keyboard With Resistive Touchpad IK09 For Mining
Specifications
Brand Name :
IKB-MKB
Model Number :
K-TEK-B365-RTP-FN-DT-DWP
Certification :
CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Place of Origin :
Shenzhen, China
MOQ :
1pc
Price :
To be quoted
Payment Terms :
Full payment in advance, Western Union, T/T, Paypal
Supply Ability :
3000psc/month
Delivery Time :
ASAP Within 2-3 weeks upon payment confirmed
Packaging Details :
Each keyboard to one box, several boxes to one carton.
Material :
Stainless steel
Mounting :
Desk top version
Interface :
USB or PS/2
Protection Level :
IP68
Vandal Resistant :
IK09
Name :
industrial keyboard with touchpad
Description

Explosion Proof Stainless Steel Industrial Keyboard With Tough Resistive Touchpad IK09 For Mining

DESCRIPTION:

85 keys compact format IP68 dynamic sealed and ruggedized vandal proof stainless steel industrial keyboard with IP65 dynamic sealed & ruggedized tough resistive touchpad with scroll function (optional) for fast and accurate cursor position, users who wear gloves can also use it without any problem. Functional keys F1, F2, F3…F10, F11, F12 are on the top line for easy operation, industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, movable stand alone DESK TOP VERSION,or mountable desktop with mounting holes on the bottoms for fixing. FN+Clean combination keys to lock/disable the whole keyboard for easy cleaning without error output. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.


DIMENSIONS: 365.0mm x 155.0mm x 26.5mm (L x W x H)

Application:
-This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications.
- internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations
-Other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.

MECHANICAL DATA:
Actuator/keys: 85 keys, super quality SUS304 brushed stainless steel
Key top style: Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key
Actuation Force: 1.2 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 2.0 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
Switch life: more than 1 million of operations.
G.W.: 3.00KGs
Dimensions:
365.0mm x 155.0mm x 26.5mm (L x W x H)
ELECTRICAL DATA :
Supply Voltage: +5V DC +/-5%
Current Rating: appr. 50mA
EMC Standard: EN 55032:2015, EN 55035:2017
Lifespan > 5 years
Switch Contact Material: Gold-on-Gold key switch technology PCB
Interface: PS2, USB available
OS: All Windows, Linux, Unix, Mac OSX, Android
RELIABILITY:
RoHS Compliant, CE and FCC, ESD
Protection Level: IP68(front panel)
Vandal resistant IK09
Key Lifespan >1 million actuations
MTBF

>20000H
MTTR <30min
ENVIRONMENTAL ADAPTABILITY :
Operating Temperature: -20oC to +60oC
Storage Temperature: -30oC to +70oC
Operating RH: 30-90%
Atmospheric Pressure: 60-106Kpa
Saline mist: 96 hours, IEC 60512-6
Damp heat test at +40oC: 21 days, IEC 60512-6
Dry heat test at + 85oC: 10 days, IEC 60512-6

Industrial Keyboard Actual Photos:

Keyboard without backlight

Explosion Proof Stainless Steel Industrial Keyboard With Resistive Touchpad IK09 For Mining

Back View

Explosion Proof Stainless Steel Industrial Keyboard With Resistive Touchpad IK09 For Mining
Explosion Proof Stainless Steel Industrial Keyboard With Resistive Touchpad IK09 For Mining

FAQ

Q: Are you trading company or manufacturer ?

A: We are a professional manufacturer for industry/military/medical/vehicle keyboards.


Q: How long is your delivery time?

A: Generally it is 1-2 Weeks after payment is received. If larger quantity, delivery time would be 3-5 weeks.


Q: Do you provide samples ?

A: Yes, we could offer the sample of one quantity first before large quantity orders.


Q: What is your terms of payment ?

A: 100% payment via Paypal T/T, Western Union or Alibaba Trade Assurance.
If you have another question, pls feel free to contact us.
