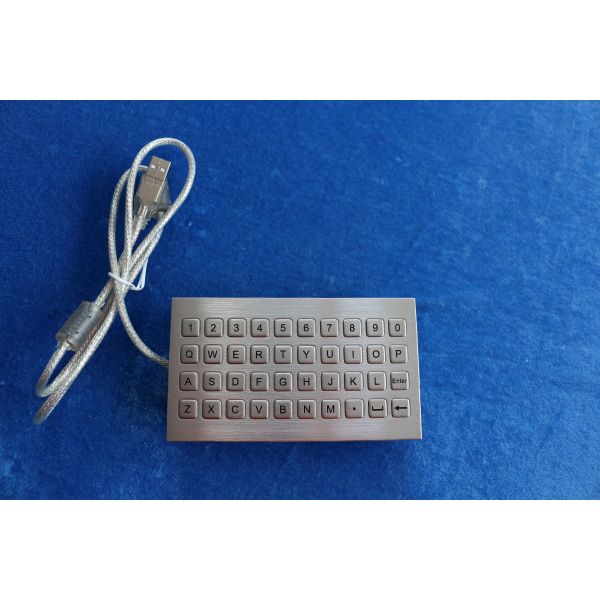

Dynamic Vandal Proof 40 Keys Metal Keypad IP67 Stainless Steel
Dynamic Vandal Proof 40 Keys Metal Keypad IP67 Stainless Steel
Dynamic Vandal Proof 40 Keys Metal Keypad IP67 Stainless Steel
Dynamic Vandal Proof 40 Keys Metal Keypad IP67 Stainless Steel
Specifications
Brand Name :
IKB-MKB
Model Number :
K-TEK-B80KP-40-IT-FP-DWP
Certification :
CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Place of Origin :
Shenzhen, China
MOQ :
1pc
Payment Terms :
Full payment in advance, Western Union, T/T, Paypal
Supply Ability :
3000psc/month
Delivery Time :
ASAP Within 2 weeks upon payment confirmed
Packaging Details :
Each keyboard to one box, several boxes to one carton.
Material :
Metal Stainless steel
Colour :
Brushed stainless steel
Interface :
PS2, USB, RS232, RS485 available
Key travel :
0.45mm short stroke
Mounting :
top panel mounting
Key number :
40 keys
GW :
0.69KGs
Description

40 Keys Metal Keypad Dynamic Water Proof And Vandal Proof IP67 Stainless Steel

DESCRIPTION: 40 keys compact format IP67 dynamic water proof and vandal proof Stainless Steel industrial keypad with

industrial metal dome PCB electronics controller shielded & protected by stainless steel housing, industrial
metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile
feeling for stable and accurate data input, front stainless steel plate with threaded bolts and sealing gasket
for easy tightly mounting. Industrial Backlight (red/blue/white/green) optional. Which is good for outdoor
application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt
mist etc, no rust risk and anti-salt spray corrosion.

Applications:

This industrial keypad is mainly targeted use for:

A: unsupervised or semi -supervised positions of varied access applications,

B: internet terminals and information kiosks at universities,

C: shopping malls, hotels, airports, railway stations and other public areas,

D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.

Dynamic Vandal Proof 40 Keys Metal Keypad IP67 Stainless Steel

Dynamic Vandal Proof 40 Keys Metal Keypad IP67 Stainless Steel

Specifications:

MECHANICAL DATA

Actuator/keys

40 keys, super quality SUS304 brushed stainless steel

Switching material

gold-on-Gold key switch technology with metal dome PCB

Actuation Force

3.2N+/-0.1N for key 10.0mm x 10.0mm (pressure point)

Key travel

0.45mm

Lettering

laser engraving, or raised letters

Front plate

Super quality SUS304 brushed stainless steel

Actuator/keys materials

stainless steel

Dimensions

140mm x 80mm(LxW)

G.W.

0.69KG.

Key top style

protuberant rectangular keys, with laser engraved and etched legends and raised dots available.

Key Size

10.0mm x 10.0mm for normal keys

Switch life

more than 5 million of operation

ELECTRICAL DATA

Supply Voltage

+5V DC +/-5%

Current Rating

appr. 30mA

EMC Standard

I: EN 55032:2015 EN 55035:2017

Lifespan

> 5 years

Switch Contact Material

Gold-on-Gold key switch technology PCB

Interface

PS2, USB, RS232, RS485 available

OS

 All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)

Dynamic Vandal Proof 40 Keys Metal Keypad IP67 Stainless Steel
