108 Keys IP65 Membrane Keyboard Manufacturer With OMRON Key Technology Chemical And Liquid Resistant
108 Keys IP65 Membrane Keyboard Manufacturer With OMRON Key Technology Chemical And Liquid Resistant
108 Keys IP65 Membrane Keyboard Manufacturer With OMRON Key Technology Chemical And Liquid Resistant
108 Keys IP65 Membrane Keyboard Manufacturer With OMRON Key Technology Chemical And Liquid Resistant
108 Keys IP65 Membrane Keyboard Manufacturer With OMRON Key Technology Chemical And Liquid Resistant
108 Keys IP65 Membrane Keyboard Manufacturer With OMRON Key Technology Chemical And Liquid Resistant
Specifications
Brand Name :
IKB-MKB
Model Number :
K-TEK-D405TP-KP-FN-SW
Certification :
RoHS compliant, CE and FCC certified, ISO 9001-2015
Place of Origin :
Shenzhen, China
MOQ :
1pc
Price :
To be quoted
Payment Terms :
Full payment in advance, Western Union, T/T, Paypal
Supply Ability :
3000psc/month
Delivery Time :
ASAP Within 2-3 weeks upon payment confirmed
Packaging Details :
Each keyboard to one box, several boxes to one carton.
Material :
Membrane
Keys :
108 keys
G.W. :
1.40KG
Mounting :
Mountable desk top version
Color :
Black
Name :
Industrial Membrane Keyboard
Keyword :
Industrial keyboard trackball, membrane keyboard, industrial keyboard
Description

IP68 Industrial Membrane Keyboard With OMRON Key Technology Chemical And Liquid Resistant

DESCRIPTION: 108 keys IP65 dynamic rated industrial membrane keyboard with integrated numeric keypad and function keys on the upper line, IP65 dynamic sealed and ruggedized tough touchpad for fast and accurate cursor position, industrial PCB with OMRON switch technology with short stroke 0.45mm with extremely good tactile feeling for reliable data input, with “FN + Lock” combination key for easy cleaning via lock/disable the entire keyboard without needing to take the keyboard from PC, surface mounted extremely flush with anti-microbial, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, with ruggedized brushed stainless steel back plate with mounting studs for top panel mounted solution.

DIMENSIONS: 405.00mm x 155.00mm (top panel)

MECHANICAL DATA
Number of keys 108 keys (including 2 mouse buttons)
Key switch Technology OMRON switch technology with short stroke 0.45mm for stable and accurate data input
Actuation Force 2.0N±0.2N(press point)
Key Travel 0.45±0.05mm
Mounting Type Top panel mounting
Colors Black
G.W. 1.60KGs
Switch life more than 1 million of operations
Key Dimensions (print area) 14.0mm x 14.0mm
Touch pad sealed and ruggedized tough touchpad
Touchpad cover Composite
Method capacitive
More than Lifetime 10 million strokes
Mutual capacitance sensing
X/Y axis location detection resolution 40 Counts /mm
X/Y position report relative
Output (self-detectable depending on cable) PS2 or USB
Tracking speed Maximum 1,016 m/sec
Power supply voltage 5VDC ± 0.25V
Current rating (active mode) < 10 mA
ELECTRICAL DATA
Supply Voltage DC +5V±5%
Current Rating 50mA
EMC Standard EN 55032:2015 EN 55035:2017
Lifespan > 5 years
Interface PS2, USB available
OS All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature -20℃ to +65℃
Storage temperature -30℃ to +75℃
Saline mist 96h, IEC60512-6
Damp heat test at +40℃ 21 days, IEC 60512-6
Dry heat test at +85℃ 10 days, IEC 60512-6
Humidity 100%
Atmospheric pressure 60-106Kpa
RELIABILITY
RoHS compliant, CE and FCC certified
Protection Level IP65 dynamic (front panel)
Key Lifespan >1 million actuations
MTBF >20000H
MTTR <30min
APPLICATIONS Industrial, marine, food and beverage, processing factory, medical and pharmaceutical, numerical control machine etc.

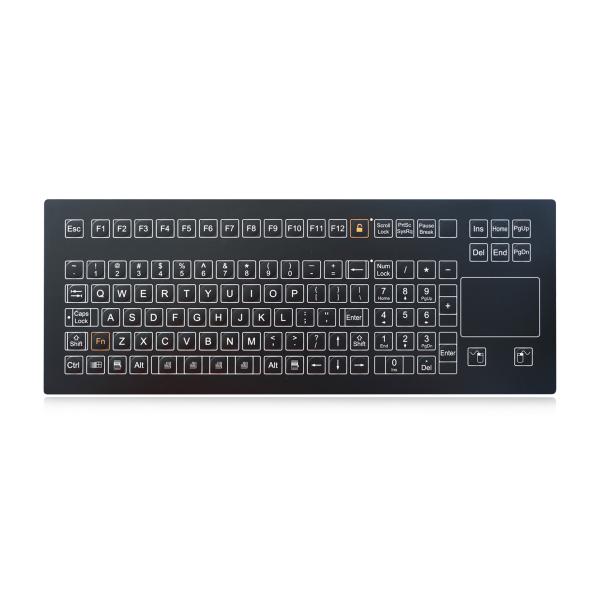

Industrial Membrane Keyboard Actual Photos
108 Keys IP65 Membrane Keyboard Manufacturer With OMRON Key Technology Chemical And Liquid Resistant
