Military Grade Industrial Keyboard with FN Function Keys and Optical Trackball Mouse
Military Grade Industrial Keyboard with FN Function Keys and Optical Trackball Mouse
Military Grade Industrial Keyboard with FN Function Keys and Optical Trackball Mouse
Military Grade Industrial Keyboard with FN Function Keys and Optical Trackball Mouse
Military Grade Industrial Keyboard with FN Function Keys and Optical Trackball Mouse
Military Grade Industrial Keyboard with FN Function Keys and Optical Trackball Mouse
Military Grade Industrial Keyboard with FN Function Keys and Optical Trackball Mouse
Military Grade Industrial Keyboard with FN Function Keys and Optical Trackball Mouse
Specifications
Brand Name :
IKB-MKB
Model Number :
K-TEK-M425-OTB-FN-BL-ML-BT
Certification :
CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Place of Origin :
Shenzhen, China
MOQ :
1pc
Price :
To be quoted
Payment Terms :
Full payment in advance, Western Union, T/T, Paypal
Supply Ability :
3000psc/month
Delivery Time :
ASAP Within 2 weeks upon payment confirmed
Packaging Details :
Each keyboard to one box, several boxes to one carton.
Material :
silicone
Backlight :
White
Keys :
87 keys
Key travel :
1.50mm±0.10mm
Protection Level :
IP65 dynamic (front panel)
Interface :
USB/PS2 available
Pointing device :
touchpad
Lifespan :
> 5 years
Key word :
rugged keyboard, silicone industrial keyboard
Description

Industrial Keyboard with FN Function Keys and Optical Trackball Mouse for Military

Model NO: K-TEK-M425-OTB-FN-BL-ML-BT

DESCRIPTION FOR MILITARY KEYBOARD:

87 keys IP65 dynamic sealed & ruggedized silicone rubber industrial keyboard, 12 FN function keys (F1, F2...F11, F12) on the top line for easy operation, integrated with a conventional mouse with middle wheel, left/right buttons as well as one IPX6 rating 34mm optical trackball mouse at 500~1000 DPI resolution for fast cursor moving, industrial PCB with carbon-on-gold key switch technology with 1.50mm key stroke with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface treatment to withstand most chemicals and liquids under harsh environment, FN+ CLEAN combination key for easy cleaning via locking/disable the entire keyboard without needing to take away the keyboard from PC, high quality durable black titanium electroplated on the top stainless steel plate, with sinking holes for panel mount to user's device. Adjustable industrial white backlight included, which meets MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.), and MIL-STD-461G (EMC, EMI, EMS, ESD) OPTIONAL.

DIMENSIONS: 425.0mm x 150.0mm (Front Panel)

MECHANICAL DATA
Key 87 keys + 3 mouse keys
Key top style Protuberant rectangular keys with tactile feeling.
Key travel 1.50mm±0.10mm
Actuation Force 1.5N±0.2N (pressure point )
Switch life more than 5 million of operations.
G.W. 2.50KGs
ELECTRICAL DATA
Supply Voltage DC +5V±5%
Current Rating 50mA when backlight is off, 300mA with backlight on
EMC Standard EN 55032:2015 EN 55035:2017
Meet MIL-STD-461G (EMC, EMI, EMS, ESD): (optional)
1 CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads
2 CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads
3 CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads
4 CS106 Conducted Susceptibility, Transients, Power Leads
5 CS112 Electrostatic Discharge Susceptibility
6 CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection
7 CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation
8 CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads
9 RE101 25Hz -100kHz Radiated Emissions, Magnetic Field
10 RE102 10kHz - 18GHz Radiated Emissions, Electric Field
11 RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field
12 RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field
MIL-STD-810F (wide temperature, shock, vibration, humidity etc.)
Lifespan > 5 years
Switch Contact Material carbon-on-gold key switch technology
Interface PS2, USB or aviation plug available
OS All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature -20℃ to +65℃
Storage temperature -30℃ to +75℃
Saline mist 96h, IEC60512-6
Damp heat test at +40℃ 21 days, IEC 60512-6
Dry heat test at +85℃ 10 days, IEC 60512-6
Humidity 100%
Atmospheric pressure 60-106Kpa
RELIABILITY
RoHS compliant, CE and FCC certified, MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.)
Protection Level IP65 dynamic (front panel)
Key Lifespan >5 million actuations
MTBF >20000H
MTTR <30min
APPLICATION Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

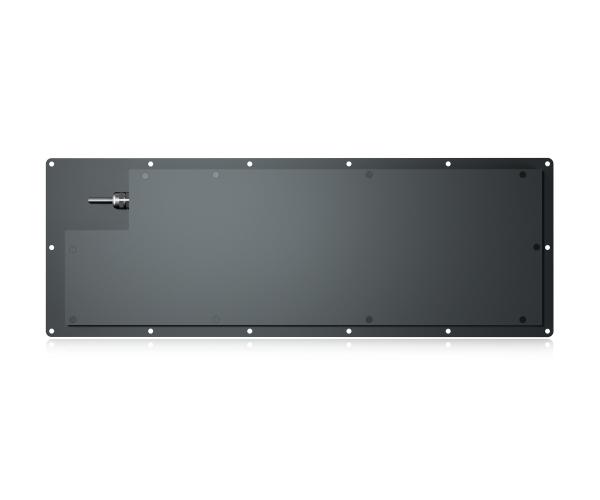

Actual Photos For Military Keyboard
Military Grade Industrial Keyboard with FN Function Keys and Optical Trackball Mouse

Military Grade Industrial Keyboard with FN Function Keys and Optical Trackball Mouse
Key Technology China LimitedMilitary Grade Industrial Keyboard with FN Function Keys and Optical Trackball MouseMilitary Grade Industrial Keyboard with FN Function Keys and Optical Trackball Mouse
