7500mAh Battery Ruggedized Tablet Pc , 7 Inch Industrial Android Tablet
7500mAh Battery Ruggedized Tablet Pc , 7 Inch Industrial Android Tablet
7500mAh Battery Ruggedized Tablet Pc , 7 Inch Industrial Android Tablet
7500mAh Battery Ruggedized Tablet Pc , 7 Inch Industrial Android Tablet
Specifications
Brand Name :
BATL
Model Number :
BT75
Certification :
CE/ROHS/IP67
Place of Origin :
Shenzhen , China
MOQ :
1
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
2000 pieces/month
Delivery Time :
5-25 working days
Packaging Details :
Gift box 357*186*60mm,1.4kg/piece, cartoon box 10 pieces/cartoon,635*375*220mm
Type :
Rugged Industrial Tablet
Display size :
7.0 inch android 8.1
Memory :
2GB RAM+32GB ROM
Camera :
front 5.0M+rear 13.0M
Battery :
7500mAh
GPS :
Support GPS/Beidou/glonass
LCD Brightness :
Minimum 1000cd/m2
Dimension :
216.98*133.96*21.4
Weight :
680g
Option :
barcode scanner,NFC reader,uhf rfid,Biometric fingerprint
Description

Rugged Industrial Tablet Rugged 7 Inch Android Tablet IP67 BT75

BT75 it is a 7.0 inch IP67 Sunlight readable Rugged tablet with option modules 1D/2D barcode scanner,NFC reader,built in UHF RFID,13.56 HF RFID,Biometric fingerprint etc,we use Corning Gorilla tempered glass touch panel and double injection mould housing to make it shockproof and the model with Quad core CPU and Android 8.1 o.s,with dual band WIFI,Bluetooth 4.0 and 2G/3G/4G etc wireless technology,Meanwhile the model with 5.0M front camera and 13.0M rear one,the most important with built in 7500mah big battery to make it continuously working 10-14 hours, And there are HDMI D.c Micro USB etc ports,And we also design hand strap to better hold the device,they mainly use the devices in warehouse management,Security,retail shops and some install their own Application to control special projects

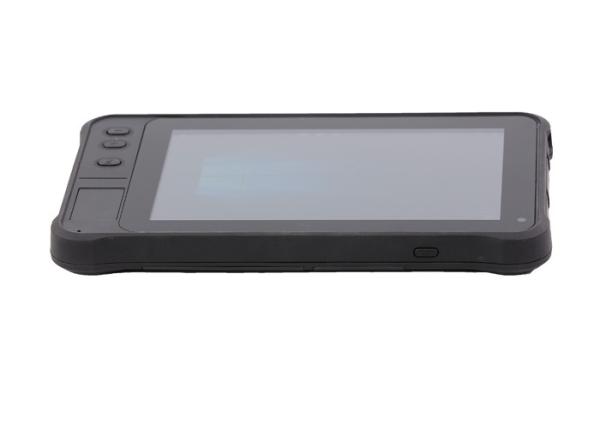

Product Appearance
Type Details Standard Configuration
Product Form Product Form 7 inch 2 in1 rugged notebook
Dimension 217*134*18.6mm
Weight
Product Color Black (front + rear)
LCD Screen Size 7 inch 16:10
Resolution 800*1280 IPS
Brightness Minimum 1000cd/m2
TP Touch panel 5 points capacity TP,G+G,hardness over 7H, scratch resistant, TP thickness:1.1mm,COF, support touch with wearing gloves and wet finger
Camera Front Front 5.0MP
Rear Rear 13MP ,Auto focus with flash
Speaker Built-in built-in 8Ω/1W Boss speaker x 1
Microphone Built-in Sensitivity: -42db, output impedance 2.2kΩ
Battery(tablet) Type Removable Li-polymer battery
Capacity calculate 3.7V/7500mAh
Endurance nearly 10hours ( 50% volume sounds, Max top brightness, 1080P HD video display by default )
System Hardware Configuration
Type Details Descriptions
CPU Type MTK 8735A quadcore
Speed 1.45GHZ
GPU type ARM ® Cortex-A53
RAM DDR3L 2GB LPDDR3
ROM Emmc 32GB EMMC
Indicator light Built-in Charging indicator light,which is red flash when low power,keeping on red light when power more than 20% , ,keeping on green light when full charged .
L/P-Sensor Built-in Light/Proximity sensors
Compass sensor Built-in Compass sensor
gyroscope Gyroscope Gyroscope
G_sensor Built-in G_sensor
Internet Connections
Type Details Descriptions
WIFI WIFI module WIFI 802.11(ac/a/b/g/n) dual frequency 2.4G+5.8G WIFI
Bluetooth Built-in BT4.0 (BLE) class1.5 Transmission distance :10m
2G/3G/4G Built-in GSM & WCDMA & TD-S(B34,B39) & TDD(B38,B39,B40,B41)& FDD(B1,B2,B3,B4,B5,B7,B8,B 17,B 20)
GPS Built-in MT6630 4in1 chipset,support GPS,BeiDou,Glonass,(GPS+BeiDou by default)
Data collection
Type Details Descriptions
one-dimension barcode optional Honeywell N4313,Optical resolution:5 mil,scan speed:50 times/s,UCC Coupon Code,ISSN EAN,Code 128,GS1-128,ISBT 128,Code 39,Code 93 ,Code 11
Two-dimension barcode optional Honeywell N3680/SE4710/6603,Optical resolution:5 mil,scan speed:50 times/sCode system:PDF417,
QR Code, MicroQR, Aztec Inverses,Han Xin,Han Xin Inverse
NFC optional DS_ST21NFCD_V3:
identification distance :2-4cm
RFID optional 1:read ISO14443A UID；
2:read ISO14443A/B,the 2nd generation UID；
3:read ISO14443A/B/15693/Felica；
PS:(Select one from three as above)
ID Module optional support reading the 2nd,the 3rd ID card information and the fingerprint information built-in.
Fingerprint optional the fingerprint module authenticated by Chinese Ministry of public security, support the collection of resident fingerprint which built in their ID card.
UHF optional 1:PR9200,recognition distance:1m~1.5M,TTL port
2:M-550 UHF RFID slim all-in-one module:
I/O Ports
Type Details Descriptions
TF card Extending external storage x1 max:128G
USB port Extending external storage and data exchange MicroUSB 2.0*1 , Android OTG x1
earphone jack audio output ∮3.5mm standard earphone jack x1
DC jack power waterproof DC 5V 3A ∮3.5mm DC jack x1
HDMI port video,audio output HDMI 1.4a Type C x1
Extension interface pogo Pin 12pin Pogo Pin x1( USB + UART + power )
Standard Accessories
Type Details Descriptions
OTG Cable OTG Cable USB OTG turn MICRO USB cable length 45mm
USB Cable USB Cable USB turn micro 5P L=1.2M 4 wires with aluminium foil and shielding
Adapter Standard AC100V ~ 240V,50Hz/60Hz Output DC 5V/3A Europe standard with CE certificate
Software Configuration
Type Details Descriptions
Operation System Operation System
Version		 Android 8.1
Product Certificate
Type Details Descriptions
Certificates System IP67 IPX7
Testing:soaking in short time
Testing equipment:soaking tank.
Testing condition:put the sample into the soaking tank which is filled with water,the distance which is from sample bottom side to water surface,should be more than 1m. The distance which is from sample top side to water surface,should be more than 0.15m.
Testing time: 30 min
CE NB Y
MIL-STD-810G Y
Battery UN38.3,MSDS, Aviation report, Sea transportation report, IEC62133
Reliability
Type Details Descriptions
Product reliability Falling height from 120cm height to wooden floor with booting status
Working temperature ‘-10 °C to 50°C
Storage temperature ’-30 °C to 70 °C
Humidity Humidity: 95% Non-Condensing

Bright Alliance Services

Bright Alliance based on the continuous development of industrial terminal technology, and independently develops the industrial rugged devices,including Handheld pda and rugged tablet And a variety of accessories can be selected to meet customers' demand for industry, aviation, aerospace, vehicle-mounted, police, education, exploration, fishing animal husbandry, finance and other industries.now our customers are mainly system integrator and solution provider,create new service and usages to the end users.

FAQ

Question 1: Does it readable under sunlight?

Yes.the model with 1000 nits high brightness display,you can see it under sunlight easily

Question 2: Would you like to supply 1 sample for testing?

Yes, Of course. We can provide 1 sample rugged android tablet for testing.

Question 3: What's the total price for 1 sample?


As a manufacturer of rugged tablets,the more you buy, the cheaper it'll be.
The sample price is a little bit higher than the common wholesale price

Question 4: How long is the delivery time?


The delivery time of rugged android tablet goods is different from quantities:
for samples, It's about 3-5 working days;
If 100~500 pcs, it's about 10--20 working days;
If More than 500 pcs, It's about 20-30 working days.
