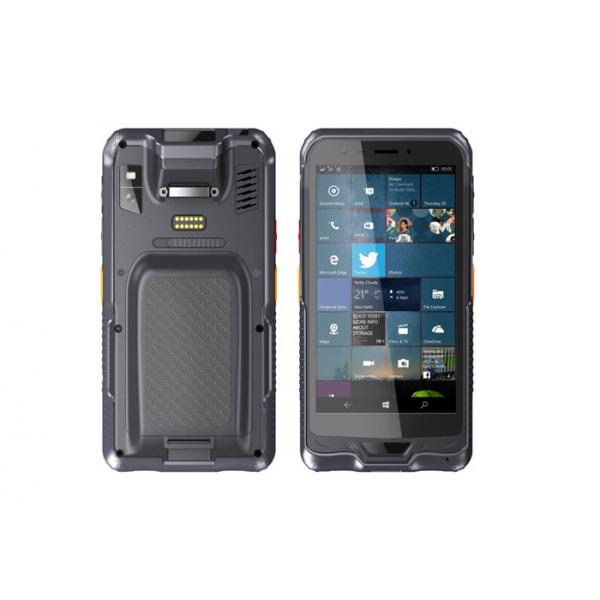

Industrial Pda Windows Mobile Handheld Data Terminal Rugged Pda BH862
Industrial Pda Windows Mobile Handheld Data Terminal Rugged Pda BH862
Industrial Pda Windows Mobile Handheld Data Terminal Rugged Pda BH862
Industrial Pda Windows Mobile Handheld Data Terminal Rugged Pda BH862
Specifications
Brand Name :
BATL
Model Number :
BH862
Certification :
CE/ROSH/IP65
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
2000 pieces/month
Delivery Time :
5-25 working days
Packaging Details :
Gift box 219*130*78mm,806g/piece ,cartoon box 10 pieces/cartoon,410*285*245mm,8.35kg
Type :
Industrial Pda Windows Mobile
display size :
6.0 inch
Memory :
2GB RAM+32GB ROM
OS :
windows 10 IOT
Battery :
5000mAh
Dimension :
185*93*20.7mm
Navigation :
GPS+GLONASS
Camera :
front 2.0 M+ rear 5.0 M
data transfer :
3G
Optional :
docking station,pistol grip
Description

Industrial Pda Windows Mobile Handheld Data Terminal Rugged Pda BH862

6.0 inch IP67 1280*720 430 nits brightness display

◪ Corning Gorilla tempered glass and Double injection mould for better protection

◪ Intel Cherrytrail Z8350 CPU 2GB RAM and 32GB ROM

◪ Dual band WIFI,Support GPS and GLONASS navigation

◪ Front 2.0M and rear 5.0M camera

◪ 5000mah mould injection battery

◪ Honeywell N3680 1D/2D Barcode scanner

◪ NFC reader

◪ Pistol grip with trigger make works easier

Option Docking station,vehicle mount etc

Scenario warehouse management,logistic,retail etc

Product Outlook
Type Details Standard Configuration
Product Form Type Rugged handheld device ( Rugged PDA)
Dimension 185*93*20.7mm
Weight device unit 380g
Device Color black
LCD Screen Size 5.98",16:9 ,720*1280, 720P,IPS screen,430 Nits
TP Touch Panel 5points Capacitive,G+FF,Corning Gorilla Glass, Rigidity: above 7H-Anti-scratch,TP thickness:1.1mm,COF,support glove/wet hand touch
Camera Front/rear front 2.0MP ,Rear 5.0MP automatic focusing
Speaker Built-in build in 8Ω/0.8W waterproof speaker x 1
Mic Built-in Sensitivity::-42db, output resistance2.2kΩ
Battery Type Li_polyment, removeable battery
Capacity 3.7V/5000mAh,4hrs
System Hardware Configuration
Type Details Description
CPU Type intel cherrytrail Z8350,1.44Ghz-1.92GHz
GPU Type Intel® HD Graphics
RAM DDR3L 2GB,option 4GB
ROM Emmc 32GB,option 64GB
Electronic compass Built-in electronic compass
Gyroscope Built-in gyroscope
G_sensor Built-in Gravity acceleration sensor
Network Connections
Type Details Descriptions
WIFI WIFI module WIFI 802.11(a/b/g/n) frequency 2.4G+5.8G dual band WIFI
Bluetooth Built-in BT4.2 (BLE) class1.5 transmission distance:10m
3G Built-in IC:H350-A30-20 bands: WCDMA(900/2100MHz) GSM(900/1800MHz), HSDPA 7.2Mbps, HSUPA 5.7Mbps
NFC Built-in NXP NFC 13.56MHz support SO/IEC 14443A/14443B/15693/18092/mifare protocol, Card reading distance: 4cm
1D/2D Barcode scanner Built-in 2D QR code Scanner: Honeywell N3680 Hardware decode
Scan Speed: 50 times/s
Optical resolution: 5mil
Support code system: Data Matrix Inverse Maxicode, QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverses, Han Xin, Han Xin Inverse.
GPS Built-in support satellites: GLONASS,QZSS,GPS; Capture sensitivity:-160 dBm; Cool Start Time: <30s, hot Start Time: <28 seconds,
frequency: 0.25 Hz … 10 MHz (configurable)
Key button
Type Details Description
power power on/off button x1
volume Volume + - Volume + - x2
barcode barcode scan key barcode key(left,right) x2
HOME system HOME key x1
Interface
Type Details Descriptions
Micr usb charging and data transmission charging and OTG x1
Earphone Jack audio output ∮3.5mm standard earphone jack x1
TF Card Extensive External Memory support SDHC/SDXC x1 max:128G
SIM Card 3G/4G SIM card SIM card interface x1
POGO PIN 2 docking charging be used to docking charge x1
Standard Accessories
Type Details Description
USB cable USB connect cable Micro USB cable 5P L=1.2M 4core plus aluminum foil plus screen shielding
power adapter standard Input:100~240VAC 50/60HZ output:5VDC 2.5A USB ,adapter for ( EU, US,UK)
Software Configuration
Type Details Description
Operation System OS version windows 10 IOT
Reliability
Type Details Descriptions
Product Reliability Drop Height 1.2m composite wood floors, in operation status
Operate Temperature ‘-10 °C to 50 °C (-20 °C to 60 °C optional)
Store Temperature ’-30 °C to 70 °C
Humidity Humidity: 95% Non-Condensing

FAQ:

Question 1: How long is the delivery time?

The delivery time of rugged android tablet goods is different from quantities:
for samples, It's about 3-5 working days;
If 100~500 pcs, it's about 10--20 working days;
If More than 500 pcs, It's about 20-30 working days.

Question 2: Would you like to supply 1 sample for testing?

  • Yes, Of course. We can provide 1 sample android rugged tablet for your testing
  • Who we are?
  • Founded in 2010, Bright Alliance specializes in the research and development and application of mobile computers including handheld pda and Windows rugged tablet with optional barcode,Biometric fingerprint,NFC reader etc and display from 6inch to 12.2 inch.including Windows 10 home,windows 10 pro,windows 10 IOT etc os
  • Why choose us?
  • Bright Alliance has formed strategic alliances with many foreign companies. It is a strategic partner of many internationally renowned IoT equipment importer, and can provide customers with more advanced and time-sensitive products and services.
