10.1 Inch Rugged Windows Tablet With Barcode Scanner , BT611 Waterproof Tablet Pc
10.1 Inch Rugged Windows Tablet With Barcode Scanner , BT611 Waterproof Tablet Pc
10.1 Inch Rugged Windows Tablet With Barcode Scanner , BT611 Waterproof Tablet Pc
10.1 Inch Rugged Windows Tablet With Barcode Scanner , BT611 Waterproof Tablet Pc
10.1 Inch Rugged Windows Tablet With Barcode Scanner , BT611 Waterproof Tablet Pc
10.1 Inch Rugged Windows Tablet With Barcode Scanner , BT611 Waterproof Tablet Pc
Specifications
Brand Name :
BATL
Model Number :
BT611
Certification :
CE/ROHS/IP67
Place of Origin :
SHENZHEN,CHINA
MOQ :
1
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
2000 pieces/month
Delivery Time :
5-25 working days
Packaging Details :
Gift box 385*225*64mm,2.05/piece ,cartoon box 10 pieces/cartoon,660*410*260mm,22.2kg
display size :
10.1 inch windows 10
memory :
2GB RAM+32GB ROM
Type :
rugged windows tablet with barcode scanner
battery :
8000 mAh
camera :
front 2.0M+rear 5.0M
Dimension :
275.5*187.5*22mm
optional accessories :
vehicle mount,docking station,stylus
data transfer :
3G
Optional :
NFC reader,barcode scanner
Navigation :
GPS+GLONASS
Description

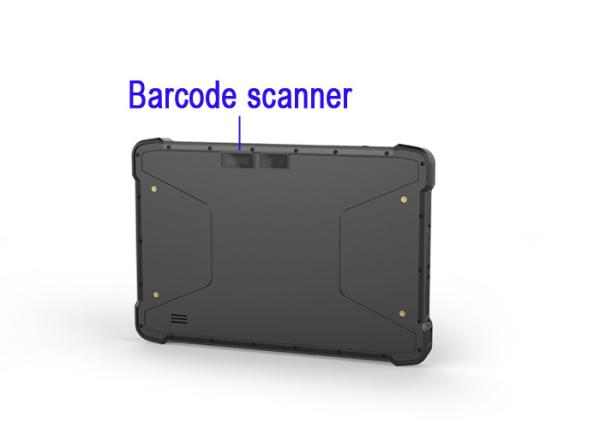

Rugged Windows Tablet With Barcode Scanner Tough Tablet pc 10.1 Inch BT611

◪ IP67 10.1 inch 250 nits brightness display for outdoor use

◪ Intel Quad core windows 10 Home

◪ Corning Gorrila tempered glass and Double injection mould housing for shockproof

Big memory 2GB RAM and 32GB ROM

GPS and GLOANSS double satellite

◪ Dual band WIFI,BT 4.0,2G/3G/LTE wireless transmit

◪ Front 2.0M/Back 5.0M camera

◪ 8000mah big battery continuously working 8-10 hours

◪ Option 1D/2D Barcode scanner/docking station etc

Product Outlook
Type Details Standard Configuration
Product Form Type Rugged Tablet
Dimension 275.5*187.5*22mm
Weight Device unit: 1014g
Unit with giftbox and standard accessories:1990g
Docking:290g,8000mAh battery:250g
Device Color Black(frant and rear Panel: black,Decorate board:black)
LCD Screen Size 10.1 inch 16:10
Resolution 800 (RGB)*1280
Brightness 250 cd/m2
TP Touch Panel 10 points Capacitive,G+G,Rigidity: above 7H-Anti-scratch,TP thickness:1.1mm,COF
Camera Front Front:2.0MP with chargeing indicator light
Rear Rear: 5.0MP
Speaker Built-in Embedded 8Ω/0.8W waterproof speaker x 1
Mic Sensitivity:-42db, output resistance:2.2kΩ
Battery Type Lithium-ion polymer battery , pluggable, dimension: 21.8*92.3*9.5mm
Capacity 3.7V/8000mAh
Endurance 8hrs
System Hardware Configuration
Type Details Description
CPU Type Intel cherry Trail Z8350
Speed 1.33Ghz-1.92GHz
GPU Type Intel HD Graphic(Gen7)
RAM DDR3L 2GB
ROM Emmc 32GB
G_sensor Built-in Gravity acceleration sensor
Network Connections
Type Details Descriptions
WIFI WIFI Module WIFI 802.11(a/b/g/n) Frequency 2.4G+5.8G dual band WIFI,
Bluetooth Built-in BT4.2 (BLE) class 1 Transmission distance :10m
3G Option IC:H350-A30 WCDMA(900/2100MHz)HSDPA 7.2Mbps,HSUPA 5.76Mbps Huawei MU609 WCDMA Band 1/2/5/8
GSM/GPRS/EDGE: 850 MHz/900
MHz/1800 MHz/1900 MHz
GPS option Support :GLONASS,QZSS,GPS; Capture sensitivity: -160 dBm；Cool Start Time:<30second,Hot start time:<28seconds,frequency:0.25 Hz … 10 MHz
NFC option NXP NFC 13.56MHz Support ISO/IEC 14443A/14443B/15693/18092/mifare protocol,Card reading distance:4cm
Data Collection
Type Details Description
2D Barcode Scanner Option Honeywell N3680 Hardware decoder Optical Resolution:1280*800；5mil Scan speed:50/s Symbol system: QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse
Interface Configuration
Type Details Descriptions
TF slot Extensive External Memory Support SDHC/SDXC x1 max:128G
USB Interface Extend external memory and data transfer USB 2.0*1 (Host)for windows Android OTG x1
Earphone Jack Audio Output ∮3.5mm standard earphone jack x1
DC Jack Power DC 5V 3A ∮3.5mm Power connector x1
HDMI Video Output HDMI 1.4a Type C x1
Extensive Slot pogo Pin 12pin Pogo Pin x1 Option
Standard Accessories
Type Details Description
OTG Cable OTG Cable USB OTG to MICRO USB cable length:45mm
USB Cable USB Cable USB to micro 5P L=1.2M 4core aluminum foil shield cable
Power Adaptor Standard AC100V ~ 240V,50Hz/60Hz output DC 5V/3A USA Standard CE approval
Software Configuration
Type Details Description
Operation System OS version windows 10 Home or Pro or IOT Default language:English
Product Certificate
Type Details Description
Certificate System IP67 IP67 Report: Water resistance:IP-X7,Dust resistance:IP-6X Report ID no.:SET2015-07677
a.Inner Nozzle diameter:6.3mm； b. water speed:12.5±0.625L/min；
c. Water Pressure:adjust according to water volumn；
d.Central part of water volumn
e.Spray time in surface of panel:about 1min；f.test time:at least 3min；
g.distance between nozzle and panel surface:2.5～3m.
After test,there is no water leakage in sample.
CE-NB Y
MIL-STD-810G Y
Battery UN3803,MSDS,IEC62133
Reliability
Type Details Descriptions
Product Reliability Drop Height 100cm composite wood floors, in operation status
Operate Temperature ‘-10 °C to 50 °C (-20 °C to 60 °C optional)
Store Temperature ’-30 °C to 70 °C
Humidity Humidity: 95% Non-Condensing
Accessories Standard 1 USB cable,1 charger,1 handstrap,
Optional Docking station

FAQ

Question 1: What's your MOQ?

The MOQ of rugged tablet is 1 piece.

Question 2: How long is the delivery time?

The delivery time of rugged android tablet goods is different from quantities:
for samples, It's about 3-5 working days;
If 100~500 pcs, it's about 10--20 working days;
If More than 500 pcs, It's about 20-30 working days.

Question 4: Who are your customers?

1. Our products have been sold to worldwide,especially market in South/North America, Europe, Asia, Africa Mid-east, etc.
2.The market share is increasing quickly every year and we get more and more positive feedbacks from our customers.

Question 5: Would you like to supply 1 sample for testing?

Yes, Of course. We can provide 1 sample android rugged tablet for your testing.

Bright Alliance Services

We focus on rugged tablet and handheld pda over 8 years.

We can support completely Free SDK and technical support for you.

ODM/OEM customization services according to your requirements.

12 months warranty for your devices and other parts. and 6 months for the batteries. Free maintenance of the devices and part of accessories replacement in the warranty .if out of the warranty, you'll have to pay the basic cost for them.

And experienced sales have better communication to get what you need and save your time
