Portable Rugged Tablet Pc With Barcode Scanner , Rugged 7 Inch Tablet BT675
Portable Rugged Tablet Pc With Barcode Scanner , Rugged 7 Inch Tablet BT675
Portable Rugged Tablet Pc With Barcode Scanner , Rugged 7 Inch Tablet BT675
Portable Rugged Tablet Pc With Barcode Scanner , Rugged 7 Inch Tablet BT675
Specifications
Brand Name :
BATL
Model Number :
BT675
Certification :
CE/ROHS/IP67
Place of Origin :
Shenzhen , China
MOQ :
1
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
2000 pieces/month
Delivery Time :
5-25 working days
Packaging Details :
Gift box 357*186*60mm,1.4kg/piece, cartoon box 10 pieces/cartoon,635*375*220mm
Display size :
7.0 inch Windows 10
Memory :
4GB RAM+64GB ROM
Type :
Rugged Tablet With Barcode Scanner
Battery :
7500mAh
Camera :
front 2.0M+rear 5.0M
GPS :
Support GPS/Beidou/glonass
LCD Brightness :
Minimum 1000cd/m2
Dimension :
216.98*133.96*21.4
Weight :
680g
Option :
barcode scanner,NFC reader,uhf rfid,Biometric fingerprint
Description

Rugged Tablet With Barcode Scanner Rugged Tablet pc 7.0 Inch BT675

Standard accessories hand strap,USB cable,charger etc

Scenario warehouse management,install customers app for special projects etc

7 inch IP67 800*1280 1000 nits sunlight readable

Corning Gorilla tempered glass and Double injection mould housing to make it MIL-STD-810G standard and shockproof

Quad core Windows 10

4 GB RAM and 64 GB ROM

Dual band WIFI,BT 4.0,2G/3G/LTE wireless transmit

Support GPS+Glonass navigation

Front 2.0M and rear 5.0M camera

7500 mah big battery for long time working

Option Barcode scanner,UHF RFID reader,fingerprint,NFC reader

HDMI,D.C and Micro USB

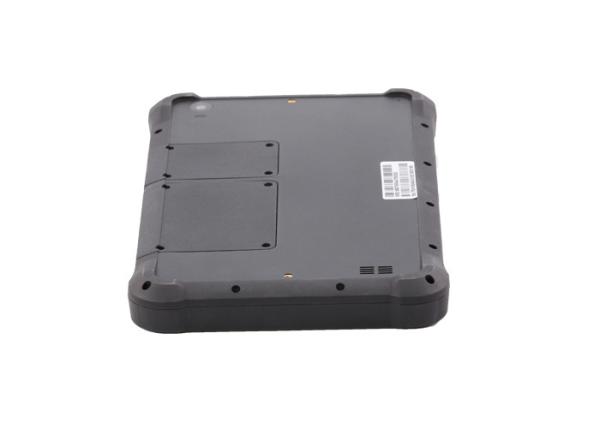

Product Appearance
Type Details Standard Configuration
Product Form Product Form 7 inch rugged Tablet
Dimension 216.98*133.96*21.4
Weight 680g
Product Color Black (front + rear)
LCD Screen Size 7 inch 16:10
Resolution 800*1280 IPS
Brightness Minimum 1000cd/m2
TP Touch panel 5 points capacity TP,G+G,hardness over 7H, scratch resistant, TP thickness:1.1mm,COF, support touch with wearing gloves and wet finger
Camera Front Front 2.0MP
Rear Rear 5MP ,Auto focus with flash
Speaker Built-in built-in 8Ω/1W Boss speaker x 1
Microphone Built-in Sensitivity: -42db, output impedance 2.2kΩ
Battery(tablet) Type Removable Li-polymer battery
Capacity calculate 3.7V/7500mAh
Endurance nearly 10hours
System Hardware Configuration
Type Details Descriptions
CPU Type Intel Cherrytrail Z8350
Speed 1.44Ghz-1.92GHz
GPU type Intel® HD Graphics
RAM DDR3L 4GB LPDDR3
ROM Emmc 64GB EMMC
Indicator light Built-in Charging indicator light,which is red flash when low power,keeping on red light when power more than 20% , ,keeping on green light when full charged .
L/P-Sensor Built-in Light/Proximity sensors
G_sensor Built-in G_sensor
Internet Connections
Type Details Descriptions
WIFI WIFI module WIFI 802.11(ac/a/b/g/n) dual frequency 2.4G+5.8G WIFI
Bluetooth Built-in BT4.0 (BLE) class1.5 Transmission distance :10m
3G Built-in H350
GSM/GPRS/EDGE Band(MHz):900/1800;WCDMA Band(MHz):900/2100
4G Built-in EC25-E :
LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8
GPS Built-in U-BLOX M8Q GNSS.Support GPS/Beidou/glonass
Data collection
Type Details Descriptions
one-dimension barcode optional Honeywell N4313,Optical resolution:5 mil,scan speed:50 times/s,Code system:UPC/EAN, Bookland EAN ,UCC Coupon Code,Code 39,Trioptic Code 39 ,Code 32,Code 93 ,Code 11
Two-dimension barcode optional Honeywell N3680/SE4710/6603,Optical resolution:5 mil,scan speed:50 times/sCode system:PDF417, MicroQR, QR Inverse,Aztec,Aztec Inverses,etc
NFC optional DS_ST21NFCD_V3:
identification distance :2-4cm
HF RFID optional 1:read ISO14443A UID；
2:read ISO14443A/B,the 2nd generation UID；
3:read ISO14443A/B/15693/Felica；
ID Module optional support reading the 2nd,the 3rd ID card information and the fingerprint information built-in.
Fingerprint optional the fingerprint module authenticated by Chinese Ministry of public security, support the collection of resident fingerprint which built in their ID card.
UHF RFID Built in 1:PR9200,recognition distance:1m~1.5M,TTL port
2:M-550 UHF RFID slim all-in-one module:
I/O Ports
Type Details Descriptions
TF card Extending external storage x1 max:128G
SIM card SIM card storage SIM x1
USB port Extending external storage and data exchange MicroUSB 2.0*1 , Android OTG x1
earphone jack audio output ∮3.5mm standard earphone jack x1
DC jack power waterproof DC 5V 3A ∮3.5mm DC jack x1
HDMI port video,audio output HDMI 1.4a Type C x1
Extension interface pogo Pin 12pin Pogo Pin x1( USB + power )
Standard Accessories
Type Details Descriptions
OTG Cable OTG Cable USB OTG turn MICRO USB cable length 45mm
USB Cable USB Cable USB turn micro 5P L=1.2M 4 wires with aluminium foil and shielding
Adapter Standard AC100V ~ 240V,50Hz/60Hz Output DC 5V/3A Europe standard with CE certificate
Software Configuration
Type Details Descriptions
Operation System Operation System
Version		 windows 10 home.option pro or IOT
Product Certificate
Type Details Descriptions
Certificates System IP67 IPX7
Testing:soaking in short time
Testing equipment:soaking tank.
Testing condition:put the sample into the soaking tank which is filled with water,the distance which is from sample bottom side to water surface,should be more than 1m. The distance which is from sample top side to water surface,should be more than 0.15m.
Testing time: 30 min
CE NB Y
MIL-STD-810G Y
Battery UN38.3,MSDS, Aviation report, Sea transportation report, IEC62133
Reliability
Type Details Descriptions
Product reliability Falling height from 120cm height to wooden floor with booting status
Working temperature ‘-10 °C to 50°C
Storage temperature ’-30 °C to 70 °C
Humidity Humidity: 95% Non-Condensing

Who we are?

Bright Alliance based on the continuous development of industrial terminal technology, and independently develops the industrial rugged devices, including Handheld computer and rugged PDA,Rugged tablet,And a variety of accessories can be selected to meet customers' demand for industry, aviation, aerospace, vehicle-mounted, police, education, exploration, fishing animal husbandry, finance and other industries.now our customers are mainly system integrator and solution provider,create new service and usages to the end users.

Now we have 4.0/5.0/6.0/7.0/8.0/10.1/12.2 inch different configuration product for your choice.
