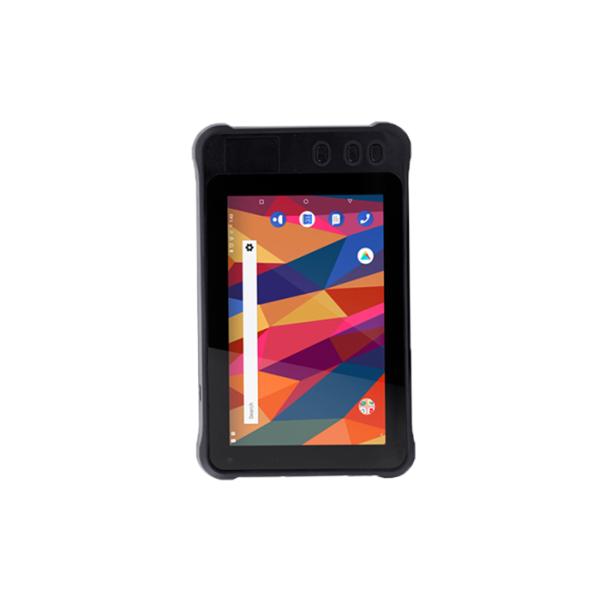

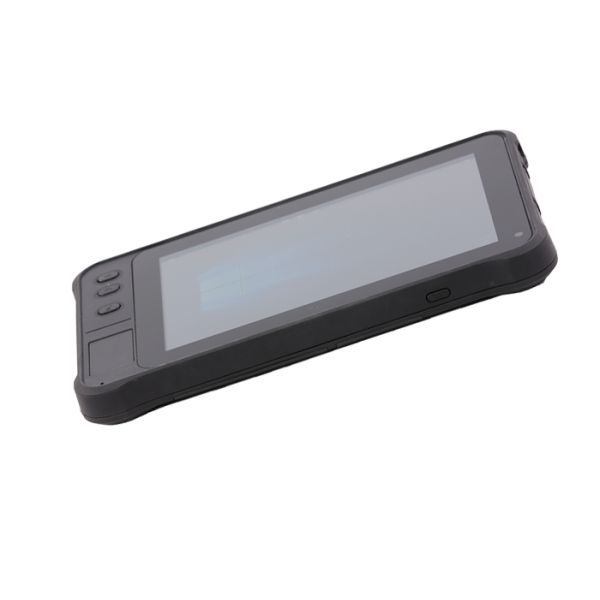

Industrial Grade Rugged Tablet With Barcode Scanner And 7500mAh Battery
Industrial Grade Rugged Tablet With Barcode Scanner And 7500mAh Battery
Industrial Grade Rugged Tablet With Barcode Scanner And 7500mAh Battery
Industrial Grade Rugged Tablet With Barcode Scanner And 7500mAh Battery
Specifications
Brand Name :
BATL
Model Number :
BT75
Certification :
CE/ROHS/IP67
Place of Origin :
Shenzhen , China
MOQ :
1
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
2000 pieces/month
Delivery Time :
5-25 working days
Packaging Details :
Gift box 357*186*60mm,1.4kg/piece, cartoon box 10 pieces/cartoon,635*375*220mm
Type :
Tablet With Barcode Scanner
Display size :
7.0 inch android 8.1
Built in :
1D/2D Barcode Scanner
Memory :
2GB RAM+32GB ROM
Camera :
front 5.0M+rear 13.0M
Dimension :
216.98*133.96*21.4
GPS :
Support GPS/Beidou/glonass
Battery :
7500mAh
Option :
Uhf rfid,NFC reade,Biometric fingerprint
Weight :
680g
Description

Tablet With Barcode Scanner Rugged Tablet With Barcode Industrial Grade Android Tablet BT75

IP67 7 inch Rugged tablet with option modules UHF RFID reader,fingerprint,1D/2D barcode scanner and NFC reader,Android 8.1 OS the model with MTK Quad core CPU,Dual band 2.4/5.8G WIFI,BT 4.0 and 3G/LTE etc wireless data transfer,Corning Gorilla tempered glass touch panel and double injection mould housing to make it MIL-STD-810G standard and shockproof and Meanwhile the model with 5.0M front camera and 13.0M rear one,Built in 7500mah big battery to make it continuously working 10-14 hours,scenario warehouse management and goods tracking,security checking,we also have hand strap to protecting slide from hand and daylight readable 1000nits display it will be better solutions for outdoor use

Product Appearance
Type Details Standard Configuration
Product Form Product Form 7 inch 2 in1 rugged notebook
Dimension 217*134*18.6mm
Weight
Product Color Black (front + rear)
LCD Screen Size 7 inch 16:10
Resolution 800*1280 IPS
Brightness Minimum 1000cd/m2
TP Touch panel 5 points capacity TP,G+G,hardness over 7H, scratch resistant, TP thickness:1.1mm,COF, support touch with wearing gloves and wet finger
Camera Front Front 5.0MP
Rear Rear 13MP ,Auto focus with flash
Speaker Built-in built-in 8Ω/1W Boss speaker x 1
Microphone Built-in Sensitivity: -42db, output impedance 2.2kΩ
Battery(tablet) Type Removable Li-polymer battery
Capacity calculate 3.7V/7500mAh
Endurance nearly 10hours ( 50% volume sounds, Max top brightness, 1080P HD video display by default )
System Hardware Configuration
Type Details Descriptions
CPU Type MTK 8735A quadcore
Speed 1.45GHZ
GPU type ARM ® Cortex-A53
RAM DDR3L 2GB LPDDR3
ROM Emmc 32GB EMMC
Indicator light Built-in Charging indicator light,which is red flash when low power,keeping on red light when power more than 20% , ,keeping on green light when full charged .
L/P-Sensor Built-in Light/Proximity sensors
Compass sensor Built-in Compass sensor
gyroscope Gyroscope Gyroscope
G_sensor Built-in G_sensor
Internet Connections
Type Details Descriptions
WIFI WIFI module WIFI 802.11(ac/a/b/g/n) dual frequency 2.4G+5.8G WIFI
Bluetooth Built-in BT4.0 (BLE) class1.5 Transmission distance :10m
2G/3G/4G Built-in GSM & WCDMA & TD-S(B34,B39) & TDD(B38,B39,B40,B41)& FDD(B1,B2,B3,B4,B5,B7,B8,B 17,B 20)
GPS Built-in MT6630 4in1 chipset,support GPS,BeiDou,Glonass,(GPS+BeiDou by default)
Data collection
Type Details Descriptions
one-dimension barcode optional Honeywell N4313,Optical resolution:5 mil,scan speed:50 times/s,Code system:UPC/EAN, Bookland EAN ,UCC Coupon Code,ISSN EAN,Code 128,Code 93 ,Code 11
Two-dimension barcode optional Honeywell N3680/SE4710/6603,Optical resolution:5 mil,scan speed:50 times/sCode system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse
Maxicode,QR Code,Han Xin Inverse
NFC optional DS_ST21NFCD_V3:
identification distance :2-4cm
RFID optional 1:read ISO14443A UID；
2:read ISO14443A/B,the 2nd generation UID；
3:read ISO14443A/B/15693/Felica；
PS:(Select one from three as above)
ID Module optional support reading the 2nd,the 3rd ID card information and the fingerprint information built-in.
Fingerprint optional the fingerprint module authenticated by Chinese Ministry of public security, support the collection of resident fingerprint which built in their ID card.
UHF optional 1:PR9200,recognition distance:1m~1.5M,TTL port
2:M-550 UHF RFID slim all-in-one module:
I/O Ports
Type Details Descriptions
TF card Extending external storage x1 max:128G
USB port Extending external storage and data exchange MicroUSB 2.0*1 , Android OTG x1
earphone jack audio output ∮3.5mm standard earphone jack x1
DC jack power waterproof DC 5V 3A ∮3.5mm DC jack x1
HDMI port video,audio output HDMI 1.4a Type C x1
Extension interface pogo Pin 12pin Pogo Pin x1( USB + UART + power )
Standard Accessories
Type Details Descriptions
OTG Cable OTG Cable USB OTG turn MICRO USB cable length 45mm
USB Cable USB Cable USB turn micro 5P L=1.2M 4 wires with aluminium foil and shielding
Adapter Standard AC100V ~ 240V,50Hz/60Hz Output DC 5V/3A Europe standard with CE certificate
Software Configuration
Type Details Descriptions
Operation System Operation System
Version		 Android 8.1
Product Certificate
Type Details Descriptions
Certificates System IP67 IPX7
Testing:soaking in short time
Testing equipment:soaking tank.
Testing condition:put the sample into the soaking tank which is filled with water,the distance which is from sample bottom side to water surface,should be more than 1m. The distance which is from sample top side to water surface,should be more than 0.15m.
Testing time: 30 min
CE NB Y
MIL-STD-810G Y
Battery UN38.3,MSDS, Aviation report, Sea transportation report, IEC62133
Reliability
Type Details Descriptions
Product reliability Falling height from 120cm height to wooden floor with booting status
Working temperature ‘-10 °C to 50°C
Storage temperature ’-30 °C to 70 °C
Humidity Humidity: 95% Non-Condensing

Why choose us

1.we have professional sales team and engineers to know what the customers they need

2.Production quality guarantee-verified by mass production of over 100.000 consumer product

3.Strategic support from suppliers and original factory,gain more support of technique and cost due to big shipment quantity

4.Professional after sale teams to solve customers problem quickly

4. Focus on rugged devices over 8 years,familiar with whole process of the rugged case design and production

6.we can provide OEM/ODM for our partners to fulfill their purpose
