Specifications
Brand Name :
BATL
Model Number :
BT89
Certification :
CE/ROHS/IP67
Place of Origin :
Shenzhen , China
MOQ :
1
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
2000 pieces/month
Delivery Time :
5-25 working days
Packaging Details :
Gift box 357*186*60mm,1.4kg/piece, cartoon box 10 pieces/cartoon,635*375*220mm
Type :
rugged tablet ip67
Display size :
8.0 inch android 7.0
Memory :
2GB +16GB or 3GB RAM+32GB ROM
Camera :
front 5.0M+rear 13.0M
Battery :
8000mAh
GPS :
Support GPS/Beidou/glonass
NFC reader :
NXP 548
Option :
rfid reader,barcode scanner
Description

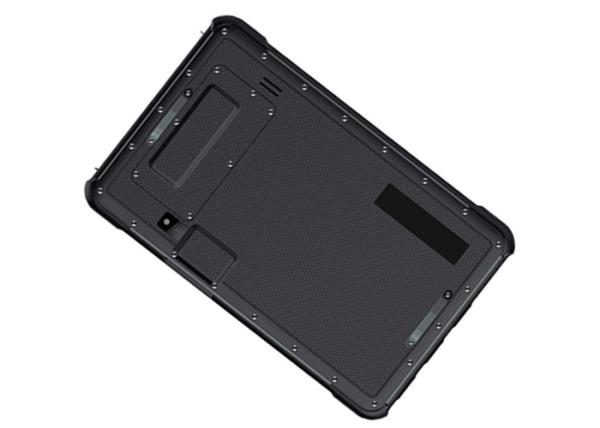

Rugged Tablet IP67 Rugged Android Tablet Industrial 8.0 Inch BT89

8 inch professional android rugged tablet for many fields we use Corning Gorilla tempered glass touch panel and double injection mould housing to make it MIL-STD-810G standard and shockproof and sealed completely to make it waterproof,option modules uhf rfid,lf rfid,nfc reader,barcode scanner,with 5.0M front camera and back 13.0M,8000mah big battery to make it work for whole day,USB port it can support OTG transfer into RJ45 Octa core CPU and Android 7.0 OS,hand strap for better carry,Now our customers they mainly use the devices in animal management,identification for VIP etc

BT89--RUGGED TABLET SPECIFICATION
Model No. BT89
IP Standard IP67 Waterproof/Shockproof
Shockproof 1 meter high drop
Basic CPU MT6753 Quad Core 2.0 GHz
Memory 2GB RAM+16GB ROM or 3GB RAM+32GB ROM
OS Android 7.0
Display 8.0 inch OGS sunlight readable 1280*800
Touch Screen 5 point touch
GSM 850/900/1800/1900MHz
WCDMA 850/1900/2100MHz
LTE FDD B1/B2/B3/B4/B7/B17/B20 TDD B38/B39/B40
Camera 5.0MP Front + 13.0MP Camera with auto focus, Flashlight
WIFI IEEE 802.11a/b/g/n
Bluetooth v4.0 - Low Energy Consumption
GPS Satellite Navigation GPS chip Built-in, Support A-GPS,EPO
Battery 8000mAh
Standby Time 720 hours
Charging Time < 5 hours
Interface(optional) UART-TTL/RS485/SPI/I2C/USB OTG/ADC/GPIO/INT
special functions we can install cusotmer modules inside of tablet for fulfill customers projects
RFID
(Optional)
Ultra High Frequency Built-in 2-8 m for EPC C1 GEN2 / ISO18000-6 - c protocol of 860-960MHZ tag read operation
High frequency 0 - 7 cm range for ISO15693, ISO14443A double deal 13.56 MHz tags for reading and writing
Low frequency 125 K / 134.2 K animal ear tag (Mifare Classic)
NFC (NXP548)
Built in
Frequency 13.56MHz
Baud Rate 9600-115200 bits/s
Support Protocol ISO/IEC 14443A/B/15693
Support Card Mifare One S50/Ultralight/One S70/Pro, Ntag203,
1D Barcode
(Optional)
Module Honeywell N4313
Support Code 39, Code 93, Code 128, Code bar
Read distance 0 cm - 50 cm
Read Speed 104 ± 12 scans/S
First read rate > 99%
Error rate < 0.01%
false reject rate < 0.01%
2D Barcode
(Optional)
Honeywell-6603/Newland 3396 Software decoding - error rate < 0.01%
2D Code PDF417, MicroPDF417, MaxiCode, Data Matrix, QR Code,
1D Code Code 39, Code 128, Codabar, UPC, EAN, Reduced Space Symbology, Code 93, Codablock
Postal Code Postnet (US), Planet Code, BPO 4 State, Canadian Post, Japanese Post, KIX (Netherlands) Post
Active in Close Communication
(Optional)
Active 2.45G Distance is 200m, can be read all at once
433 Can Read more than 200m distance(Adjustablet)
Environment Operating temperature (-20℃) - (50℃)
Storage temperature (-20℃) - (70℃)
Relative humidity 10% - 90%RH
Physical Parameters Weight 670g(including battery)
Size 230*146*20mm

FAQ

Question 1: What kind of services do you support ?


1.We provide you Free SDK and Technical Support

2.We also provide ODM/OEM Customization Services based to your demands.
3.We support 12 months Warranty for all the device and 6 months for the batteries. Extension warranty, it costs 10% at the first year, and 20% for the second year.

Question 2: Are you a manufacturer of rugged devices?

Yes, we have our own R&D team including software and hardware engineers and assembly factory,mainly producing industrial PDA and rugged tablet ,.

Question 3: What's for payment term and delivery term ?


1.It's generally 40%-100% TT in advance for all orders. Meanwhile, Paypal or West Union is acceptable.
2. Exw Shenzhen or FCA HK as Trade Term.

Question 4: How long is the delivery time?


The delivery time of rugged android tablet goods is different from quantities:
for samples, It's about 3-5 working days;
If 100~500 pcs, it's about 10--20 working days;
If More than 500 pcs, It's about 20-30 working days.

Question 5: Who are your customers?


1. Our products have been sold to worldwide,especially market in South/North America, Europe, Asia, Africa Mid-east, etc.
2.The market share is increasing quickly every year and we get more and more positive feedbacks from our customers

Question 6: What's your MOQ?


The MOQ of rugged tablet is 1 piece.

Bright Alliance based on the continuous development of industrial terminal technology and independently develops the industrial rugged devices, including Handheld computer and rugged tablet,And a variety of accessories can be selected to meet customers' demand for industry, aviation, aerospace, vehicle-mounted, police, education, exploration, fishing animal husbandry, finance and other industries.now our customers are mainly system integrator and solution provider,create new service and usages to the end users.
