Specifications
Brand Name :
BATL
Model Number :
BT11
Certification :
CE/ROHS/IP67
Place of Origin :
SHENZHEN,CHINA
MOQ :
1
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
2000 pieces/month
Delivery Time :
5-25 working days
Packaging Details :
Gift box 385*225*64mm,2.05/piece ,cartoon box 10 pieces/cartoon,660*410*260mm,22.2kg
Type :
industrial rugged tablet pc
display size :
10 inch Android 8.1
memory :
2GB RAM+32GB ROM
camera :
front 2.0M+rear 5.0M
battery :
8000 mAh
Navigation :
GPS+GLONASS
data transfer :
3G/LTE
Dimension :
225*143*19mm
Optional :
NFC reader,barcode scanner
optional accessories :
vehicle mount,docking station,stylus
Description

Rugged Tablet Android 10 Inch Rugged Android Tablet Industrial Rugged Tablet Pc IP67 BT11

Rugged android tablet Entry level IP67 and 10 inch Corning Gorilla glass touch panel and double injection mould housing Quad core MTK CPU and Android 8.1 OS 2.0M front camera and 5.0M rear one,2.4G/5.8G Dual band WIFI,BT 4.0 and 2G/3G/LTE etc wireless technology,built in 8000mah big battery to make it continuously working 10-14 hours, And there are HDMI,D.C,Micro USB,Type A etc ports,among them.the USB port it can support OTG and transfer into RS232 and Ethernet,hand strap to protect sliding from hand,briefcase strap to hands free,Docking station for better charging and with Type A USB transfer into Ethernet port.vehicle mount with RS232 port,the scenario warehouse management and some install their own Apps to control special projects or as one part of the whole system.

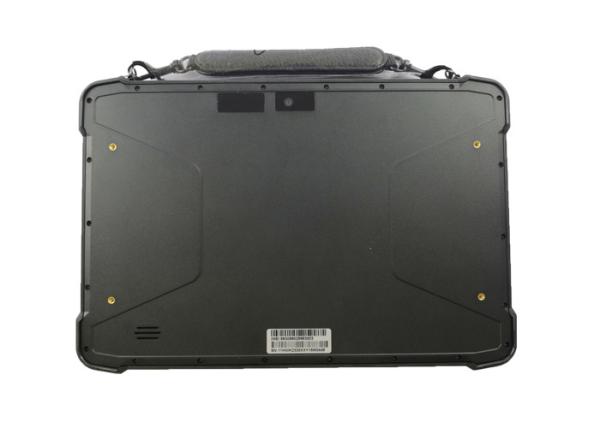

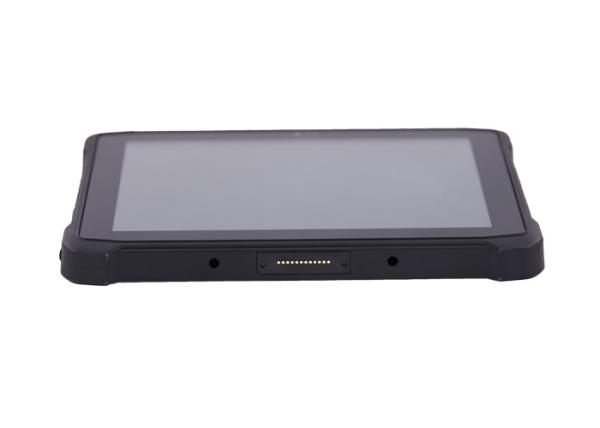

Product Outlook
Type Details Standard Configuration
Product Form Type Rugged Tablet
Dimension 280*187*22mm
Weight Device unit: 1014g
Unit with giftbox and standard accessories:1990g
Docking:290g,10000mAh battery:250g
Device Color Black(frant and rear Panel: black,Decorate board:black)
LCD Screen Size 10 inch 16:10
Resolution 800 (RGB)*1280
Brightness 250 cd/m2
TP Touch Panel 10 points Capacitive,G+G,Rigidity: above 7H-Anti-scratch,TP thickness:1.1mm,COF
Camera Front Front:2.0MP with chargeing indicator light
Rear Rear: 5.0MP
Speaker Built-in Embedded 8Ω/0.8W waterproof speaker x 1
Mic Built-in Sensitivity:-42db, output resistance:2.2kΩ
Battery Type Lithium-ion polymer battery
Capacity 3.7V/8000mAh
Endurance 8hrs(default 50% volumn,default200nit,play 1080P HD video)
System Hardware Configuration
Type Details Description
CPU Type MTK 8735A
Speed 1.45GHZ
GPU Type ARM ® Cortex-A53
RAM DDR3L 2GB
ROM Emmc 32GB
Light sensor Built-in Light sensor
Electronic compass Built-in electronic compass
Gyroscope Built-in gyroscope
G_sensor Built-in Gravity acceleration sensor
Network Connections
Type Details Descriptions
WIFI WIFI module WIFI 802.11(a/b/g/n) frequency 2.4G+5.8G dual band WIFI,
Bluetooth Built-in BT4.0 (BLE) class1.5 transmission distance:10m
2G/3G/4G Built-in FDD(B1,B2,B3,B4,B5,B7,B8,B 17,B 20)
NFC option NXP NFC 13.56MHz support SO/IEC 14443A/14443B/15693/18092/mifare protocol, Card reading distance: 4cm
Barcode scanner option Moto 4710 Optical Resolution:1280*800;5mil Scan speed:50/s Symbol system:PDF417, MicroPDF417,
GPS Built-in MTK6625 4 in one,GPS+GLONASS
Interface Configuration
Type Details Descriptions
TF slot Extensive External Memory support SDHC/SDXC x1 max: 128G
SIM slot SIM card SIM card x1
USB interface data transmission USB 2.0*1 (Host)for windows Android OTG x1
Earphone Jack Audio Output ∮3.5mm standard earphone jack x1
DC Jack Power DC 5V 3A ∮3.5mm Power connector x1
HDMI interface Video Output HDMI 1.4a Type C x1
Extensive Slot pogo Pin 12pin Pogo Pin x1
Power on press key power key x1
Volume + - press key power key x1,Volume + - x2
Standard Accessories
Type Details Description
OTG cable OTG cable USB OTG to MICRO USB cable length:45mm
USB cable USB cable USB to micro 5P L=1.2M 4core aluminum foil shield cable
Power Adaptor Standard AC100V ~ 240V, 50Hz/60Hz output DC 5V/3A USA Standard CE approval
Optional Accessories
vehicle mount vehicle mount vehicle mount with charging/data transfer or USB transfer into RJ45
docking station docking station docking station for charging and RJ45
stylus stylus stylus
Software Configuration
Type Details Description
Operation System OS version Android 8.1
Reliability
Type Details Descriptions
Product Reliability Drop Height 1.2m composite wood floors, in operation status
Operate Temperature ‘-10 °C to 50 °C (-20 °C to 60 °C optional)
Store Temperature ’-30 °C to 70 °C
Humidity Humidity: 95% Non-Condensing

Import taxes:
When you import products from another country, there is always the possibility of paying import taxes. We can help you reduce and avoid import taxes by declaring prices low, declaring the contents as "electronic accessories" or other items and shipping in simple packaging.

Our Quality:

Quality is the life of Honesty. We use only the best quality (original) components to ensure the standard of our product range is of the highest caliber.
All products we sold out are strictly selected and tested by our QC department.
Payment:
We accept payment via Bank transfer,Western Union.
We accept bank transfer for large orders. For small order, you'd better pay via Western union or paypal

Shipping:
We offer as many shipping options as possible, including DHL, UPS,FedEx and EMS, Air freight

Warranty:
All electronic products (included brand ones) may have problem after used by a period of time. We provide 1 year warranty for all products. Please contact us if you need our detail warranty term.
