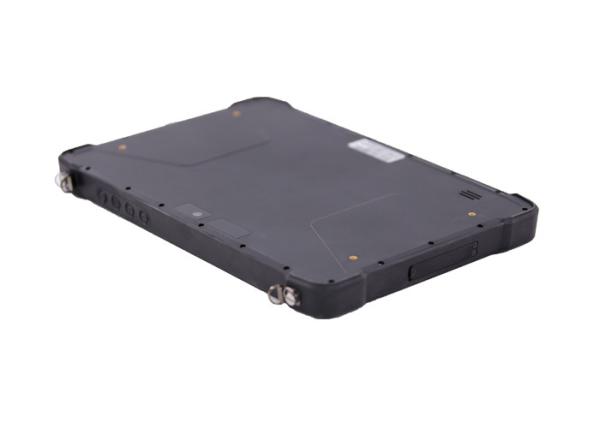

10.1 Inch Rugged Android Tablet , BT11 Industrial Grade Tablet Pc
10.1 Inch Rugged Android Tablet , BT11 Industrial Grade Tablet Pc
10.1 Inch Rugged Android Tablet , BT11 Industrial Grade Tablet Pc
10.1 Inch Rugged Android Tablet , BT11 Industrial Grade Tablet Pc
Specifications
Brand Name :
BATL
Model Number :
BT11
Certification :
CE/ROHS/IP67
Place of Origin :
SHENZHEN,CHINA
MOQ :
1
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
2000 pieces/month
Delivery Time :
5-25 working days
Packaging Details :
Gift box 385*225*64mm,2.05/piece ,cartoon box 10 pieces/cartoon,660*410*260mm,22.2kg
Type :
ruggedized android tablet
display size :
10.1 inch Android 8.1
memory :
2GB RAM+32GB ROM
camera :
front 2.0M+rear 5.0M
battery :
8000 mAh
Navigation :
GPS+GLONASS
data transfer :
3G/LTE
Dimension :
225*143*19mm
Optional :
NFC reader,barcode scanner
optional accessories :
vehicle mount,docking station,stylus
Description

Ruggedized Android Tablet Rugged Android Tablet Tough Tablet Pc 10.1 Inch IP67 BT11

Dual band WIFI,BT 4.0,2G/3G/LTE data transfer

Front 2.0M/Back 5.0M camera

8000mah big battery continuously working 10-12 hours

IP67 10.1 inch 250 nits brightness display for outdoor use

MTK Quad core Android 8.1 o.s

Corning tempered glass and Double injection mould housing for better shockproof

Big memory 2GB RAM and 32GB ROM

GPS and GLOANSS double satellite

Optional Barcode scanner/cradle/vehicle mounted etc

Standard accessories charger,USB cable,hand strap etc

Details

Product Outlook
Type Details Standard Configuration
Product Form Type Rugged Tablet
Dimension 280*187*22mm
Weight Device unit: 1014g
Unit with giftbox and standard accessories:1990g
Docking:290g,10000mAh battery:250g
Device Color Black(frant and rear Panel: black,Decorate board:black)
LCD Screen Size 10.1 inch 16:10
Resolution 800 (RGB)*1280
Brightness 250 cd/m2
TP Touch Panel 10 points Capacitive,G+G,Rigidity: above 7H-Anti-scratch,TP thickness:1.1mm,COF
Camera Front Front:2.0MP with chargeing indicator light
Rear Rear: 5.0MP
Speaker Built-in Embedded 8Ω/0.8W waterproof speaker x 1
Mic Built-in Sensitivity:-42db, output resistance:2.2kΩ
Battery Type Lithium-ion polymer battery , pluggable, dimension: 21.8*92.3*9.5mm
Capacity 3.7V/8000mAh
Endurance 8hrs(default 50% volumn,default200nit,play 1080P HD video)
System Hardware Configuration
Type Details Description
CPU Type MTK 8735A
Speed 1.45GHZ
GPU Type ARM ® Cortex-A53
RAM DDR3L 2GB
ROM Emmc 32GB
Light sensor Built-in Light sensor
Electronic compass Built-in electronic compass
Gyroscope Built-in gyroscope
G_sensor Built-in Gravity acceleration sensor
Network Connections
Type Details Descriptions
WIFI WIFI module WIFI 802.11(a/b/g/n) frequency 2.4G+5.8G dual band WIFI,
Bluetooth Built-in BT4.0 (BLE) class1.5 transmission distance:10m
2G/3G/4G Built-in GSM/WCDMA Quad band,TD-SCDMA(B34,B39) & TDD(B38,B39,B40,B41)& FDD(B1,B2,B3,B4,B5,B7,B8,B 17,B 20)
NFC option NXP NFC 13.56MHz support SO/IEC 14443A/14443B/15693/18092/mifare protocol, Card reading distance: 4cm
Barcode scanner option Moto 4710 Optical Resolution:1280*800；5mil Scan speed:50/s Symbol system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse
Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse
GPS Built-in MTK6625 4 in one,GPS+GLONASS
Interface Configuration
Type Details Descriptions
TF slot Extensive External Memory support SDHC/SDXC x1 max: 128G
SIM slot SIM card SIM card x1
USB interface data transmission USB 2.0*1 (Host)for windows Android OTG x1
Earphone Jack Audio Output ∮3.5mm standard earphone jack x1
DC Jack Power DC 5V 3A ∮3.5mm Power connector x1
HDMI interface Video Output HDMI 1.4a Type C x1
Extensive Slot pogo Pin 12pin Pogo Pin x1
Power on press key power key x1
Volume + - press key power key x1,Volume + - x2
Standard Accessories
Type Details Description
OTG cable OTG cable USB OTG to MICRO USB cable length:45mm
USB cable USB cable USB to micro 5P L=1.2M 4core aluminum foil shield cable
Power Adaptor Standard AC100V ~ 240V, 50Hz/60Hz output DC 5V/3A USA Standard CE approval
Optional Accessories
vehicle mount vehicle mount vehicle mount with charging/data transfer or USB transfer into RJ45
docking station docking station docking station for charging and RJ45
stylus stylus stylus
Software Configuration
Type Details Description
Operation System OS version Android 8.1
Reliability
Type Details Descriptions
Product Reliability Drop Height 1.2m composite wood floors, in operation status
Operate Temperature ‘-10 °C to 50 °C (-20 °C to 60 °C optional)
Store Temperature ’-30 °C to 70 °C
Humidity Humidity: 95% Non-Condensing

Bright Alliance Services

We focus on rugged tablet and handheld pda over 8 years.

We can support completely Free SDK and technical support for you.

ODM/OEM customization services according to your requirements.

12 months warranty for your devices and other parts. and 6 months for the batteries. Free maintenance of the devices and part of accessories replacement in the warranty .if out of the warranty, you'll have to pay the basic cost for them.

And experienced sales have better communication to get what you need and save your time

FAQ

Q: Are you a manufacturer of rugged devices?

Yes, we have our own R&D team including software and hardware engineers and assembly factory,mainly producing industrial PDA and rugged tablet ,.

Q:how many pcs we have sold one year.

A:we sold 30000 pcs one year

Q: How can I pay for the order?

A: Our payment terms: T/T, Western Union, Paypal, Credit card

1) For sample order: 100% T/T or Western Union in advance, Paypal is also acceptable.

2) For bulk order: 40%deposit T/T in advance, balance clear before pick up or shipment.
