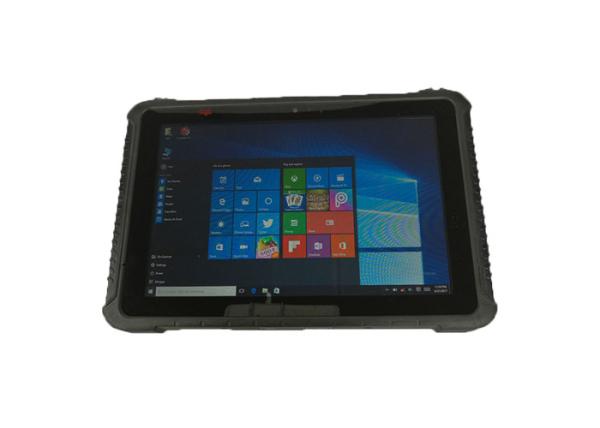

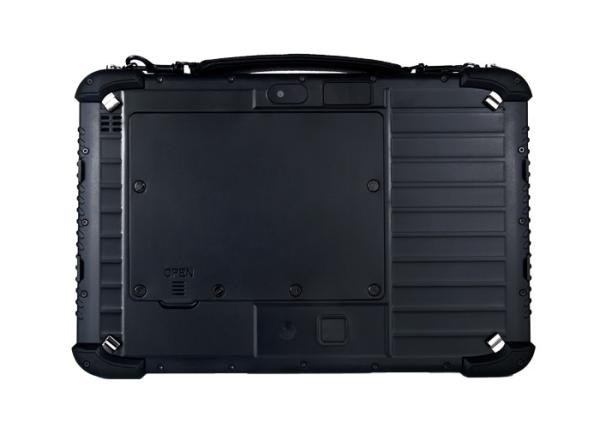

Windows Rugged Tablet Rugged Windows Tablet Rugged Tablet 10 Inch BT616
Windows Rugged Tablet Rugged Windows Tablet Rugged Tablet 10 Inch BT616
Windows Rugged Tablet Rugged Windows Tablet Rugged Tablet 10 Inch BT616
Windows Rugged Tablet Rugged Windows Tablet Rugged Tablet 10 Inch BT616
Specifications
Brand Name :
BATL
Model Number :
BT616
Certification :
CE/ROSH/IP65
Place of Origin :
Shenzhen , China
MOQ :
1
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
2000 pieces/month
Delivery Time :
5-25 working days
Packaging Details :
Gift box 385*225*64mm,2.05/piece ,cartoon box 10 pieces/cartoon,660*410*260mm,22.2kg
Type :
Windows Rugged Tablet
Display size :
10.1 inch
OS :
windows 10 home or windows 10 Pro
Memory :
4GB RAM+64GB ROM
Navigation :
GPS+GLONASS
optional :
vehicle mount,docking station
data transfer :
3G/LTE
camera :
front 2.0 M+ rear 5.0 M
Battery :
10000mAh
Optional :
NFC reader,barcode scanner,biometric fingerprint
Description

Windows Rugged Tablet Rugged Windows Tablet Rugged Tablet 10 Inch BT616

we use Corning Gorilla tempered glass touch panel and double injection mould housing to make it MIL-STD-810G standard and shockproof and sealed completely to make it IP65 water resistant,option modules 1D/2D Barcode scanner,with 2.0M front camera and back 5.0M,1000mah big battery to make it work for whole day,there are Type A,micro USB and RS232 ports etc,Quad core CPU and windows 10 Home or Pro etc OS,hand strap to free hands,Docking station for better charging and vehicle mount for fleet management,Now our customers they mainly use the devices in fleet management and install customization apps for special use and car diagnose etc and with 4GB+64GB+LTE rugged windows tablet.

Product Outlook
Type Details Standard Configuration
Product Form Type Rugged Tablet
Dimension 280*187*22mm
Weight Device unit: 1014g
Unit with giftbox and standard accessories:1990g
Docking:290g,10000mAh battery:250g
Device Color Black(frant and rear Panel: black,Decorate board:black)
LCD Screen Size 10.1 inch 16:10,800 (RGB)*1280,320 nits
TP Touch Panel 10 points Capacitive,G+G,Rigidity: above 7H-Anti-scratch,TP thickness:1.1mm,COF
Camera Front Front:2.0MP with chargeing indicator light,Rear: 5.0MP
Speaker Built-in Embedded 8Ω/0.8W waterproof speaker x 1
Mic Sensitivity:-42db, output resistance:2.2kΩ
Battery Type Lithium-ion polymer battery , pluggable, dimension: 21.8*92.3*9.5mm,3.7V/10000mAh
Endurance 8hrs(default 50% volumn,default200nit,play 1080P HD video)
System Hardware Configuration
Type Details Description
CPU Type Intel cherry Trail Z8350
Speed 1.33Ghz-1.92GHz
GPU Type Intel HD Graphic(Gen7)
RAM DDR3L 4GB
ROM Emmc 64GB,Option 128GB
G_sensor Built-in Gravity acceleration sensor
Network Connections
Type Details Descriptions
WIFI WIFI Module WIFI 802.11(a/b/g/n) Frequency 2.4G+5.8G dual band WIFI,
Bluetooth Built-in BT4.2 (BLE) class1.5 transmission distance:10m
3G Built-in IC:H350-A30 WCDMA(900/2100MHz)HSDPA 7.2Mbps,HSUPA 5.76Mbps
4G Built-in European/USA/Latin America bands
GPS Built-in Support :GLONASS,QZSS,GPS; Capture sensitivity: -160 dBm；Cool Start Time:<30second,Hot start time:<28seconds,frequency:0.25 Hz … 10 MHz (configurable)
NFC Optional NXP NFC 13.56MHz Support ISO/IEC 14443A/14443B/15693/18092/mifare protocol,Card reading distance:4cm
Data Collection
Type Details Description
Fingerprint Optional S22A(FPC1020 Sensor, capacitance pressure type) 120MHz basic frequency,1M Bits Flash Memory,128KB SRAM,Process speed: fingerprint recognized time< 0.45 seconds
1D Barcode scanner Optional MOTO SE655E100R Optical Position: 5mil Scan speed: 50/s Symbol system:UPC/EAN, Bookland EAN ,UCC Coupon Code,ISSN EAN,Code 128,GS1-128,ISBT 128,Code 39
2D Barcode Scanner Optional Honeywell N3680 Hardware decoder,Optical Resolution:1280*800；5mil,Scan speed:50/s,Symbol system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse
Maxicode,QR Code, etc
Interface Configuration
Type Details Descriptions
TF slot Extensive External Memory Support SDHC/SDXC x1 max:128G
USB Interface Extend external memory and data transfer USB 2.0*1 (Host)for windows Android OTG x1
Earphone Jack Audio Output ∮3.5mm standard earphone jack x1
DC Jack Power DC 5V 3A ∮3.5mm Power connector x1
HDMI Video Output HDMI 1.4a Type C x1
Extensive Slot pogo Pin 12pin Pogo Pin x1
DB9 PORT Serial port *1 (RS232) TTL electrical level
RJ45 PORT internet port *1(10/100 self-adaption)
Air outlet Optional *1( build in small board for customer customized )
TLU1HPO2H0709J-50( tong mao Plug)
LU1HR04H0709K(tong mao Plug)
Standard Accessories
Type Details Description
OTG Cable OTG Cable USB OTG to MICRO USB cable length:45mm
USB Cable USB Cable USB to micro 5P L=1.2M 4core aluminum foil shield cable
Power Adaptor Standard AC100V ~ 240V,50Hz/60Hz output DC 5V/3A USA Standard CE approval
Software Configuration
Type Details Description
Operation System OS version windows 10 Home Default language:English,optional Windows 10 Pro,Windows 10 IOT
Reliability
Type Details Descriptions
Product Reliability Drop Height 100cm composite wood floors, in operation status
Operate Temperature ‘-10 °C to 50 °C (-20 °C to 60 °C optional)
Store Temperature ’-30 °C to 70 °C
Humidity Humidity: 95% Non-Condensing

FAQ

Question 1: What's the model o.s?

Now we have Windows 10 Home,Windows 10 Pro,and Windows 10 IOT

Question 2: Who are your customers?

1. Our products have been sold to worldwide,especially market in South/North America, Europe, Asia, Africa Mid-east, etc.
2.The market share is increasing quickly every year and we get more and more positive feedbacks from our customers

Question 3: What's your MOQ?

The MOQ of rugged tablet is 1 piece.

Question 4: How long is the delivery time?

The delivery time of rugged android tablet goods is different from quantities:
for samples, It's about 3-5 working days;
If 100~500 pcs, it's about 10--20 working days;
If More than 500 pcs, It's about 20-30 working days.

Question 5: Are you a manufacturer of rugged devices?

Yes, we have our own R&D team including software and hardware engineers and assembly factory,mainly producing industrial PDA and rugged tablet ,.
