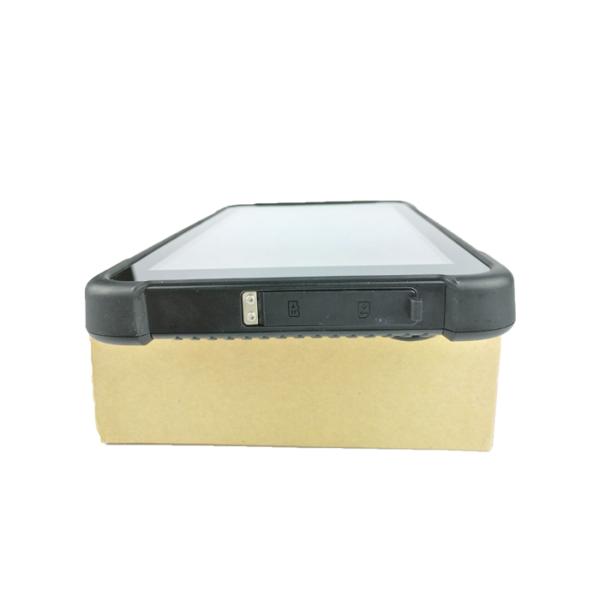

8 Inch Rugged Windows Tablet , Microsoft Rugged Tablet Water Resistant BT686
8 Inch Rugged Windows Tablet , Microsoft Rugged Tablet Water Resistant BT686
8 Inch Rugged Windows Tablet , Microsoft Rugged Tablet Water Resistant BT686
8 Inch Rugged Windows Tablet , Microsoft Rugged Tablet Water Resistant BT686
Specifications
Brand Name :
BATL
Model Number :
BT686
Certification :
CE/ROHS/IP67
Place of Origin :
SHENZHEN,CHINA
MOQ :
1
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
2000 pieces/month
Delivery Time :
5-25 working days
Packaging Details :
Gift box 357*186*60mm,1.4kg/piece, cartoon box 10 pieces/cartoon,635*375*220mm
Type :
rugged tablet 8 inch
display size :
8.0 inch windows 10
camera :
front 2.0M+rear 5.0M
battery :
8500 mAh
memory :
4GB RAM+64GB ROM
Navigation :
GPS+GLONASS
data transfer :
3G/LTE
optional accessories :
vehicle mount,docking station,stylus
Dimension :
225*143*19mm
Barcode scanner :
Honeywell N3680
Description

Rugged Tablet 8 Inch Rugged Windows Tablet Microsoft Rugged Tablet BT686

IP67 8 inch Rugged windows tablet with option modules 1D/2D barcode scanner and NFC reader,windows 10 Home or Windows 10 Pro,the model with Intel Cherry trail Quad-core CPU,Dual band 2.4/5.8G WIFI,BT 4.0 and 3G/LTE etc wireless data transfer,Corning Gorilla tempered glass touch panel and double injection mould housing to make it MIL-STD-810G standard and shockproof and sealed completely to make it IP67,and Meanwhile the model with 2.0M front camera and 5.0M rear one,removable 8500mah big battery to make it continuously working 10-14 hours,HDMI,D.C,Micro USB,Type A etc ports,Docking station for better charging and vehicle mount fixing tools and charging on the vehicle,Now our customers they mainly use the devices in fleet management and car diagnosis and some install their own Application to control special projects as a mobile computer

Product Outlook
Type Details Standard Configuration
Product Form Type Rugged Tablet
Dimension 225*143*19mm
Weight Device unit: 0.558kg ,Unit with giftbox and standard accessories:1330g,docking:290g
Device Color black
LCD Screen Size 8“ 16:10
Resolution 800*1280 IPS
Brightness 320 Nit
TP Touch Panel Multipoints Capacitive,G+G,Rigidity: above 7H-Anti-scratch,TP thickness:1.1mm,COF,support handwriting
Camera Front Front: 2.0MP with indicator light
Rear Rear: 5.0MP
Speaker Built-in Embedded 8Ω/0.8W waterproof speakerx 1
Mic Built-in Sensitivity:-42db, output resistance2.2kΩ
Battery Type Build in Polymer li-ion battery
Capacity 3.7V/8500mAh
Endurance 8Hrs(default 50% volumn,default200 lumens brightness,play 1080P HD video)
System Hardware Configuration
Type Details Description
CPU Type Intel Cherrytrail Z8350/Z8300 or Baytrail Z3735F
Speed 1.33Ghz-1.92GHz
GPU Type Intel HD Graphic(Gen7)
RAM DDR3L 4GB
ROM Emmc 64GB
Electronic compass Built-in electronic compass
Gyroscope Built-in gyroscope
G_sensor Built-in Gravity acceleration sensor
Network Connections
Type Details Descriptions
WIFI WIFI module WIFI 802.11(a/b/g/n) frequency 2.4G+5.8G dual band WIFI,
Bluetooth Built-in BT4.2 (BLE) class1.5 transmission distance:10m
3G Built-in IC:H350-A30-20 bands: WCDMA(900/2100MHz) GSM(900/1800MHz), HSDPA 7.2Mbps, HSUPA 5.7Mbps, LGA interface
LTE Built-in European version/South American/North American version etc
1D/2D Barcode option 2D QR code Scanner: MOTO SE2707 Hardware decoder,Scan Speed: 50 times/s,Optical resolution: 5mil
Support code system: PDF417, MicroPDF417, Aztec, Aztec Inverses, Han Xin, Han Xin Inverse.
NFC option NXP NFC 13.56MHz support SO/IEC 14443A/14443B/15693/18092/mifare protocol, Card reading distance: 4cm
GPS Built-in U-blox NEO-7, support : GLONASS,QZSS,GPS; Capture sensitivity: -160 dBm; Cool Start Time: <30 seconds, Hot start time: <28 seconds, frequency: 0.25 Hz … 10 MHz
Interface Configuration
Type Details Descriptions
TF slot Extensive External Memory support SDHC/SDXC x1 max: 128G
SIM slot SIM card SIM card x1
USB interface data transmission USB 2.0*1 (Host)for windows Android OTG x1
Earphone Jack Audio Output ∮3.5mm standard earphone jack x1
DC Jack Power DC 5V 3A ∮3.5mm Power connector x1
HDMI interface Video Output HDMI 1.4a Type C x1
Extensive Slot pogo Pin 12pin Pogo Pin x1
Power on press key power key x1
Volume + - press key power key x1,Volume + - x2
Standard Accessories
Type Details Description
OTG cable OTG cable USB OTG to MICRO USB cable length:45mm
USB cable USB cable USB to micro 5P L=1.2M 4core aluminum foil shield cable
Power Adaptor Standard AC100V ~ 240V, 50Hz/60Hz output DC 5V/3A USA Standard CE approval
Software Configuration
Type Details Description
Operation System OS version windows 10 HOME Default language: English or Android 5.1
Windows 10 Pro optional
Product Certificate
Type Details Description
Certificate System IP67 IPX7
Method name:short time submerging test
test device and test condition:submerge water box.the size should make the testing sample into submerge box and after then , the distance from sample bottom to water surface at least 1m. and distance from sample top side to water surface at least 0.15m.
Testing time: 30 min
CE YES
810G YES
Battery UN38.3, MSDS, IEC62133
Reliability
Type Details Descriptions
Product Reliability Drop Height 1.2m composite wood floors, in operation status
Operate Temperature ‘-10 °C to 50 °C (-20 °C to 60 °C optional)
Store Temperature ’-30 °C to 70 °C
Humidity Humidity: 95% Non-Condensing

Why choose us

1. Satisfied Service

Before-Sale Service------quick response within ONE working day; experienced sales to know better customers requirements

On-Sale Service---------- delivery on time; quality and quantity assured

After-Sale Service--------One year warranty period; technology support during your project.

Free SDK fro secondary development

2. Experienced

More than 8 years experience in Hardware IOT Platform

R&D and oversea sales, we know how to communicate with our partners to get what they need

3. High Quality Products

IP65/IP67/CE/FCC

100% Strictly QC Before Delivery !

4.Normally we have each model 300-500 pieces in stock.so we can support fast delivery
