RFID Handheld Terminal Handheld RFID Reader Rugged PDA Android 5.0 Inch BH95
RFID Handheld Terminal Handheld RFID Reader Rugged PDA Android 5.0 Inch BH95
RFID Handheld Terminal Handheld RFID Reader Rugged PDA Android 5.0 Inch BH95
RFID Handheld Terminal Handheld RFID Reader Rugged PDA Android 5.0 Inch BH95
Specifications
Brand Name :
BATL
Model Number :
BH95
Certification :
CE/ROHS/IP65
Place of Origin :
Shenzhen , China
MOQ :
1
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
2000 pieces/month
Delivery Time :
5-25 working days
Packaging Details :
Gift box 183*104*65mm,515g/piece, cartoon box 20 pieces/cartoon,535*283*215mm,11.05kg/cartoon
type :
RFID Handheld Terminal
Display size :
5.0 inch
Memory :
2GB RAM+16GB ROM
OS :
Android 7.0
Camera :
rear 8.0M
Navigation :
GPS,accuracy of 5 m
Battery :
4500mAh
Option :
docking station,bags
Description

RFID Handheld Terminal Handheld RFID Reader Rugged PDA Android 5.0 Inch BH95

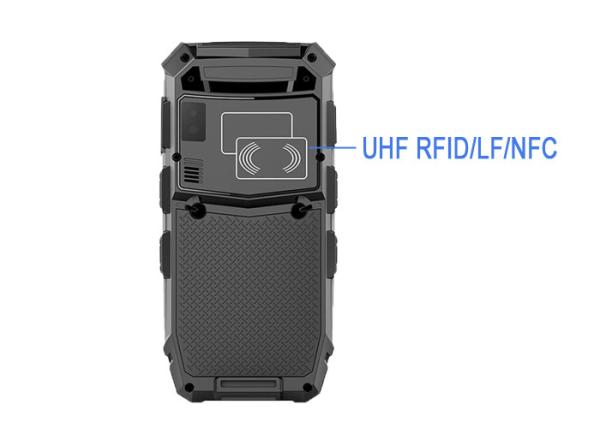

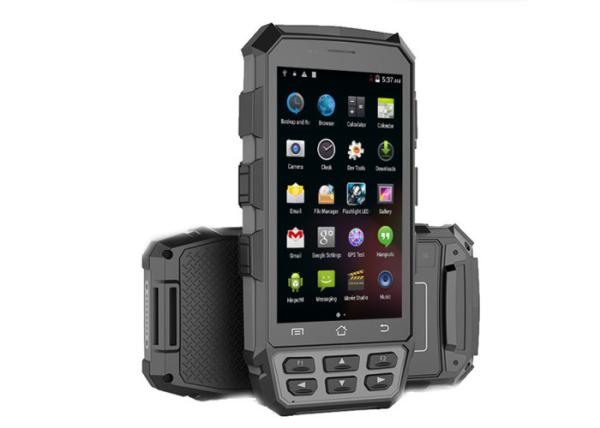

5.0 inch IP65 handheld RFID reader with long range UHF RFID reader,built in UHF RFID Reader,NFC reader,Barcode scanner,fingerprint etc,Corning Gorilla glass touch panel and double injection mould housing sealed completely for better protection,MTK Quad core CPU and Android 7.0 OS,2.4/5.8G WIFI,BT 4.0 and 2G/3G/LTE for data transfer,with 8.0M rear camera ,the most important with 4500mah big battery for long time working,for the memory,And we also have hand strap as standard accessories,Now our customers they mainly use the devices to warehouse management,goods tracking etc

Physical Parameters Weight 370g(including battery and wrist strap
Size 170mm(H)x85mm(W)x23mm(D)±2 mm
Basic CPU Quad A53 1.3GHz quad-core
Memory 2GB+16GB
OS Android 7.0
Display Gorilla Glass 3, 5.0 inch, TFT-LCD, 1280x720
Touch Screen 5 point capacitive touch screen backlight
WWAN TDD-LTE B38/B39/B40/B41 FDD-LTE B1/B2/B3/B4/B7/B17/B20
WCDMA 850/1900/2100MHz GSM 850/900/1800/1900MHz
Camera 8.0MP Camera, Auto-focus with LED flash
WIFI 2.4GHz/5.8GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac
Bluetooth Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.0
GPS GPS(embedded A-GPS), accuracy of 5 m
Battery Rechargeable li-ion polymer, 3.7V, 4500mAh
Optional Modules
RFID
(Optional)		 Ultra High frequency 1-1.5 m distance for EPC C1 GEN2/ISO 18000-6C protocol of 865~868MHz or 920~925MHz tag reading, Circular antenna(2dBi)
High frequency 2-8 cm range for ISO15693, ISO14443A double deal 13.56 MHz tags for reading and writing
PSAM Support two PSAM card
Low frequency 125KHz/134.2KHz, ISO 11784&11785, reading range up to 2-10cm
Active in Close Communication
(Optional)		 Active 2.45G Reading range more than 200 m
433MHz Reading range more than 200m
1D Barcode
(Optional)		 Module 1D Laser Engine Symbol SE955
Support All major 1D barcodes, Code 39, Code 93, Code 128, Code bar, EAN-13, EAN-8, UPC-A, UPC-E, ITF 14, UCC/EAN-128, ITF 25, Matrix 25, EAN-128, ISBN, ect.
2D Barcode
(Optional)		 Module Newland 3396 or Honeywell 6603
Support PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, Dutch Postal. etc.
Fingerprint
(Optional)		 Sensor types TCS1CT, Capacitive, area sensor 508 DPI or FBI certification fingerprint
Performance FRR<0.008%, FAR<0.005%
Capacity 1000
PSAM SECURITY(OPTIONAL) Protocol ISO 7816
Baudrate 9600, 19200, 38400,43000, 56000, 57600, 115200
Slot 2 slots(maximum)
Development Environment
SDK HHW Software Development Kit
Language Java
Environment Android Studio or Eclipse
Accessories
Accessories Standard 1xPower Supply; 1xLithium Polymer Battery; 1xDC charging cable; 1xUSB data cable
Optional Carrying case; Cradle
Other features
Environment Operating temperature (-20℃) - (50℃)
Storage temperature (-20℃) - (70℃)
Relative humidity 5%RH to 95%RH
ESD ±15kv air discharge, ±8kv direct discharge

Bright Alliance based on the continuous development of industrial terminal technology, and independently develops the industrial rugged devices, including Handheld computer and rugged tablet for many outdoor fileds or industrial fileds,And a variety of accessories can be selected to meet customers' demand for industry, aviation, aerospace, vehicle-mounted, police, education, exploration, fishing animal husbandry, finance and other industries.now our customers are mainly system integrator and solution provider,create new service and usages to the end users

Now we mainly sell to European/USA/South America/Middle east etc

Keep moving for cooperation with more partners

FAQ:

Question 1: What's your MOQ?

The MOQ of rugged tablet is 1 piece.

Question 2: What's for payment term and delivery term ?

1.It's generally 40%-100% TT in advance for all orders. Meanwhile, Paypal or West Union is acceptable.
2. Exw Shenzhen or FCA HK as Trade Term.

Question 3: how many modules can be in one devices?

For BH95,normally we can add 3-4 modules,but better within 3 modules.for example

2D+UHF,2D+Barcode scanner,UHF+Fingerprint etc
