UHF RFID Handheld Reader Rugged With Fingerprint / 1D 2D Barcode Scanner And NFC Reader
UHF RFID Handheld Reader Rugged With Fingerprint / 1D 2D Barcode Scanner And NFC Reader
UHF RFID Handheld Reader Rugged With Fingerprint / 1D 2D Barcode Scanner And NFC Reader
UHF RFID Handheld Reader Rugged With Fingerprint / 1D 2D Barcode Scanner And NFC Reader
Specifications
Brand Name :
BATL
Model Number :
BH95
Certification :
CE/ROHS/IP65
Place of Origin :
Shenzhen , China
MOQ :
1
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
2000 pieces/month
Delivery Time :
5-25 working days
Packaging Details :
Gift box 183*104*65mm,515g/piece, cartoon box 20 pieces/cartoon,535*283*215mm,11.05kg/cartoon
Type :
UHF RFID Reader
Display size :
5.0 inch
Memory :
2GB RAM+16GB ROM
OS :
Android 7.0
Navigation :
GPS,accuracy of 5 m
Camera :
rear 8.0M
Battery :
4500mAh
Option :
docking station,bags
Description

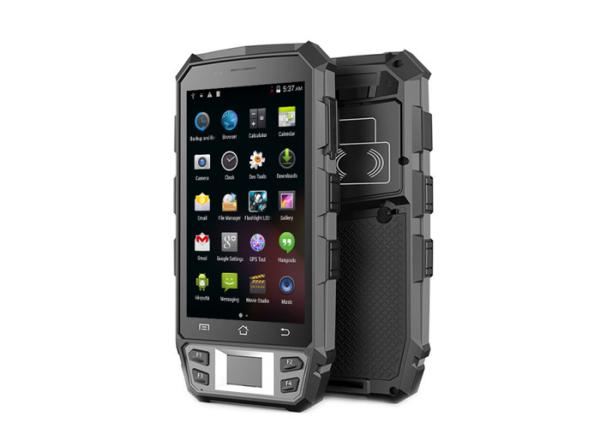

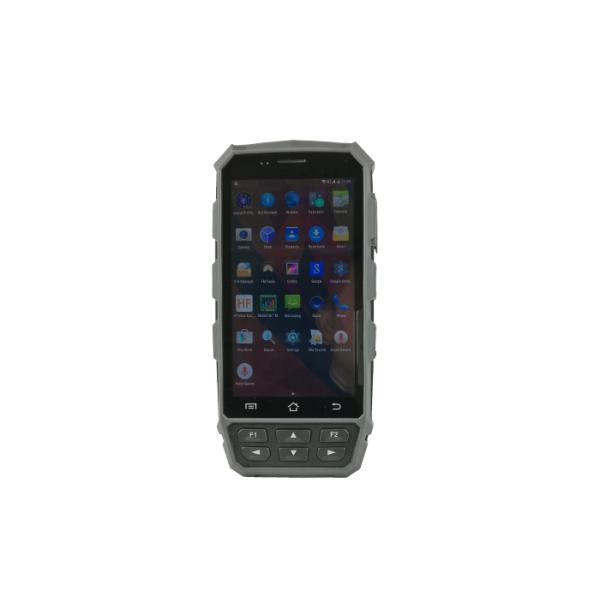

UHF RFID Reader Handheld RFID Reader Rugged Handheld 5.0 Inch BH95

IP65 5 inch UHF RFID handheld reader with option modules UHF RFID reader,long range uhf rfid reader,fingerprint,1D/2D barcode scanner and NFC reader,Android 7.0 OS the model with MTK Quad core CPU,Dual band 2.4/5.8G WIFI,BT 4.0 and 3G/LTE etc wireless data transfer,Corning Gorilla tempered glass touch panel and double injection mould housing to make it MIL-STD-810G standard and shockproof and Meanwhile the model 8.0M rear camera,Built in 4500mah big battery to make it continuously working 10-14 hours,scenario warehouse management and goods tracking,security checking,we also have hand strap to protecting slide from hand

Physical Parameters Weight 370g(including battery and wrist strap
Size 170mm*85mm*23mm ±2 mm
Basic CPU Quad A53 1.3GHz quad-core
Memory 2GB+16GB
OS Android 7.0
Display Gorilla Glass 3, 5.0 inch, TFT-LCD, 1280x720
Touch Screen 5 point capacitive touch screen backlight
WWAN TDD-LTE B38/B39/B40/B41 FDD-LTE B1/B2/B3/B4/B7/B17/B20
WCDMA 850/1900/2100MHz GSM 850/900/1800/1900MHz
Camera 8.0MP Camera, Auto-focus with LED flash
WIFI 2.4GHz/5.8GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac
Bluetooth Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.0
GPS GPS, accuracy of 5 m
Battery Rechargeable li-ion polymer, 3.7V, 4500mAh
Optional Modules
RFID
(Optional)		 Ultra High frequency 1-1.5 m distance for EPC C1 GEN2/ISO 18000-6C protocol of 865~868MHz or 920~925MHz tag reading, Circular antenna(2dBi)
High frequency 2-8 cm range for ISO15693, ISO14443A double deal 13.56 MHz tags for reading and writing
PSAM Support two PSAM card
Low frequency 125KHz/134.2KHz, ISO 11784&11785, reading range up to 2-10cm
Active in Close Communication
(Optional)		 Active 2.45G Reading range more than 200 m
433MHz Reading range more than 200m

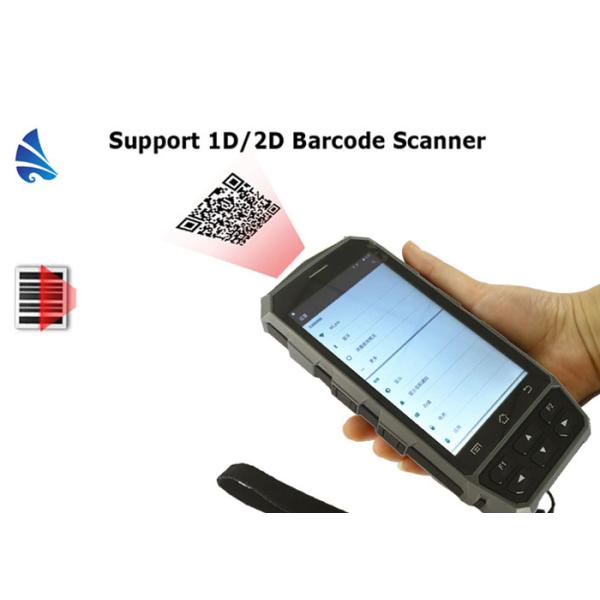

1D Barcode
(Optional)		 Module 1D Laser Engine Symbol SE955
Support All major 1D barcodes, Code 39, Code 93, Code 128, Code bar, UCC/EAN-128, ITF 25, Matrix 25, EAN-128, ISBN, ect.
2D Barcode
(Optional)		 Module Newland 3396 or Honeywell 6603
Support PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc.
Fingerprint
(Optional)		 Sensor types TCS1CT, Capacitive, area sensor 508 DPI or FBI certification fingerprint
Performance FRR<0.008%, FAR<0.005%
Capacity 1000
PSAM SECURITY(OPTIONAL) Protocol ISO 7816
Baudrate 9600, 19200, 38400,43000, 56000, 57600, 115200
Slot 2 slots(maximum)
Development Environment
SDK HHW Software Development Kit
Language Java
Environment Android Studio or Eclipse
Accessories
Accessories Standard 1xPower Supply; 1xLithium Polymer Battery; 1xDC charging cable; 1xUSB data cable
Optional Carrying case; Cradle
Other features
Environment Operating temperature (-20℃) - (50℃)
Storage temperature (-20℃) - (70℃)
Relative humidity 5%RH to 95%RH(non-condensing)
ESD ±15kv air discharge, ±8kv direct discharge

Question 1: What's for payment term and delivery term ?

1.It's generally 40%-100% TT in advance for all orders. Meanwhile, Paypal or West Union is acceptable.
2. Exw Shenzhen or FCA HK as Trade Term.

Question 2: how many modules can be in one devices?

For BH95,normally we can add 3-4 modules,but better within 3 modules.for example

2D+UHF,2D+Barcode scanner,UHF+Fingerprint etc
