6000mah Battery Rugged Windows Tablet With Barcode Scanner / NFC Reader
6000mah Battery Rugged Windows Tablet With Barcode Scanner / NFC Reader
6000mah Battery Rugged Windows Tablet With Barcode Scanner / NFC Reader
6000mah Battery Rugged Windows Tablet With Barcode Scanner / NFC Reader
Specifications
Brand Name :
BATL
Model Number :
BT681
Certification :
CE/ROHS/IP67
Place of Origin :
SHENZHEN,CHINA
MOQ :
1
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
2000 pieces/month
Delivery Time :
5-25 working days
Packaging Details :
Gift box 357*186*60mm,1.4kg/piece, cartoon box 10 pieces/cartoon,635*375*220mm
Type :
rugged tablet windows 10
display size :
8.0 inch windows 10
camera :
front 2.0M+rear 5.0M
memory :
2GB RAM+32GB ROM
Optional :
NFC reader,barcode scanner
battery :
6000 mAh
Navigation :
GPS+GLONASS
Dimension :
225*143*19mm
data transfer :
3G
optional accessories :
vehicle mount,docking station,stylus
Description

Rugged Tablet Windows 10 Rugged Windows Tablet Robust Tablet BT681

Corning Gorrila tempered glass and Double injection mould housing to make it MIL-STD-810G standard and shockproof

◪ Quad core Intel windows 10

◪ 8.0 inch IP67 1280*800 above 250 nits brightness display

RAM 2GB/ROM 32GB

◪ Dual band WIFI,BT 4.0,2G/3G/LTE wireless transmit

Support GPS/GLONASS

◪ Front 2.0M/rear 5.0M camera

◪ 6000mah big battery

◪ Option 1D/2D Barcode scanner for warehouse managment

Support OTG and USB transfer into RS232 or RJ45

Scenario install customers app for special projects,fleet management

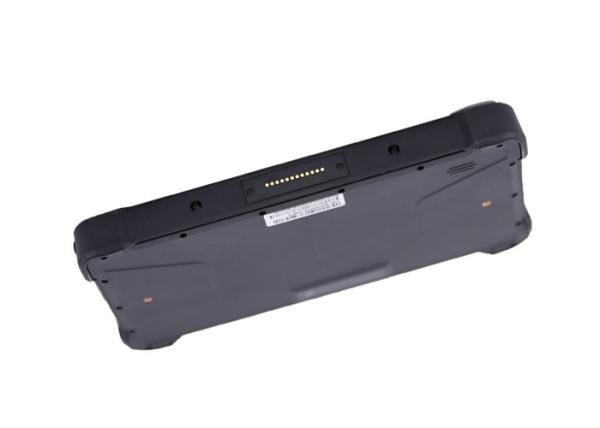

Product Outlook
Type Details Standard Configuration
Product Form Type Rugged Tablet
Dimension 227.5*150*21mm
Weight Device unit: 0.558kg ,Unit with giftbox and standard accessories:1330g,docking:290g
Device Color black
LCD Screen Size 8“ 16:10
Resolution 800*1280 IPS
Brightness 250nits
TP Touch Panel Multipoints Capacitive,G+G,Rigidity: above 7H-Anti-scratch,TP thickness:1.1mm,COF,support handwriting
Camera Front Front: 2.0MP with indicator light
Rear Rear: 5.0MP
Speaker Built-in Embedded 8Ω/0.8W waterproof speakerx 1
Mic Built-in Sensitivity:-42db, output resistance2.2kΩ
Battery Type Build in Polymer li-ion battery
Capacity 3.7V/6000mAh
Endurance 10Hrs
System Hardware Configuration
Type Details Description
CPU Type Intel Cherrytrail Z8350
Speed 1.33Ghz-1.92GHz
GPU Type Intel HD Graphic(Gen7)
RAM DDR3L 2GB
ROM Emmc 32GB
G_sensor Built-in Gravity acceleration sensor
Network Connections
Type Details Descriptions
WIFI WIFI module WIFI 802.11(a/b/g/n) frequency 2.4G+5.8G dual band WIFI,
Bluetooth Built-in BT4.2 (BLE) class1.5 transmission distance:10m
3G option IC:H350-A30-20 bands: WCDMA(900/2100MHz) GSM(900/1800MHz), HSDPA 7.2Mbps, HSUPA 5.7Mbps, LGA interface
1D/2D Barcode option 2D QR code Scanner: MOTO SE2707 Hardware decoder,Scan Speed: 50 times/s,Optical resolution: 5mil
Support code system: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode, QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverses
NFC option NXP NFC 13.56MHz support SO/IEC 14443A/14443B/15693/18092/mifare protocol, Card reading distance: 4cm
GPS option gps+glonass
Interface Configuration
Type Details Descriptions
TF slot Extensive External Memory support SDHC/SDXC x1 max: 128G
SIM slot SIM card SIM card x1
USB interface data transmission USB 2.0*1 (Host)for windows
Earphone Jack Audio Output ∮3.5mm standard earphone jack x1
DC Jack Power DC 5V 3A ∮3.5mm Power connector x1
HDMI interface Video Output HDMI 1.4a Type C x1
Extensive Slot pogo Pin 12pin Pogo Pin x1 option
Power on press key power key x1
Volume + - press key power key x1,Volume + - x2
Standard Accessories
Type Details Description
OTG cable OTG cable USB OTG to MICRO USB cable length:45mm
USB cable USB cable USB to micro 5P L=1.2M 4core aluminum foil shield cable
Power Adaptor Standard AC100V ~ 240V, 50Hz/60Hz output DC 5V/3A USA Standard CE approval
Software Configuration
Type Details Description
Operation System OS version windows 10 HOME or Windows 10 Pro
Product Certificate
Type Details Description
Certificate System IP67 IPX7
Method name:short time submerging test
test device and test condition:submerge water box.the size should make the testing sample into submerge box and after then , the distance from sample bottom to water surface at least 1m. and distance from sample top side to water surface at least 0.15m.
Testing time: 30 min
CE YES
810G YES
Battery UN38.3, MSDS, IEC62133
Reliability
Type Details Descriptions
Product Reliability Drop Height 1.2m composite wood floors, in operation status
Operate Temperature ‘-10 °C to 50 °C (-20 °C to 60 °C optional)
Store Temperature ’-30 °C to 70 °C
Humidity Humidity: 95% Non-Condensing

  • Who we are?

  • Founded in 2010, Bright Alliance specializes in the research and development and application of mobile computers including handheld pda and rugged tablet with optional barcode,Biometric fingerprint,NFC reader etc

  • Why choose us?

  • Bright Alliance has formed strategic alliances with many foreign companies. It is a strategic partner of many internationally renowned IoT equipment importer, and can provide customers with more advanced and time-sensitive products and services.With good corporate reputation

Question 1: Are you a manufacturer of rugged devices?

Yes, we have our own R&D team including software and hardware engineers and assembly factory,mainly producing industrial PDA and rugged tablet ,.

Question 2: What kind of services do you support ?

1.We provide you Free SDK and Technical Support

2.We also provide ODM/OEM Customization Services based to your demands.
3.We support 12 months Warranty for all the device and 6 months for the batteries. Exend warranty, it costs 10% at the first year, and 20% for the second year.
