Precision RUIDA CO2 Laser Cutting Machine Controller RDC6555G for film cutting
Precision RUIDA CO2 Laser Cutting Machine Controller RDC6555G for film cutting
Precision RUIDA CO2 Laser Cutting Machine Controller RDC6555G for film cutting
Precision RUIDA CO2 Laser Cutting Machine Controller RDC6555G for film cutting
Precision RUIDA CO2 Laser Cutting Machine Controller RDC6555G for film cutting
Precision RUIDA CO2 Laser Cutting Machine Controller RDC6555G for film cutting
Precision RUIDA CO2 Laser Cutting Machine Controller RDC6555G for film cutting
Precision RUIDA CO2 Laser Cutting Machine Controller RDC6555G for film cutting
Specifications
Brand Name :
RUIDA
Model Number :
RDC6555G
Certification :
CE FCC ROHS
Place of Origin :
Mainland China
MOQ :
50
Price :
Negotiable - Inquire Within
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 sets/day
Delivery Time :
5-8 work days
Packaging Details :
360*300*250
Brand :
RUIDA
Laser source :
CO2 glass tube, CO2 RF tube and UV lasers
Axis :
5
Y axis double drive :
Support dual-drive output and have synchronous protection function
Laser channel :
1
Laser control :
Support PSO, PSV, PSP, FSP laser control methods
Language :
12
Panel :
5” color screen + keys and 7” touch screen is optional
Feeding :
upport roll to roll cutting
Cutting :
Precision cutting of high molecular materials
Description

RUIDA RDC6555G The Top-Performing Precision Cutting Controller For CO2 Laser Cutting Applications

Discroption of RDC6555G :

RDC6555G precision cutting control system is a control system for film cutting independently developed by Ruida Technology. The control system has better hardware stability, richer motion control design schemes, and better resistance to high voltage and antistatic interference. The human-machine operating system based on 5-inch LCD has a more friendly operation interface and more powerful function.

Product Features:

1. Standalone operation, integrated dual drive motion control
2. Pulse width control accuracy can add up to 0.1%
3. Support gantry dual drive synchronous error alarm, servo driver following error alarm
4. Support encoder signal detection, used for detection of real-time position and speed
5. Support absorption and blow functions, grating protection and cover protection

Precision RUIDA CO2 Laser Cutting Machine Controller RDC6555G for film cutting

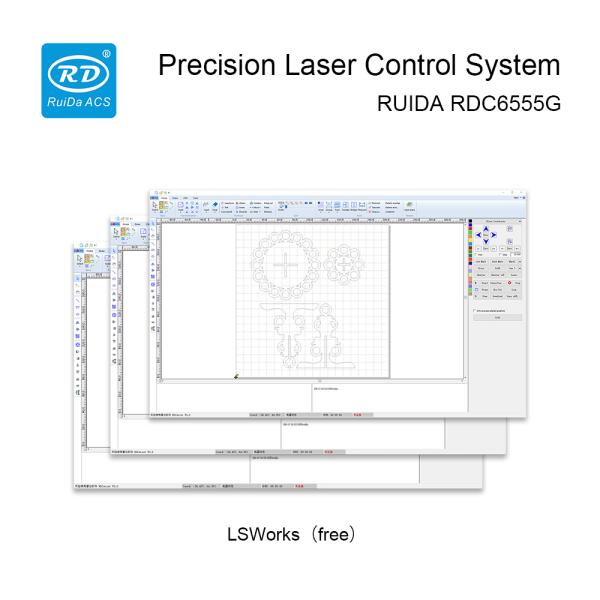

Software LSWorks(Free)

Support PLT,DXF,AI,DST and other file formats,disaplay and edit functions,support image file import and processing.

Precision RUIDA CO2 Laser Cutting Machine Controller RDC6555G for film cutting

Technical Parameters:

Parameters RDC6555G
Laser source CO2 glass tube, CO2 RF tube and UV lasers
Y axis double drive Support dual-drive output and have synchronous protection function
Laser control Support PSO, PSV, PSP, FSP laser control methods
Axis 5
Laser channel 1
Communication Ethernet, USB
Panel 5” color screen + keys and 7” touch screen is optional
Feeding Support roll to roll cutting
Cutting Precision cutting of high molecular materials
Engraving Support
Encryption Support
Onboard clock Support
Firmware Support the remote upgrade of mainboard and panel program
Software LSWorks
Language Including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian, Japanese
Size Panel: L202mm*W145mm*H42.1mm
Mainboard: L270mm*W157mm*H55mm

Application

Suitable for precision cutting of non-metal thin film materials, ceramic and high molecular materials, including GDF film, peep-proof protection film, lens film, handwriting film, polarizing film, touch screen and flexible OLED, etc.
