RUIDA RDC6445GZ Laser Controller For CO2 Laser Cutting And Engraving Machine
RUIDA RDC6445GZ Laser Controller For CO2 Laser Cutting And Engraving Machine
RUIDA RDC6445GZ Laser Controller For CO2 Laser Cutting And Engraving Machine
RUIDA RDC6445GZ Laser Controller For CO2 Laser Cutting And Engraving Machine
RUIDA RDC6445GZ Laser Controller For CO2 Laser Cutting And Engraving Machine
RUIDA RDC6445GZ Laser Controller For CO2 Laser Cutting And Engraving Machine
RUIDA RDC6445GZ Laser Controller For CO2 Laser Cutting And Engraving Machine
RUIDA RDC6445GZ Laser Controller For CO2 Laser Cutting And Engraving Machine
Specifications
Brand Name :
RUIDA
Model Number :
RDC6445GZ
Certification :
CE FCC ROHS
Place of Origin :
Mainland China
Price :
Negotiable - Inquire Within
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
MOQ :
50
Supply Ability :
100 sets/day
Delivery Time :
5-8 work days
Packaging Details :
Carton Packing
Brand :
RUIDA
Laser source :
CO2 glass tube, CO2 RF tube and UV lasers
Axis :
4
Feeding :
U axis feeding/ Y and U axes feeding synchronously, sheet feeding /large format segmentation feeding
Laser channel :
2
Panel :
5”color screen + keys
Double heads synchronous :
Support
Firmware :
Support
Encryption :
Support
Rotary :
Y or U axis rotation mode is optional
Description

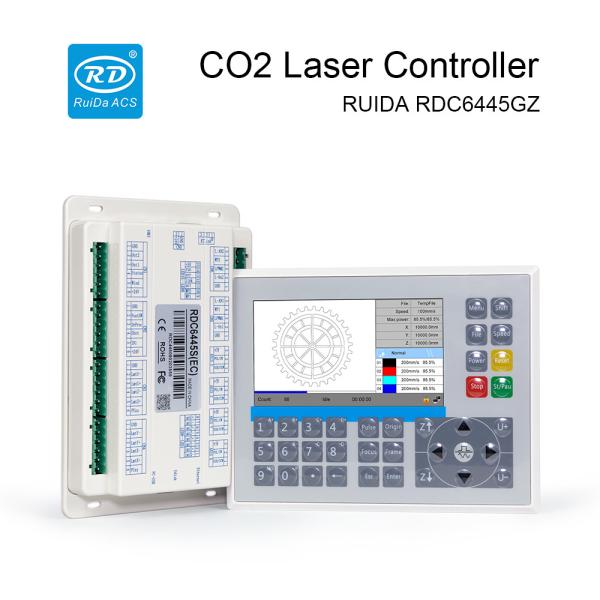

RUIDA RDC6445GZ Laser Controller For CO2 Laser Cutting And Engraving Machine

Discroption of RDC6445GZ:

The RDC6445GZ system is the latest generation of laser cutting and engraving control system developed by Ruida. The control system has better hardware stability and better resistance to high voltage and static electricity. The human-machine operating system based on the 5-inch color screen has a more friendly operation interface and more powerful functions.

Product Feature:

1. Support standalone operation and U disk processing
2. Support offline modification of file attributes, manufacturer and user parameters
3. Support working hours preview, accurate to millisecond
4. Real-time display the processing path, coordinate point and progress bar
5. Automatic focusing by panel, support manual and automatic focusing
6. Support manual input or automatic acquire the coordinate of docking point
7. Abundant external auxiliary accessories are optional (wireless handheld box, RD-APP and RD-WIFI)

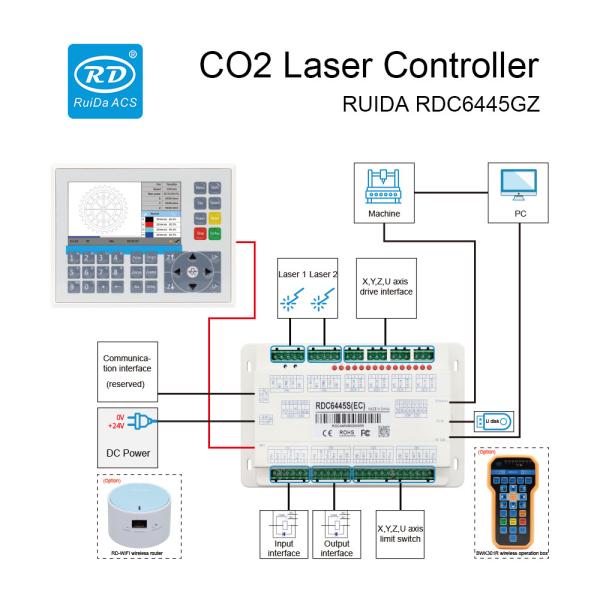

8. Extended interface for external device is convenient to customize demand

RUIDA RDC6445GZ Laser Controller For CO2 Laser Cutting And Engraving Machine

Software RDworks V8(Free)

Support PLT,DXF,AI,DST and other file formats import,display and edit functions,support image file import and processing.

RUIDA RDC6445GZ Laser Controller For CO2 Laser Cutting And Engraving Machine

Technical Parameters:

Parameters RDC6445GZ
Laser source CO2 glass tube, CO2 RF tube and UV lasers
Axis 4
Laser channel 2
Double heads synchronous Support
Communication Ethernet, USB and WIFI (optional)
Panel 5” color screen + keys
Feeding U axis feeding, Y and U axes feeding synchronously, sheet feeding, large format segmentation feeding
Encryption Support
Onboard clock Not support
Firmware Support the remote upgrade of mainboard and panel program
Rotary Y or U axis rotation mode is optional.
Engraving Plane engraving, slope engraving and gray engraving
Processing Support resume processing after power failure
Software RDWorksV8, plug-in software RDPlug, virtual printing and RDImage
Language Including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian, Japanese

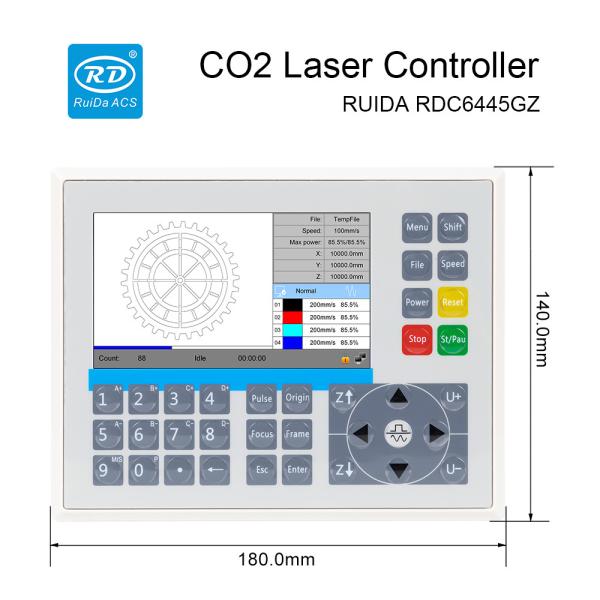

Size Panel:L180*W140*H42.1mm
Mainboard:L180*W116.6*H33.1mm
Accessories Wireless handle, RD-APP and RD-WIFI

Note: Virtual printing only supports Win10.

RUIDA RDC6445GZ Laser Controller For CO2 Laser Cutting And Engraving Machine

Package list:

RUIDA RDC6445GZ Laser Controller For CO2 Laser Cutting And Engraving Machine

RUIDA RDC6445GZ Laser Controller For CO2 Laser Cutting And Engraving Machine

RUIDA RDC6445GZ Laser Controller For CO2 Laser Cutting And Engraving Machine
