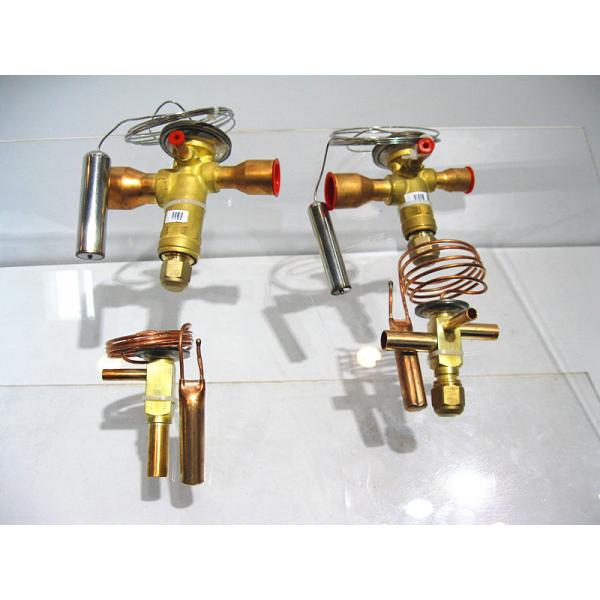

TX2 068Z3206 Series Refrigeration Valves (068Z3206) R22 CE/ROHS/FCC/SGS -40/+10
TX2 068Z3206 Series Refrigeration Valves (068Z3206) R22 CE/ROHS/FCC/SGS -40/+10
TX2 068Z3206 Series Refrigeration Valves (068Z3206) R22 CE/ROHS/FCC/SGS -40/+10
TX2 068Z3206 Series Refrigeration Valves (068Z3206) R22 CE/ROHS/FCC/SGS -40/+10
TX2 068Z3206 Series Refrigeration Valves (068Z3206) R22 CE/ROHS/FCC/SGS -40/+10
TX2 068Z3206 Series Refrigeration Valves (068Z3206) R22 CE/ROHS/FCC/SGS -40/+10
TX2 068Z3206 Series Refrigeration Valves (068Z3206) R22 CE/ROHS/FCC/SGS -40/+10
TX2 068Z3206 Series Refrigeration Valves (068Z3206) R22 CE/ROHS/FCC/SGS -40/+10
Specifications
Brand Name :
original
Model Number :
TX2 068Z3206
Certification :
CE/ROHS/FCC/SGS
Place of Origin :
China/Europ
MOQ :
1pcs
Price :
discussed
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5,000pcs per month
Delivery Time :
7-10 working days after received your payment
Packaging Details :
Carton box
Refrigerant :
R22
Type :
Expansion Valve
Export Markets :
Global
Application :
Refrigeration Parts
Material :
Brass
Valve Type :
Angleway
Connection type :
Flare/Flare/Flare
Temperature :
-40/+10
Description

Tes20 Series Refrigeration Valves ( 067b3352 ) R404a / R507

Specifications:

thermostatic expansion valves(Tex2)


Regriratant: R22/R404A/R507

Thermal expansion valve, expansion valve,thermostatic expansion valve,A/C expansion valve Type

TEX2 belong the Outer balance


Thermostatic expansion valve regulate the flow of refrigerant liquid into the evaporator.

The flow is controlled by the valve.

The thermal bulb senses the evaporator heat and adjusts the valve to admit refrigerant liquid in accordance with the refrigerating load.

More information please check below file:

Refrigerant Model equalizer Capillary Connection size code
inlet×outlet N series
-40+10		 N series
-40-5		 NL series
-40-15
m in.×in. mm×mm Without mop With mop Without mop With mop
R22 TX 2 internal 1.5 3/8*1/2 10*12 068Z3206 068Z3208 068Z3224 068Z3226
TEX 2 external 1.5 3/8*1/2 10*12 068Z3209 068Z3211 068Z3225 068Z3227
R134a TN 2 internal 1.5 3/8*1/2 10*12 068Z3346 068Z3347 068Z3393 068Z3369
TEN 2 external 1.5 3/8*1/2 10*12 068Z3348 068Z3349 068Z3392 068Z3370
R404A
/R507		 TS 2 internal 1.5 3/8*1/2 10*12 068Z3400 068Z3402 068Z3406 068Z3408
TES 2 external 1.5 3/8*1/2 10*12 068Z3403 068Z3405 068Z3407 068Z3409
R12 TF 2 internal 1.5 3/8*1/2 10*12 068Z3202 068Z3236 068Z3220 068Z3222
TEF 2 external 1.5 3/8*1/2 10*12 068Z3204 068Z3237 068Z3221 068Z3223
R502 TY 2 internal 1.5 3/8*1/2 10*12 068Z3212 068Z3214 068Z3230 068Z3232
TEY 2 external 1.5 3/8*1/2 10*12 068Z3215 068Z3217 068Z3231 068Z3233

TX2 068Z3206 Series Refrigeration Valves (068Z3206) R22 CE/ROHS/FCC/SGS -40/+10
