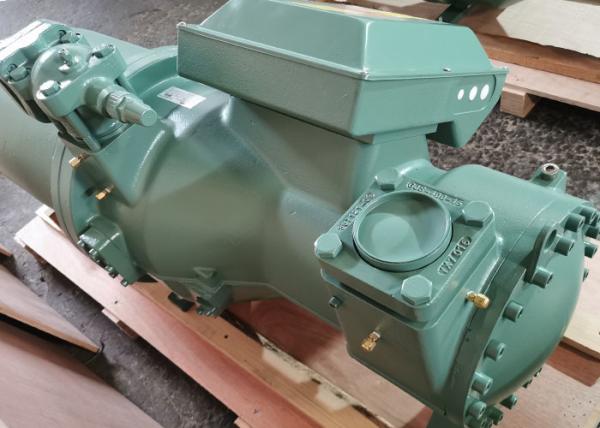

CSH Compact Screw Compressor Semi Hermetic CSH8553-110-38p For Cold Room
CSH Compact Screw Compressor Semi Hermetic CSH8553-110-38p For Cold Room
CSH Compact Screw Compressor Semi Hermetic CSH8553-110-38p For Cold Room
CSH Compact Screw Compressor Semi Hermetic CSH8553-110-38p For Cold Room
CSH Compact Screw Compressor Semi Hermetic CSH8553-110-38p For Cold Room
CSH Compact Screw Compressor Semi Hermetic CSH8553-110-38p For Cold Room
CSH Compact Screw Compressor Semi Hermetic CSH8553-110-38p For Cold Room
CSH Compact Screw Compressor Semi Hermetic CSH8553-110-38p For Cold Room
Specifications
Model Number :
CSH8553-110-38p
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
Disscussed
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100 pieces/week
Delivery Time :
7 days
Packaging Details :
wooden box
weight :
850kg
Brand :
Bit-zer
Type :
compressor
warranty :
1 year
Application :
Refrigeration Parts
Description

1. Product introduction

Flexible

· Dual capacity control: switch between 4-stage and seamless capacity control – with no compressor adaptation work

· Suction and pressure connectors can be rotated in 90° increments

High efficiency profile outstandingly efficient thanks to

· Advanced geometry

· High rigidity

· Patented production process for maximum precision

· High peripheral speed

2. Product parameter(Specification)

screw compressor
Model CFH Displ 60 HZ Motor HP
CSH6553-50 165 50
CSH6563-60 205 60
CSH7553-70 238 70
CSH7563-80 274 80
CSH7573-90 311 90
CSH8553-110 380 110
CSH8563-125 433 125
CSH8573-140 495 140
CSH9553-180 645 180
CSH9563-210 742 210
CSH9573-240 844 240
CSH9583-280 971 280
CSH9593-300 1098 300

3.Production details

SI IP
Displacement(2900 RPM 50 HZ) 170 m³/h 6007 CFH
Displacement(3500 RPM 60 HZ) 205 m³/h 7246 CFH
Weight 325 kg 717 lb
Max,pressure(LP/HP) 19/28 bar 275/400 psi
Connection suction line 54mm-2 1/8” 54mm-2 1/8”
Connection discharge line 42mm-1 5/8” 42mm-1 5/8”
Motor Voltage(more on request) 380-415V PW-3-50HZ 440-480V PW-3-60HZ UL
Max operating current 108.0 A 108.0 A
Winding Radio 50/50 50/50
Starting current (Rotor locked) 269.0 A D/508.0 A DD

269.0 A D/508.0 A DD
