Specifications
Model Number :
8FE-70Y/8FC-70.2Y
Certification :
CE
Place of Origin :
Germany
MOQ :
1
Price :
discussed
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20
Delivery Time :
1-60DYAS
Packaging Details :
wooden packaging
Type: :
Compressor
Certification: :
CE, CSA, GS, ROHS, UL
TYPE: :
Semi-hermetic piston compressors
Power: :
70HP
Cylinder: :
8
Weight(kg): :
374
Description
Packaging & Delivery

Packaging Details

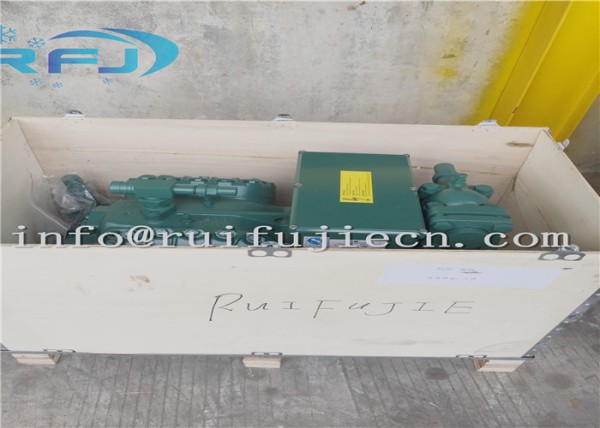

By Sea:Export wooden package,with refrigerant oil
By Air :Full-sealed wooden package, without refrigerant oil.
Port
Guangdong/Shenzhen
Lead Time :

Quantity(Units)1 - 3>3
Est. Time(day)5To be negotiated


Semi-hermetic Reciprocating compressor ECOLINE Series

The advantage of the compressor:
Energy efficient
High-efficiency profile
Infinite or closely stepped capacity control
Optimum economiser operation
Universal
R134a, R407C and R22 (R404A, R507A upon request)
With and without economiser (ECO)
Flexible
Dual capacity control
Changeable between 4-stage and infinite capacity control-without retrofitting the compressor
Suction and discharge gas connections can be rotated in 90" increments


New valve plate design

  • New geometric concept for pressure valves – for low rear expansion.
  • High cooling capacity with minimal energy requirements.
  • The ECOLINE cylinder head system: Flexible operation in tandem.

Motor

  • Efficient under full- and part-load thanks to its broadband characteristics.
  • The universal refrigeration compressor: Motor version 2 for medium and low temperature applications.
  • Motor versions 1 and 3 for special applications.

Capacity control

  • The CRII system – intermittent blocked suction For example, 4-cylinder compressor with CRII on both heads: Range of control from 100% to ~10%
  • ECOLINE VARISPEED – built-in frequency inverter

Downward compatible

  • Essential internal components completely redesigned.
  • Outer contour as standard: Every ECOLINE is downward compatible

Drive gear

  • New piston and connecting rod design
Technical Data

Technical Data
Displacement (1450 RPM 50Hz)221 m³/h
Displacement (1750 RPM 60Hz)266,7 m³/h
No. of cylinder x bore x stroke8 x 82 mm x 60 mm
Weight374 kg
Max. pressure (LP/HP)19 / 28 bar
Connection suction line76 mm - 3 1/8''
Connection discharge line54 mm - 2 1/8''
Oil type R134a/R407C/R404A/R507A/R407A/R407FBSE32(Standard) / R134a tc>70°C: BSE55 (Option)
Oil type R22 (R12/R502)B5.2 (Option)
Motor data
Motor version1
Motor voltage (more on request)380-420V PW-3-50Hz
Max operating current139.0 A
Winding ratio60/40
Starting current (Rotor locked)401.0 A D / 590.0 A DD
Max. Power input78,0 kW
Extent of delivery (Standard)
Motor protectionSE-B2
Enclosure classIP54 (Standard)
Vibration dampersStandard
Oil charge5,0 dm³
Available Options
Discharge gas temperature sensorOption
Capacity control100-75-50% (Option)
Capacity Control - infinite100-50% (Option)
Crankcase heater140 W (Option)
Oil pressure monitoringMP54 (Option), Delta-PII (Option)
Sound measurement
Sound power level (+5°C / 50°C)87,5 dB(A) @ 50Hz
Sound power level (-10°C / 45°C)89,0 dB(A) @ 50Hz
Sound pressure level @ 1m (+5°C / 50°C)79,5 dB(A) @ 50Hz
Sound pressure level @ 1m (-10°C / 45°C)81,0 dB(A) @ 50Hz
