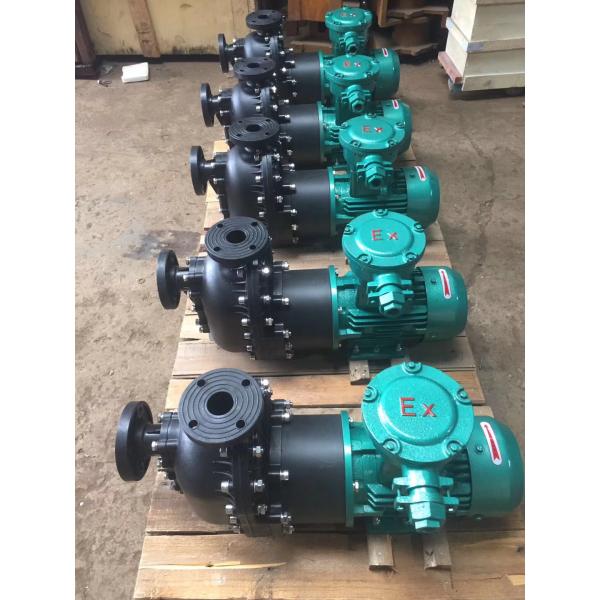

ZBF Plastic Mag Drive Centrifugal Pump 2900rpm Centrifugal Force Water Pump
ZBF Plastic Mag Drive Centrifugal Pump 2900rpm Centrifugal Force Water Pump
ZBF Plastic Mag Drive Centrifugal Pump 2900rpm Centrifugal Force Water Pump
ZBF Plastic Mag Drive Centrifugal Pump 2900rpm Centrifugal Force Water Pump
Specifications
Brand Name :
ZY
Model Number :
Magnetic pump
Place of Origin :
CHINA
MOQ :
2
Price :
200USD-1000USD
Payment Terms :
L/C, T/T, T/T, Western Union
Supply Ability :
10ocs/week
Delivery Time :
7
Packaging Details :
plywood
Certification :
ISO9001
Theory :
Centrifugal Pump
Usage :
Water
Power :
Electric
Fuel :
Diesel
Description
ZBF Plastic Magnetic Force Pump made in china/plastic hand pump
Product Introduction:
The ZBF type plastic magnetic force transmission centrifugal pump is the union new nanometer material, the structure and the magnetic force transmission technology, and high-tech product which succeeds after this company technical personnel repeatedly research trial, has the performance, the corrosion, not divulges and soon the merit. This pumps by the static seal substitution moves the seal, causes to flow the part to be at completely seals the condition, the thorough settlement other centrifugalism have sealed are unable to avoid running, braving, the drop, to leak, the disease, has flowed the part the material to use the anti-corrosive nanometer polypropylene (PP) is the main material, the use scope broad, the anti-corrosive performance is strong. Should pump the structure compact, contour artistic, volume small, noise low, time short, life long, the movement is reliable. Widely applies to enterprise′ s in the and so on petroleum, chemical industry, drugs manufacture, printing, galvanization, food, environmental protection production process transports does not contain the pellet impurity the corrosive liquid, especially is suitable for flammable, is easy to volatilize, to be virulent and the precious liquid transportation.
Type Designation:
ZBF 40 ¨C 125
The ZB ¨C type magnetic force pumps
F ¨C has flowed the part is a plastic
40 - pumps the import and export diameter (mm)
125 - impellers nominal diameter (mm)
Technology Parameters:

ZBF Self-priming plastic magnetic pump

performance parameter

MODEL (mm) flow
(m3/h)		 head
(M)
(NPSH)r(m)		 power
(KW)		 speed
(r/min)		 voltage
(V)		 frequency
(HZ)
inlet outlet
ZBF32-105 32 32 6.5 10 5 0.75 2900 380 50
ZBF32-115 16 5 1.1 2900 380 50
ZBF32-125 20 5 1.5 2900 380 50
ZBF40-105 40 40 10 10 5 1.1 2900 380 50
ZBF40-115 16 5 1.5 2900 380 50
ZBF40-125 20 5 2.2 2900 380 50
ZBF50-125 50 50 12.5 20 5 3 2900 380 50
ZBF50-160 32 5 4 2900 380 50
Flow:1.5-60m3/h
Head:8-32m
Rotary speed:2900r/min
Power:0.37-15kw
Caliber:20-80mm
Suitable the temperature:0-60°C
Self-priming high:3.5m
