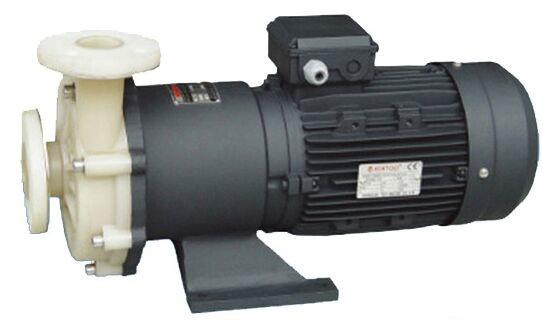

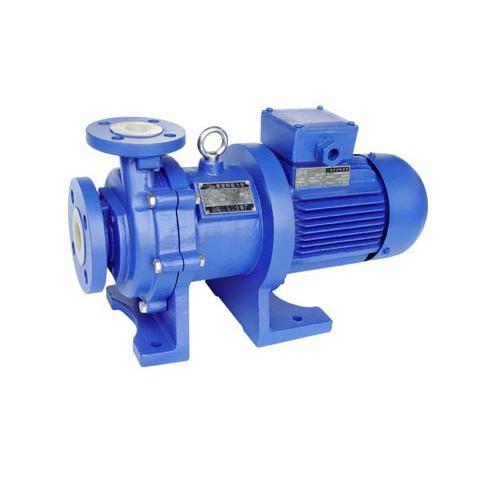

CQB-F Anti Corrosion Chemical Circulating Pump Acid Transfer Pump
CQB-F Anti Corrosion Chemical Circulating Pump Acid Transfer Pump
CQB-F Anti Corrosion Chemical Circulating Pump Acid Transfer Pump
CQB-F Anti Corrosion Chemical Circulating Pump Acid Transfer Pump
CQB-F Anti Corrosion Chemical Circulating Pump Acid Transfer Pump
CQB-F Anti Corrosion Chemical Circulating Pump Acid Transfer Pump
Specifications
Brand Name :
ZY
Model Number :
CQB-F
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1
Price :
400
Payment Terms :
T/T, Western Union
Supply Ability :
15pcs 1 month
Delivery Time :
15days
Packaging Details :
plywood
material :
cast iron with fluorine
color :
blue
voltage :
380v/415v/50hz/60hz
motor :
orginal or EX
use :
acid-base
pressure :
low pressure
power :
electric
structure :
single-stage
key word :
magnetic drive pump
Description

CQB-F anti corrosion chemical circulating pump magnetic drive pump transfer acid pump

CQB-F anti corrosion chemical circulating pump magnetic drive pump transfer acid pump voltage 380v/460v

Specifications

1. widely usage
2. anti-corrosion
3. non-ageing
4. non-leakage

Brief Instruction:

CQB-F fluorine plastic magnetic drive pumps are inline with fluorine. They adopt the best material for anti-corrosion.

Leakage proof design: It is with magnetic drive not shaft seal.

Usage temperature: -20 to 100 degree

Parameters

Working Principle: Centrifugal, Magnetic
Flowrate range: 1.6~100m3/h
Head range: 7~50m
Max.permissible fluid temperature: 100°C(212°F)
Material: Cast iron lined with FEP, PFA
Power specs: 0.18~18.5kw / 110~480v / 50/60hz

Model Capacity (m³/h) Head
(m)		 Inlet
(mm)		 Outlet (mm) NPSH
(m)		 Motor Power (KW)
CQB20-15-75F 1.6 7 20 15 6 0.18
CQB25-20-100F 2.5 10.5 25 20 6 0.37
CQB32-20-110F 5.5 13 32 20 5 0.55
CQB40-25-120F 6.3 15 40 25 5 0.75
CQB40-40-100F 6.3 11 40 40 5 0.55
CQB40-40-125F 6.3 17.5 40 40 3.7 1.1
CQB40-25-150F 6.3 25 40 25 3.5 1.5
CQB40-25-160F 6.3 32 40 25 3.5 3
CQB40-25-200F 6.3 50 40 25 3.5 5.5
CQB50-32-125F 12.5 20 50 32 3.5 2.2
CQB50-32-160F 12.5 32 50 32 3.5 4
CQB50-32-200F 12.5 50 50 32 3.5 7.5
CQB65-50-125F 25 20 65 50 4 4
CQB65-50-150F 20 25 65 50 4 4
CQB65-50-160F 17.5 32 65 50 4 4
CQB65-50-180F 18 38 65 50 4 5.5
CQB80-65-125F 50 20 80 65 4 7.5
CQB90-65-160F 50 32 80 65 4 11
CQB100-80-125F 100 20 100 80 4 11
CQB100-80-160F 100 32 100 80 4 18.5

CQB-F Anti Corrosion Chemical Circulating Pump Acid Transfer Pump

CQB-F Anti Corrosion Chemical Circulating Pump Acid Transfer Pump

CQB-F Anti Corrosion Chemical Circulating Pump Acid Transfer Pump
