CDL Series High Pressure Water Pump Fire Jockey Pump Material On Cast Iron / ss304 / ss316
CDL Series High Pressure Water Pump Fire Jockey Pump Material On Cast Iron / ss304 / ss316
CDL Series High Pressure Water Pump Fire Jockey Pump Material On Cast Iron / ss304 / ss316
CDL Series High Pressure Water Pump Fire Jockey Pump Material On Cast Iron / ss304 / ss316
CDL Series High Pressure Water Pump Fire Jockey Pump Material On Cast Iron / ss304 / ss316
CDL Series High Pressure Water Pump Fire Jockey Pump Material On Cast Iron / ss304 / ss316
CDL Series High Pressure Water Pump Fire Jockey Pump Material On Cast Iron / ss304 / ss316
CDL Series High Pressure Water Pump Fire Jockey Pump Material On Cast Iron / ss304 / ss316
CDL Series High Pressure Water Pump Fire Jockey Pump Material On Cast Iron / ss304 / ss316
CDL Series High Pressure Water Pump Fire Jockey Pump Material On Cast Iron / ss304 / ss316
Specifications
Brand Name :
ZY
Model Number :
CDL
Place of Origin :
Zhejiang, China
MOQ :
1 set
Price :
$50-$5000
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000set/month
Delivery Time :
7-30WD
Packaging Details :
wooden box
Certification :
ISO9001
Structure :
Multi-stage Pump
Usage :
Water Pump
Application :
Water Pump
Power :
Electric
Fuel :
electric
Pressure :
Low Pressure
Theory :
Centrifugal pump
material :
Stainless-steel
Keywords :
Multistage Water pump
Impeller :
yes
Warranty :
1 year
Voltage :
380V
Description

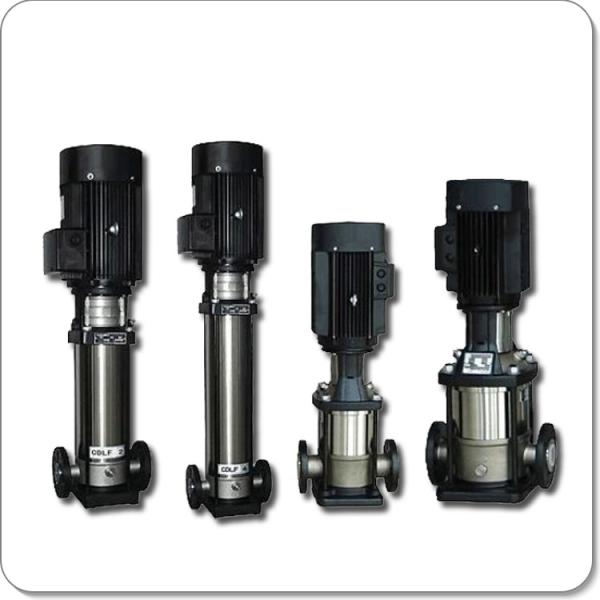

CDL series High pressure water pump Fire Jockey Pump
CDL Series High Pressure Water Pump Fire Jockey Pump Material On Cast Iron / ss304 / ss316

Features CDL, CDLF type of stainless steel sheet metal stamping, forming vertical multistage centrifugal pump (hereinafter referred to as the pump), with the use of health clean, high efficiency, low noise, resistance to mildly corrosive and compact structure, beautiful appearance, small size, light weight, The use of easy maintenance, and reliable sealing performance.
Use Product use chemical properties similar to the water of low viscosity, neutral, non-explosive, without solid particles or fibers, liquid, liquid transport can not pump the material with chemical resistance.
Boiler feed water and condensate systems;
High-rise building pipeline booster;
Water treatment, infiltration and filtration systems;
Food and beverage industry;
The pharmaceutical industry;
Agriculture, nurseries, golf course irrigation;
Fire boost regulator system;
Catering, industrial cleaning systems;
Liquid, circulation and promotion;
Hot and cold water.
Scope of Application Medium temperature: Normal temperature -15 ~70 ; Hot Water -15 ~120
Flow range: 0.4~50m /h3
Medium pH range: PH 3 to 11;
The maximum ambient temperature: 40 ;
The highest altitude: 1000m; (Higher than either altitude1000m the order put forward in time)
Minimum inlet pressure: -6m
Maximum working pressure: 2.5MPa.
When the specific gravity and viscosity of the pumped liquid than water, the shaft power will increase, so must be used to match the motor shaft power.


CDL Series High Pressure Water Pump Fire Jockey Pump Material On Cast Iron / ss304 / ss316
