Specifications
Brand Name :
ZY
Model Number :
CDL
Place of Origin :
Zhejiang, China
MOQ :
1 set
Price :
$50-$500
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000set/month
Delivery Time :
7-30WD
Packaging Details :
wooden box
Certification :
ISO9001
Structure :
Multi-stage Pump
Usage :
Water Pump
Power :
Electric
Pressure :
Low Pressure
Theory :
Centrifugal pump
material :
Stainless-steel
Keywords :
Multistage Water pump
Impeller :
yes
Warranty :
1 year
Description

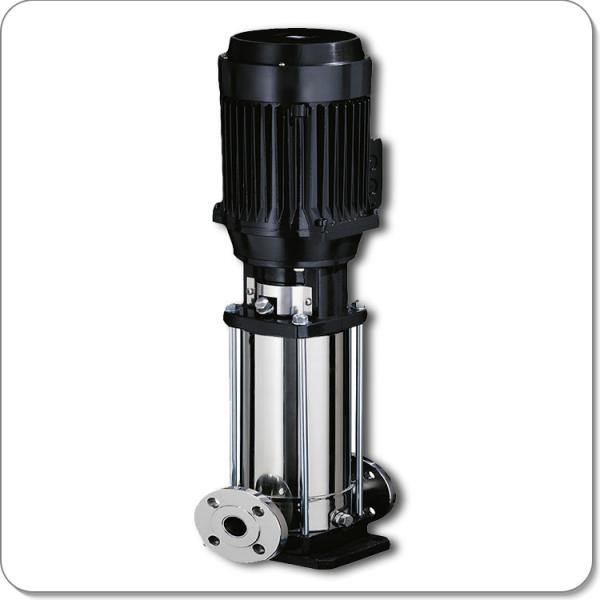

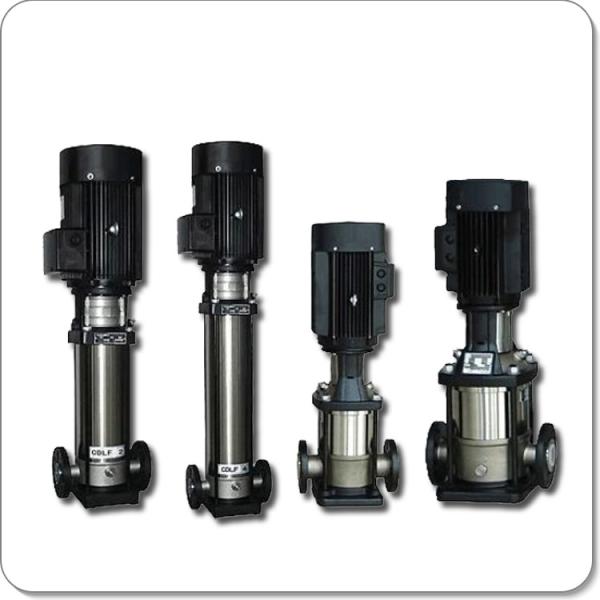

CDL centrifugal multistage stainless steel pump

Features

* Straight shaft structure, single phase with thermal protector

* Inlet and outlet section are cast iron,

* Impeller and hydraulic stack are PPO, It's economic and high cost-effective multistage pump

* Full enclosed air blast 2- pole standard motor

RANGE OF PERFORMANCE


8Flow rate up to 8 m3/h
8Head up to 211m

LIMITS OF USE

8Non-flammable or non-explosive clean liquid without solid grain or fibre.
8Liquid temperature up to 5 °C - +60°C
8Environment temperature up to ≤ 50°C

8Max. working pressure: 1.0 Mpa

INSTALLATION


8These pumps are suitable for handling clean water without abrasive particles and liquids that are chemically
non-aggressive to the pump components. Reliable, economical and simple to use, they are suitable for
domestic use and in particular for distributing water in combination with small pressure sets, for irrigating gardens.
The pumps must be installed in a covered area, protected against the inclement weather.

MOTOR


8Two –pole induction motor (n=2900rpm)
8Insulation Class F
8Protection grade IP55

MATERIALS


8Pump body: Cast iron with stainless steel.
8Pump support: Cast iron
8Motor housing: Aluminum
8Impeller: PPO
8Shaft with rotor: AISI420 stainless steel
8Mechanical seal: NBR/ Ceramic/ Carbon
8Bearing: NSK, C&U, or local quality.

Section Drawing

CDL Centrifugal Multistage Stainless Steel Pump, 8m3/h-211m, 5℃-60℃, F, IP55CDL Centrifugal Multistage Stainless Steel Pump, 8m3/h-211m, 5℃-60℃, F, IP55

WARRANTY: 1 YEAR (according to our general sales conditions)

Performance Curve n=2900rpmCDL Centrifugal Multistage Stainless Steel Pump, 8m3/h-211m, 5℃-60℃, F, IP55CDL Centrifugal Multistage Stainless Steel Pump, 8m3/h-211m, 5℃-60℃, F, IP55

Shape and Size of Installation

CDL Centrifugal Multistage Stainless Steel Pump, 8m3/h-211m, 5℃-60℃, F, IP55

Techanical Parameters

CDL Centrifugal Multistage Stainless Steel Pump, 8m3/h-211m, 5℃-60℃, F, IP55

8Three-phase 220/380V-50Hz (60hz), single phase 220V/60Hz, 110V/60Hz, 127V/60Hz & 110V/220V/60Hz are available on request.

CDL Centrifugal Multistage Stainless Steel Pump, 8m3/h-211m, 5℃-60℃, F, IP55

CDL Centrifugal Multistage Stainless Steel Pump, 8m3/h-211m, 5℃-60℃, F, IP55

CDL Centrifugal Multistage Stainless Steel Pump, 8m3/h-211m, 5℃-60℃, F, IP55
