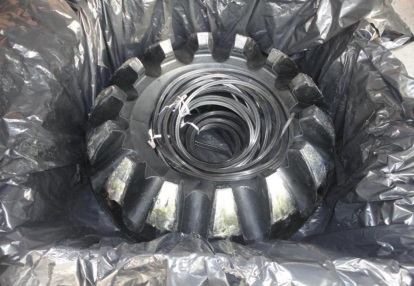

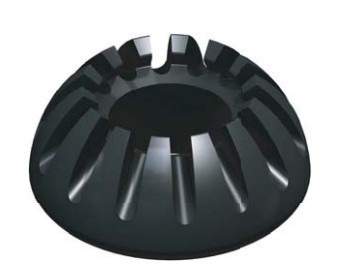

Sealing Element SL type Annular BOP

Steel Segment Reinforce Sealing Element SW type Annular BOP

Sealing Element SW type Annular BOP

Steel Segment Reinforce Sealing Element SB type Annular BOP

Sealing Element SB type Annular BOP

Our company produces various types of rubber seals, including annular plastic cores, ram plastic cores and gaskets. It has owned comprehensive testing instruments and tools for testing rubber performance so it can develop rubber seals that adapt to different working environments for satisfying needs of both companies and users.

Choice of Rubber Compound
Sealing elements are available in Natural Rubber, Nitrile Rubber and Neoprene Rubber.
Neoprene Rubber
Neoprene Rubber is for low-temperature operating service and oil-base drilling fluids. It can be used at operating temperatures between -30°F ~ 170°F(-35℃ ~ 77℃). Neoprene Rubber provides better service with oil-base drilling fluids than natural rubber; but, it is detrimentally a affected by extended high temperature applications. A neoprene packing unit should be used when natural rubber or synthetic. Rubber will not satisfy the operational conditions. The neoprene seal element is identified by a green color band with the suffix"CR".
Seal for xinde BOPs are manufactured from a special nitrile rubber material which provides long, trouble-free service in sealing against oil, gas, or water.
Note:
Expected H2S Service does not affect selection of seal element material. H2S service will reduce the service life of rubber products, but the best overall service life is obtained by matching the packing unit material with requirements of the specific drilling fluid.

Detailed paremeter
