API 16D Hydraulic BOP control unit / Well pressure control unit
API 16D Hydraulic BOP control unit / Well pressure control unit
API 16D Hydraulic BOP control unit / Well pressure control unit
API 16D Hydraulic BOP control unit / Well pressure control unit
API 16D Hydraulic BOP control unit / Well pressure control unit
API 16D Hydraulic BOP control unit / Well pressure control unit
API 16D Hydraulic BOP control unit / Well pressure control unit
API 16D Hydraulic BOP control unit / Well pressure control unit
API 16D Hydraulic BOP control unit / Well pressure control unit
API 16D Hydraulic BOP control unit / Well pressure control unit
API 16D Hydraulic BOP control unit / Well pressure control unit
API 16D Hydraulic BOP control unit / Well pressure control unit
Specifications
Brand Name :
Ruitou
Model Number :
All Size
Certification :
API 16A
Place of Origin :
Shanghai
MOQ :
1
Price :
1---10000
Supply Ability :
20 Set /Month
Delivery Time :
30 days after payment
Packaging Details :
Export Standard or customer's requirement
Usage :
BOP
Condition :
New
Warranty :
1 years
Color :
Red or Customer' s requirement
Description

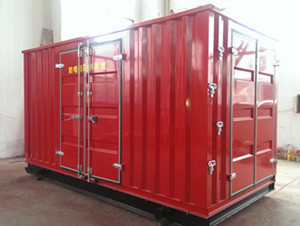

Bop Remote Control System

API 16D Hydraulic BOP control unit / Well pressure control unit

API 16D Hydraulic BOP control unit / Well pressure control unit

Bop Remote control system is special equipment, which is used to control BOP, hydraulic chock, kill system and diverter equipment, and indispensable equipment for blowout preventer during drilling or workover in petroleum and natural gas industry.

The function of the Remote control system for surface mounted BOP stacks is preparing and prestoring enough hydraulic oil and controlling its flow direction, in order to open or close BOP quickly. As the hydraulic oil used, the pressure drops down, when the pressure lowers to a certain value, the Accumulator Unit will renew the hydraulic oil automatically, to keep the pressure in a certain high value.

TypeNumber of controlled objectsAccumulators sets

Volume
of Oil
reservoir
(L)

Motor
Power
(Kw)

Flow volume of pump
AnnularRamChokeSpare

Nominal
Volume(L)

Effective
Volume(L)

Alignment

Electric
pump
(L/min)

Pneumatic
pump
(ml/stroke)

Manual
pump
(ml/stroke)

FKQ1440-14147260×24720Rear230018.5×246×260×4
FKQ1280-8132180×16640Side165018.5×246×260×2
FKQ960-8133160×16480Side165018.5×246×260×2
FKQ840-8133160×14420Side165018.54660×2
FKQ1280-7B132180×16640Side160018.5×246×260×2
FKQ800-7132140×20400Side160018.54660×2
FKQ800-7B132180×10400Side160018.54660×2
FKQ800-7C132140×20400Side160018.54660×2
FKQ800-7D132140×20400Side160018.54660×2
FKQ800-7E1321 400Side160018.54660×2
FKQ720-6132 60×12360Side129018.54660×2
FKQ720-6C132 60×12360Rear129018.54660×2
FKQ720-6D132 60×12360Side129018.54660×2
FKQ640-6132 40×16320Side129018.54660×2
FKQ640-6B132 80×8320Side129018.54660×2
FKQ640-6C132 40×16320Rear129018.54660×2
FKQ640-6D132 40×16320Side129018.54660×2
FKQ640-6E132 320Side129018.54660×2
FKQ480-5131 40×12200Side110018.54660×2
FKQ480-5B131 80×6200Side110018.54660×2
FKQ480-5C131 40×12200Rear110018.54660×2
FKQ480-5E131 200Side110018.54660×2
FKQ320-4121 40×8160Side790113560×1
FKQ320-4C121 40×8160Rear790113560×1
FKQ320-4E121 160Side790113560×1
FKQ240-3C111 40×6120Rear550113560×1
FK240-4121 40×6120Rear5501120 14/28
FK240-4E121 120Rear5501120 14/28
FK240-3111 40×6120Rear5501120 14/28
FK125-3111 25×562.5Rear4407.520 14/28
FK125-3E111 62.5Rear4407.520 14/28
FK125-2 11 25×562.5Rear4407.520 14/28
FK125-2E 11 62.5Rear4407.520 14/28



Company :Shanghai Ruitou Petroleum Machinery CO.,LTD
Email: Sales@ruitouoil.com
Phone:+86 18917269042
