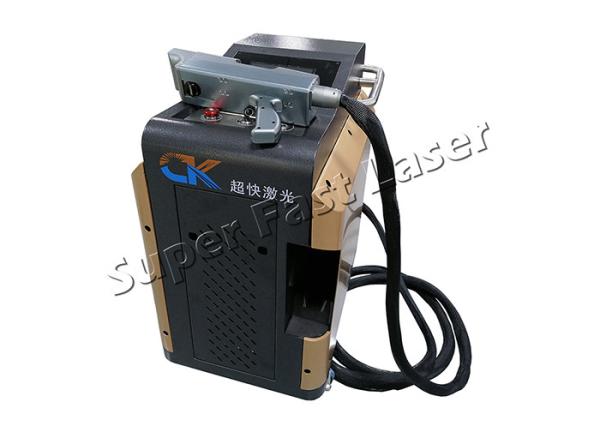

High Speed Industrial Laser Cleaning Machine Laser Paint And Rust Removal Tool
High Speed Industrial Laser Cleaning Machine Laser Paint And Rust Removal Tool
High Speed Industrial Laser Cleaning Machine Laser Paint And Rust Removal Tool
High Speed Industrial Laser Cleaning Machine Laser Paint And Rust Removal Tool
Specifications
Brand Name :
Super Fast CK
Model Number :
CK-FC-200W
Certification :
CE, ISO
Place of Origin :
Shenzhen China
MOQ :
1
Price :
35000-42000 USD/SET
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
200 sets/month (Mass production)
Delivery Time :
5-7 days
Packaging Details :
Plywood case
Material :
Fiber laser type
Power :
200W
Product name :
Cleaning equipment laser
Customize service :
Any kind of automatic equipment can be done
Optional color :
Brown, blue, yellow, white, other color can be customized
Laser cleaning Style :
Handheld or automatic optional
Description


High Speed Industrial Laser Cleaning Machine Laser Paint And Rust Removal Tool

Technical Advantages:
Clean or remove the surface paint layer with high efficiency.
Accurate cleaning and rust removal effects;
No damage to the substrate;
Low cost, low consumption;
Fast investment recovery;
No need to sand grit or chemical;
Easy operation

Specification List

Item L/N Characteristics Test Conditions Min. Typical Max. Unit
Electrical Characteristics 1 Power Voltage 220 210 220 230 AC
2 Maximum current loss Pout=Pnom 4 5 6 A
3 Total Power 900 890 900 910 W
4 Fiber Cable 5 5 5 10 M
General Characteristics 1 Working temperature range 0 / 60 ℃
2 Storage temperature -10 / 60 ℃
3 Laser power 200 W
4 Peak power >30KW KW
5 Cooling method Air Cooling 　
6 Laser level 4 Class 　
7 Pulse energy 10mJ mJ
8 Laser wavelength 1064 nm
9 Preheat time Reach to start operation 0 s
Achieve complete stability 10
10 Humidity 10 / 95 %
11 Laser machine size L647*W440*H859 mm
12 Weight 70 kg

1, Machine introduction

Based on the metal surface cleaning customized laser, according to the laser absorption rate of different wavelength of materias, the prior art selection of 1064 nm solid-state lasers or fiber lasers, metal absorption rate of up to 30%, with special mode spot, both can effectively clean rusty, and also protect Base metal with no damage.

2, Our Advantage:

1, Stable production base
• Original factory with mass production.
• Factory direct sale, LOWEST price, fast delivery.

2, Strict Quality Control

• ISO 9001 and CE qualified.
• Strict aging testing and inspection principle
3, Strong R&D technology
• Strong technical team with rich experience

Achieved a lot of patents in laser cleaning technology

4, Super service quality

• Customize based on your detailed requirements.
• Instant on-site support.
-- Metal or glass surface coating removal, rapid paint removal;
-- Grease, resin, gum, dust, stains, and produce residue removal;
-- Cultural relics cleaning, rock cleaning, exterior cleaning of buildings.
-- Treatment before welding, bonding, remove paint, rust, grease, weld oxide or residue;
-- Roughening of metal surface;
-- Mold cleaning, such as tire mold, electronic mold, food mold and etc.;
-- Aerospace weapons, ship manufacture or maintenance, paint and rust removal;
-- Quick rust and various oxides removal;
-- Treatment for precision parts, oil removal;
-- Metal surface cleaning in narrow space;
-- Quick cleaning of nuclear power unit maintenance;
3, Package
4, Sample
