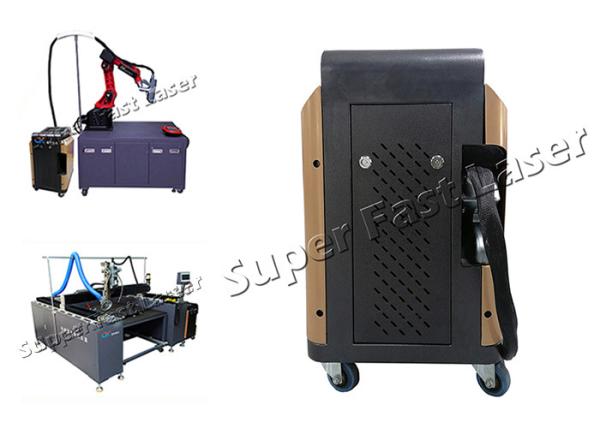

Fiber Laser Cleaning Machine Automatic 200W Portable Laser Rust Removal Tool
Fiber Laser Cleaning Machine Automatic 200W Portable Laser Rust Removal Tool
Fiber Laser Cleaning Machine Automatic 200W Portable Laser Rust Removal Tool
Fiber Laser Cleaning Machine Automatic 200W Portable Laser Rust Removal Tool
Specifications
Brand Name :
CK (Super Fast)
Model Number :
CK-FC-200W
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 SET
Price :
36000USD to 40000USD
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200set/month
Delivery Time :
5-7 days
Packaging Details :
plywood case
Function :
Metal rust laser cleaning
Power :
200watts
Laser type :
MAX Pulse fiber laser
Usage :
Rust Laser no touch cleaning
Working style :
Handheld and automatic
Machine weight :
70kgs
Description


Fiber Laser Cleaning Machine Automatic 200W Portable Laser Rust Removal Tool

Based on the metal surface and according to the laser absorption rate of different wavelength of materias, the prior art selection of 1064 nm solid-state lasers or fiber lasers, metal absorption rate of up to 30%, with special mode spot, both can effectively clean rusty, and also protect Base metal with no damage.

Considering the stability of laser, the use of cost and integration methods and other factors, the latest technology using wavelength of 1064nm fiber laser is better than solid lasers, Maxphotoncis 100W pulse laser cleaning source, is the best configuration for hand-held laser cleaning.

Specification List

Items Parameters
Cleaning Power 50W 100W 200W 500W
Current Consumption Pout = Ponm / 5A Pout = Ponm / 5A Pout = Ponm / 5A Pout = Ponm / 25A
Max. Power 400W 600W 900W 6.5KW
Power Voltage AC 110/220V AC 110/220V AC 110/220V AC 110/220V
Cooling Method Air Cooling Air Cooling Air Cooling Water Cooling
Laser Class Level 4 Level 4 Level 4 Level 4
Pulse Energy 1.5mJ 1.5mJ 8mJ 30mJ
Fiber Optical Cable 5m(Customizable) 5m(Customizable) 5m(Customizable) 7m(Customizable)
Laser Wavelength 1064nm 1064nm 1064nm 1064nm
Scan Width 1-120mm 1-120mm 1-120mm 1-160mm
Preheat Time 10-30s 10-30s 10-30s 10-30s
Working Condition A flat place without vibration and impact A flat place without vibration and impact A flat place without vibration and impact A flat place without vibration and impact
Working Temperature 0-60 ℃ 0-60 ℃ 0-60 ℃ 0-60 ℃
Storage Temperature -10~+60℃ -10~+60℃ -10~+60℃ -10~+60℃
Machine size L462 x W 260 x H562 (855mm with pull rod) L647 x W 440 x H859mm L647 x W 440 x H859mm L1100 x W 840 x H1150mm
Net Weight 32Kgs 70Kgs 70Kgs 250Kgs

Main Features

1, High-tech laser cleaning without any contact, no damage to the workpiece.
2, Auto-focusing, hook cleaning, precision, and no dead ends cleaning ability.
3, No consumables and cost-effective.
4, No cleaning medium, water, and a chemical is needed.
5, Automatic and easy operation, with electricity handheld or automation cleaning.
6, Portable with light cabinet and universal wheels.
7, High cleaning efficiency, time-saving.
8, System stable, free maintenance.

How to protect my order?

Trade Assurance is a free payment protection service for buyers.
The service is offered by participating suppliers and is designed to protect your payment
if your order is not shipped on time, or if the pre-shipment product quality (optional) does
not match the terms agreed on your contract. Your payment is protected up to 100% of an
amount - agreed between you and the supplier - called the Trade Assurance Order Amount.

Dear Friend,
The laser cleaning machine is a popular and brand-new laser cleaning mode pioneer. Its biggest advantages are environmental protection. It will replace the traditional and not environmental modes finally.

Super Fast Laser focuses on high-level quality products and do mass production.

Kindly contact us to get more information about the laser cleaning machine!
