4-15 fully automatic concrete hollow block color paving block machine
4-15 fully automatic concrete hollow block color paving block machine
4-15 fully automatic concrete hollow block color paving block machine
4-15 fully automatic concrete hollow block color paving block machine
Specifications
Brand Name :
RUYI
Model Number :
4-15
Certification :
CE/SGS/ISO9001: 2000
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD14,500 - USD35,900 per set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 sets per month
Delivery Time :
30 days after deposit reaching our bank account
Packaging Details :
Nude or as your request in container
USING FIELD :
construction concrete hollow block, color paving block making
RAW MATERIALS FOR BLOCKS :
concrete, cement, sand, fly ash, crashed stones, construction waste, etc
BLOCK FORMING PROCESS :
molding blocks
METHOD OF MAKING BLOCKS :
hydraulic pressing and vibrating
AUTOMATIC OR NOT :
yes
CAPACITY :
5800-7300 blocks per day
VOLTAGE :
220V, 380V, 440V or as you need
POWER :
26.5 KW
WARRANTY :
1 year, and full life technical support
COLOR :
as you requirement
NEED PALLET OR NOT :
YES
WEIGHT :
5000KG
PALLET SIZE :
1020mm x 570mm
MOLDING CYCLE :
15-25s
RATED PRESSURE :
16mpa
OVERSIZE :
7100mm x 1600mm x 2610mm
Description

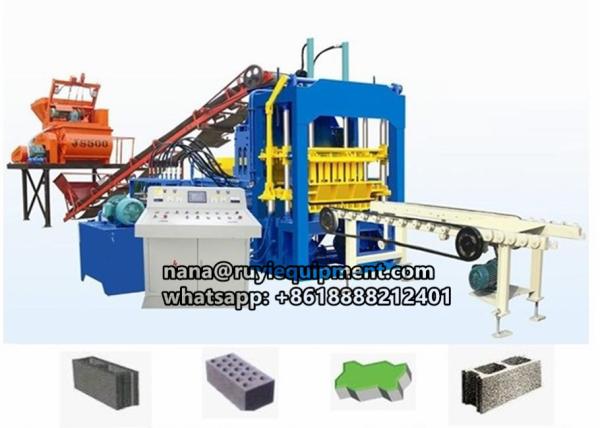

4-15 FULLY AUTOMATIC HOLLOW BLOCK

COLOR PAVING BLOCK MACHINE

1. To make concrete cement hollow blocks, color paving blocks, solid blocks (standard bricks), curbstones, etc
2. Fully automatic block machine
3. Hydraulic block machine
4. Siemens motor or Chinese national standard motor.
5. Various of blocks can be made by changing molds.
MORE DETAILS OF FULLY AUTOMATIC HOLLOW BLOCK COLOR PAVING BLOCK MACHINE
A WHAT RAW MATERIALS WE CAN USE FOR MAKING BLOCKS BY THIS BLOCK MACHINE
You can use fly ash, slag, coal gangue, industrial waste, construction waste, sand, stone, cement, etc as raw materials to make hollow blocks, solid blocks, well blocks, roof blocks, kerbstones, color paving blocks, grass bricks, standard bricks. It is very economic, and saving investments.,

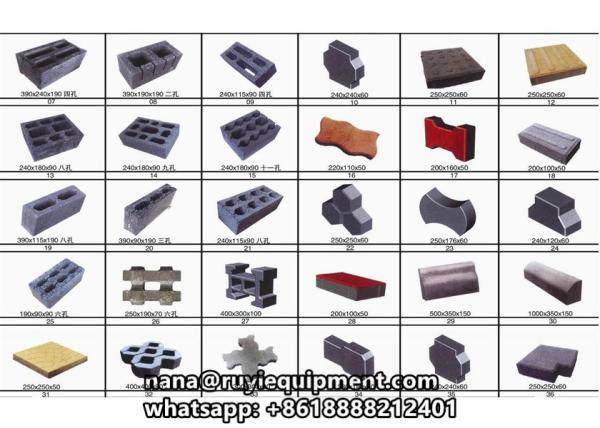

B WHAT SORTS OF BLOCKS YOU CAN MAKE BY THIS BLOCK MACHINE
By this machine, you can change molds to make various different size and shape of blocks, bricks, such as: hollow blocks, solid blocks, well blocks, roof blocks, kerbstones, color paving blocks, grass bricks, standard bricks, and so on. It is a very useful machine.
C WHAT ADVANGTAGES AND FEATHERS THIS BLOCK MACHINE HAS
This machine use PLC automatic control hydraulic system drive and press, and non-contact proximity switch monitoring. There are mechanical, electrical, optical, hydraulic, high-frequency vibration technology in each block machine. Carrying pallets, putting concrete, pressuring and vibrating, demolding, sending out bricks are all automatically.
This machine can saving labour, durable, and easy to maintain.
D WHAT BRAND OF MAIN ELECTRIC PARTS AND HYDRAULIC COMPAONENTS ARE USED IN THIS BLCOK MACHINE
We put foreign famous brand electric parts and hydraulic compenonts in these block machines. You can also choose domestic famous brand or Chinese national standard electric parts and hydraulic compenonts for saving investments.
These are all good quality ones, and make the block machine durable.
E HOW THE BLOCK MACHINE FORM BLOCKS
This block machine forming blocks is mainly by hydraulic pressure. It also need mechanical work and vibration to form blocks.

WHAT MAIN TECHNICAL PARAMETERS OF THIS BLOCK MACHINE HAS

Main vibration form
Platform vibration
Forming cycle
15-25s
Host machine power
26.5kw
Pallet size
1020x570mm
Host machine weight
5000kg
Overall dimension
7100x1600x2610mm
Raw Materials:
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.
Applied Products:
concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.
Applied Fields:
widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc.

WHAT CAPACITY OF THIS MACHINE IS

Block Name
Block Size
Qty/mould
Cycle time
Qty/hour
Qty/8hours
Hollow block
400x200x200mm
4pcs
15-20s
720-960 blocks
5760-7680 blocks
Porous block
240x115x90mm
14pcs
15-20s
2520-3360 blocks
20160-26880 blocks
Solid block
240x115x53mm
28pcs
15-17s
5900-6720 blocks
47200-53760 blocks
Paver
225x112.5x60mm
14pcs
20-25s
2000-2520 blocks
16000-20160 blocks
4-15 fully automatic concrete hollow block color paving block machine
AFTER-SALE SERVICE & TECHNICAL SUPPORT

A We will send our technicians to your workshop for installation and set up the block machines.
B Teach and train your worker to operate the block machines.
C Let your technicians clear with the routine maintenance of equipment and how to remove common faults
D 1 year's warranty and full use life technical support of these block machines
