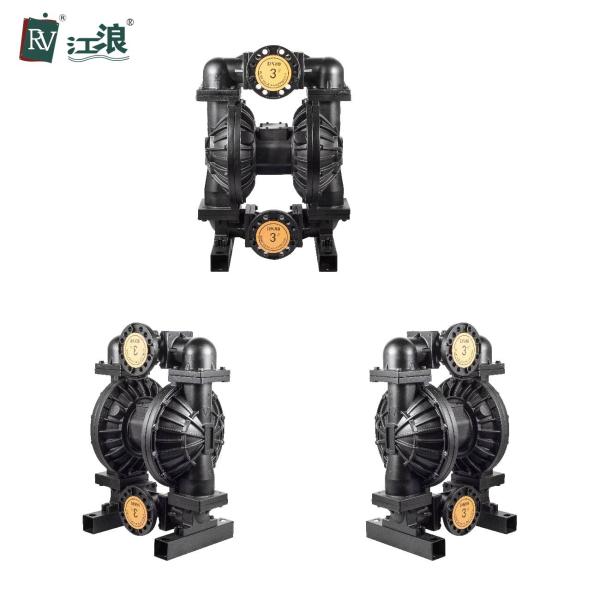

PTFE Aluminum Diaphragm Pump 3 Inch For Neutral Water Treatment
PTFE Aluminum Diaphragm Pump 3 Inch For Neutral Water Treatment
PTFE Aluminum Diaphragm Pump 3 Inch For Neutral Water Treatment
PTFE Aluminum Diaphragm Pump 3 Inch For Neutral Water Treatment
PTFE Aluminum Diaphragm Pump 3 Inch For Neutral Water Treatment
PTFE Aluminum Diaphragm Pump 3 Inch For Neutral Water Treatment
Specifications
Brand Name :
RV
Model Number :
RVA-K3311-T
Certification :
CE , ATEX ,ISO9001
Place of Origin :
China
MOQ :
1 SET
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability :
10000 SET Month
Delivery Time :
1-7working day
Packaging Details :
Carton / Woodencase/ Pallet
Product Name :
Air Diaphragm Pump
Fuel :
Air Driven
Lift :
230 FT / 70meter
Application :
Dinking water treatment, Raw water intake
Material of Diaphragm :
PTFE Santoprene
Weight :
77kg
Description

PTFE Aluminum Diaphragm Pump 3 Inch For Neutral Water Treatment

DESCRIPTION

RV aluminum diaphragm pump are suitable for aggressive liquids, even with viscosity and solids in suspension. They are built with an anti-stalling pneumatic circuit which ensures the highest possible level of security and efficiency and doesn’t require lubricated air.

RV air aluminum diaphragm pump are available in several materials and dimensions and the ATEX version can work in potentially explosive atmosphere.

MAIN FEATURES

  • Available in PP, PVDF and AISI316
  • Suitable for high viscosity fluids and solids in suspension
  • Suitable for corrosive atmospheres
  • Suitable for potentially explosive atmospheres in their ATEX
  • New generation PTFE diaphragms with embodied in/out piston
  • Ecological design ensuring a reduction of air consumption
  • Manufactured with anti-stalling circuit and ice barrier protectives to keep performances unaltered over time
  • Individually tested before shipment
  • Easy assembling and disassembling
Max Working Pressure 120 psi(0.84Mpa, 8.4bar)
Max Flow Rate 270 gpm ( 1022lpm )
Max Reciprocating Speed 135 cpm
Max Suction Height (Dry Sucking) 5m
Max Permitted Grain 0.37 in ( 9.4mm)
Max Air Consumption 180scfm(90L/s)
Air Inlet Size 3/4 in.npt(f)
Air Outlet Size 1 in.npt(f)
Fluid Inlet Size 3 in.
Fluid Outlet Size 3 in.
Net Weight Aluminum 77kg


PTFE Aluminum Diaphragm Pump 3 Inch For Neutral Water Treatment

Performance curve diagram

PTFE Aluminum Diaphragm Pump 3 Inch For Neutral Water Treatment

Packing & Shipping:


PTFE Aluminum Diaphragm Pump 3 Inch For Neutral Water TreatmentPTFE Aluminum Diaphragm Pump 3 Inch For Neutral Water Treatment

Spraying And Cleaning

Aluminum Diaphragm pumps are perfect for spraying paint, cleaning roofs and spraying conveyers / bottles for anti-static. These air operated diaphragm pump are suited for these types of applications due to their durability and the volume produced by each air operated diaphragm pump. The air operated diaphragm pump, combined with the power of an air compressor, allows cleaning chemicals, paints and other fluids to be dispensed at a constant rate.


FAQ

1. Q: Are you a factory or trading company?

A: We are a factory.

2. Q: What're your payments ?

A: T/T,Western Union,L/C etc.

3. Q: What about the package ?

A: Standard export plywood case or carton.

4. Q: How long is the warranty ?

A: According to international standards, products in standard operation is 1 year,except wearable parts.

5. Q: The use of air diaphragm pump have?

A: air diaphragm pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.

Air diaphragm pump can suck the paint, pigment, glue and adhesive etc.

Air diaphragm pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.

Air diaphragm pump can suck various toxin and flammable or volatility liquid etc.

Air diaphragm pump can suck various strong acid, alkali and corrosive liquid etc.

6. Q: How air diaphragm pump quality and service?

A: Our air diaphragm pump have CE certificate, quality assured, can accept OEM, provide various personalized needs.
