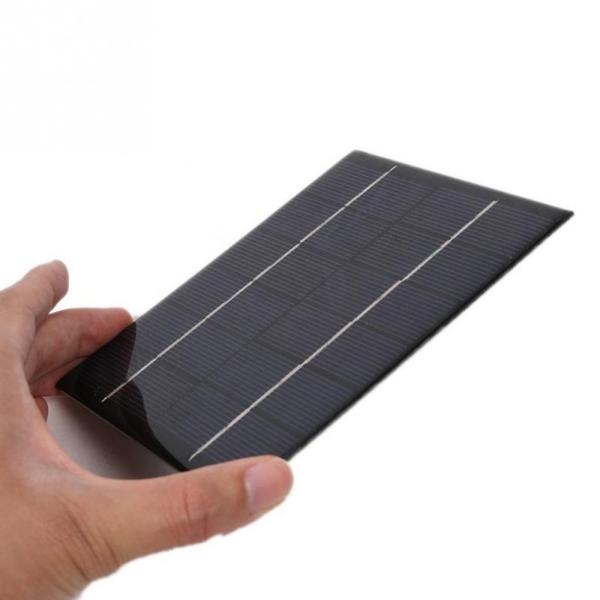

Super Slim Mini Solar Panels 5V 3W PCB / PET Back Sheet For Water Pumping Systems
Super Slim Mini Solar Panels 5V 3W PCB / PET Back Sheet For Water Pumping Systems
Super Slim Mini Solar Panels 5V 3W PCB / PET Back Sheet For Water Pumping Systems
Super Slim Mini Solar Panels 5V 3W PCB / PET Back Sheet For Water Pumping Systems
Super Slim Mini Solar Panels 5V 3W PCB / PET Back Sheet For Water Pumping Systems
Super Slim Mini Solar Panels 5V 3W PCB / PET Back Sheet For Water Pumping Systems
Specifications
Brand Name :
SHINE, OEM
Model Number :
SN-EP3W
Certification :
CE， RoHS, IEC
Place of Origin :
China
MOQ :
100
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000pcs
Delivery Time :
15 days
Packaging Details :
carton
Wattage :
0.5W to 30W
Voltage :
2V, 5V, 6V, 9V, 12V, 18V
Color :
Black
Material :
PET or EPOXY
wranty :
12 Mouth
Back sheet :
PCB or PET
Description

Factory sales epoxy resin 3w 5v 6v 8v 9v mini solar panel for toys


Epoxy solar panel structure

It is a traditional type small solar panel called epoxy resin encapsulated solar panel, which is sticked together by epoxy resin glue at a temperature 50~60 degree, you will see the epoxy resin coated panel have three layers,

1. Epoxy resin AB glue

2. Solar cells

3. PCB Board

Products details
1. Each solar cell is in new condition and not susceptible to micro-crack

2. A proprietary anti-reflective coating provides superior color uniformity

3. Laser-cut for exacting measurements and precision

4. Can be incorporated into several different devices

5. Simple to install or add to your existing product.

6. Small space required for installation.

7. Ready to use, they require no frame or special modifications.

8. For connection, just solder or crimp to the copper tape.

9. Light weighted, very strong and weather resistant.

10. Ideal for OEM and hobby applications.

Products Features:

Model No.: SN-EP3W
Cell Type: mono-crystalline silicon
Cell Efficiency: about 18%
Power Tolerance: +/-3%
Max Output Power (Wmp): 3W
Optimum Operating Voltage (Vmp): 5V
Optimum Operating Current (Imp): 600mah
Open Circuit Voltage (Voc): 6V
Short Circuit Current (Isc): 720mah
Size: Custom size
Material: PET+EVA+Mono Cell+EVA+PCB
Connector 2.1mm male DC barrel connector
Testing Conditions (STC):

Irradiance1000W/m2, Temperature 25°C, AM 1.5
Note: The shape,size and voltage of solar panels can be customized by customers' requirements.

Pictures

Super Slim Mini Solar Panels 5V 3W PCB / PET Back Sheet For Water Pumping SystemsSuper Slim Mini Solar Panels 5V 3W PCB / PET Back Sheet For Water Pumping SystemsSuper Slim Mini Solar Panels 5V 3W PCB / PET Back Sheet For Water Pumping Systems
