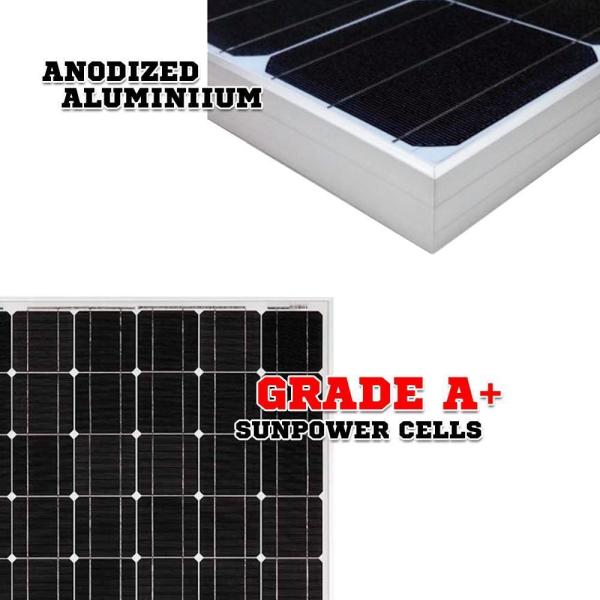

260 Watt Monocrystalline Solar Panel , Small Flexible Solar Panels SN-M260
260 Watt Monocrystalline Solar Panel , Small Flexible Solar Panels SN-M260
260 Watt Monocrystalline Solar Panel , Small Flexible Solar Panels SN-M260
260 Watt Monocrystalline Solar Panel , Small Flexible Solar Panels SN-M260
Specifications
Brand Name :
SHINE OR OEM
Model Number :
SN-M260
Certification :
CE, LVD, TUV, IEC, ROSH, SGS
Place of Origin :
CHINA
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20000 pcs per month
Delivery Time :
15 days
Packaging Details :
single box or 25 pieces per pallet
Max power :
260Watt
Voltage :
30V vmp
Current :
8.66A
Efficiency :
15.90%
SIze :
1650*990*40mm
Junction box :
MC4 Connector
Description

China professional manufacture solar panel 260Watt Monocrystalline Solar Panel

Product Description
Characteristics SN-M240 SN-M250 SN-M260 SN-M270 SN-M280 SN-M290
Maximum Power(Pmax) 240Wp 250Wp 260Wp 270Wp 280Wp 290Wp
Optimum Operating Voltage/Vmp 30.0V 30.0V 30.0V 30.0V 30.0V 30.0V
Optimum Operating Current/Imp 8.00A 8.33A 8.66A 9.00A 9.33A 9.67A
Open Circuit Voltage /Voc 36.0V 36.0V 36.0V 36.0V 36.0V 36.0V
Short Circuit Current /Isc 8.60A 8.93A 9.53A 9.90A 10.26A 10.64A
Module Efficiency 16.4% 15.30% 15.90% 16.50% 17.14% 17.75%
Weight 17Kg 19Kg 19Kg 19Kg 19Kg 19Kg
Numbers of cells 60(6*10) 60(6*10) 60(6*10) 60(6*10) 60(6*10) 60(6*10)
Cell dimension(mm) 156*156 156*156 156*156 156*156 156*156 156*156
Dimensions(mm) 1480*990*35 1650*990*40
Standard test condition Irradiance 1000W/m²,Module temperature 25℃, AM=1.5

Mechanical Characteristics
Power Tolerance ±3 %
Maximum Series Fuse Rating 15A
Maximum System Voltage 1000V DC
Operating Module Temperature -40°C to +80°C
Frame Material Clear Anodized aluminum Frame
Thickness of glass 3.2mm tempered glass
Frame Anodized aluminum alloy
Laminating material EVA
Backsheet material TPT
Junction box Ip65

Temperature Characteristics
Norminal Operating Cell Temperature(NOCT) 45±2℃
Temperature Coefficient of Pmax -0.45%/2℃
Temperature Coefficient of Voc -0.34%/2℃
Temperature Coefficient of Isc -0.050%/2℃

260 Watt Monocrystalline Solar Panel , Small Flexible Solar Panels SN-M260

260 Watt Monocrystalline Solar Panel , Small Flexible Solar Panels SN-M260260 Watt Monocrystalline Solar Panel , Small Flexible Solar Panels SN-M260

Our advantage

1, All of our solar cells pass a rigorous test and selection, to ensure all are high efficient Grade A solar cells.

2, Fully automated production processes, and each production processes with strict monitoring to make sure the solar panels in high quality.

3, Each solar panel will be tested one by one, and we will provide the test reports to you before shipping.

4, Delivery on time, 15-20 days lead time for glass solar panels, and flexible solar panels always have in stock.

5, 25 years warranty

6, We passed the CE, ROHS, ISO9001, TUV, LVD and other certification.

Our Services

1, All of our solar panels can be customized size, voltage, power and shape, and ensure high power and performance.

2, Our sales team 24 hours online, can reply your mail in time.

3, Affordable, delivery on time, 15-20 days lead time for glass solar panels, and flexible solar panels always have in stock.

4, Know well about solar energy industry, can provide specialized guidance to customers, such as the controller, inverter selection, the installation solution and so on.

5, As long as send an order to our company , you will always be our VIP customer, we will actively in updating and adjusting the product price regularly.
