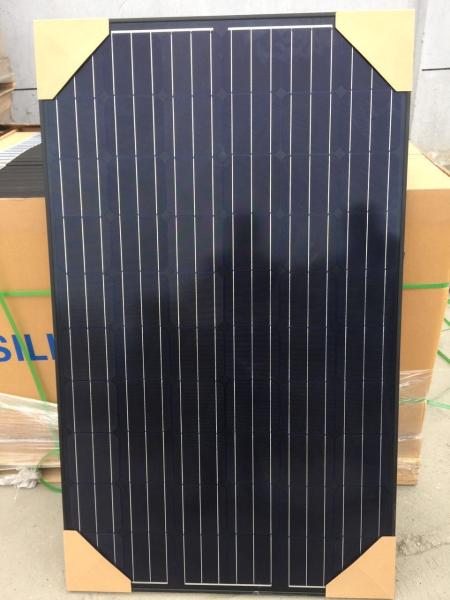

EVA Laminating Flexible Solar Panels 270 Watt Anodized Aluminum Alloy With Black Frame
EVA Laminating Flexible Solar Panels 270 Watt Anodized Aluminum Alloy With Black Frame
EVA Laminating Flexible Solar Panels 270 Watt Anodized Aluminum Alloy With Black Frame
EVA Laminating Flexible Solar Panels 270 Watt Anodized Aluminum Alloy With Black Frame
Specifications
Brand Name :
SHINE OR OEM
Model Number :
SN-M270
Certification :
CE, LVD, TUV, IEC, ROSH, SGS
Place of Origin :
CHINA
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20000 pcs per month
Delivery Time :
15 days
Packaging Details :
single box or 25 pieces per pallet
Max power :
270Watt
Voltage :
30V vmp
Current :
9.00A
Efficiency :
16.5%
SIze :
1650*990*40mm
Junction box :
MC4 Connector
Description

China professional manufacture solar panel 260Watt Monocrystalline Solar Panel

Best Quality Materials Making our High quality solar panels/solar energy/best solar /solar power system :
1. Solar cells------ Germany manufactured Bosch solar cell, efficiency is about 18%
2. Front glass------ high transmission, low iron, tempered glass.
3. EVA-----excellent anti-aging EVA
4. TPT------TPT hot seal made of flame resistance, imported.
5. Aluminum Frame----- Unique aluminium frame design with high mechanical strength for installation. .
6. Junction box----- Ip65 rated, high quality, with diode protection .
Our advantage

1, All of our solar cells pass a rigorous test and selection, to ensure all are high efficient Grade A solar cells.

2, Fully automated production processes, and each production processes with strict monitoring to make sure the solar panels in high quality.

3, Each solar panel will be tested one by one, and we will provide the test reports to you before shipping.

4, Delivery on time, 15-20 days lead time for glass solar panels, and flexible solar panels always have in stock.

5, 25 years warranty

6, We passed the CE, ROHS, ISO9001, TUV, LVD and other certification.

Product Description
Characteristics SN-M240 SN-M250 SN-M260 SN-M270 SN-M280 SN-M290
Maximum Power(Pmax) 240Wp 250Wp 260Wp 270Wp 280Wp 290Wp
Optimum Operating Voltage/Vmp 30.0V 30.0V 30.0V 30.0V 30.0V 30.0V
Optimum Operating Current/Imp 8.00A 8.33A 8.66A 9.00A 9.33A 9.67A
Open Circuit Voltage /Voc 36.0V 36.0V 36.0V 36.0V 36.0V 36.0V
Short Circuit Current /Isc 8.60A 8.93A 9.53A 9.90A 10.26A 10.64A
Module Efficiency 16.4% 15.30% 15.90% 16.50% 17.14% 17.75%
Weight 17Kg 19Kg 19Kg 19Kg 19Kg 19Kg
Numbers of cells 60(6*10) 60(6*10) 60(6*10) 60(6*10) 60(6*10) 60(6*10)
Cell dimension(mm) 156*156 156*156 156*156 156*156 156*156 156*156
Dimensions(mm) 1480*990*35 1650*990*40
Standard test condition Irradiance 1000W/m²,Module temperature 25℃, AM=1.5

Mechanical Characteristics
Power Tolerance ±3 %
Maximum Series Fuse Rating 15A
Maximum System Voltage 1000V DC
Operating Module Temperature -40°C to +80°C
Frame Material Clear Anodized aluminum Frame
Thickness of glass 3.2mm tempered glass
Frame Anodized aluminum alloy
Laminating material EVA
Backsheet material TPT
Junction box Ip65

Temperature Characteristics
Norminal Operating Cell Temperature(NOCT) 45±2℃
Temperature Coefficient of Pmax -0.45%/2℃
Temperature Coefficient of Voc -0.34%/2℃
Temperature Coefficient of Isc -0.050%/2℃

EVA Laminating Flexible Solar Panels 270 Watt Anodized Aluminum Alloy With Black Frame
