36V 350W High Reliable Photovoltaic Solar Panel Golf Cart Roof For Power Station
36V 350W High Reliable Photovoltaic Solar Panel Golf Cart Roof For Power Station
36V 350W High Reliable Photovoltaic Solar Panel Golf Cart Roof For Power Station
36V 350W High Reliable Photovoltaic Solar Panel Golf Cart Roof For Power Station
36V 350W High Reliable Photovoltaic Solar Panel Golf Cart Roof For Power Station
36V 350W High Reliable Photovoltaic Solar Panel Golf Cart Roof For Power Station
Specifications
Brand Name :
SHINE OR OEM
Model Number :
SN-M300
Certification :
CE, LVD, TUV, IEC, ROSH, SGS
Place of Origin :
CHINA
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20000 pcs per month
Delivery Time :
15 days
Packaging Details :
single box or 25 pieces per pallet
Max power :
300Watt
Voltage :
36V vmp
Current :
5.56A
Efficiency :
15.56%
SIze :
1950x990x40mm
Junction box :
IP65
Description

A Grade Monocrystalline Solar Panel 300w 36V mono pv panel with CE RoHS TUV

Specification of this monocrystalline solar panel:

100Watt Monocrystalline Solar Panel
Mechanical Characteristics
Characteristics
SN-M300
Power Tolerance
±3 %
Maximum Power(Pmax)
300Wp
Maximum Series Fuse Rating
15A
Optimum Operating Voltage/Vmp
36.0V
Maximum System Voltage
1000V DC
Optimum Operating Current/Imp
8.33A
Operating Module Temperature
-40°C to +80°C
Open Circuit Voltage /Voc
43.2V
Frame Material
Clear Anodized aluminum Frame
Short Circuit Current /Isc
9.13A
Thickness of glass
3.2mm tempered glass
Module Efficiency
15.54%
Frame
Anodized aluminum alloy
Weight
22Kg
Laminating material
EVA
Numbers of cells
72(6*12)
Backsheet material
TPT
Cell dimension
 156*156mm
Junction box
Ip65
Dimensions(mm)
1950*990*40mm
Standard test condition
Irradiance 1000W/m²,Module temperature 25℃, AM=1.5

GLASS

> Antireflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years(30 years optional)

FRAME

> Conventional frame
> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serra-clip design tensile strength
> Seal-lip designglue injection

SOLAR CELL

> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID

JUNCTION BOX

> Conventional standalone edition and engineering custom edition
> Quality diode ensures module running safety
> IP65 Protection level
> Heat dissipation
> Long service life

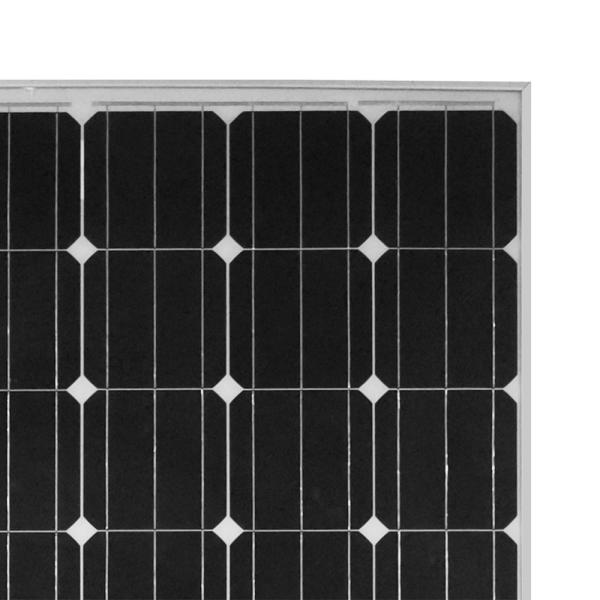

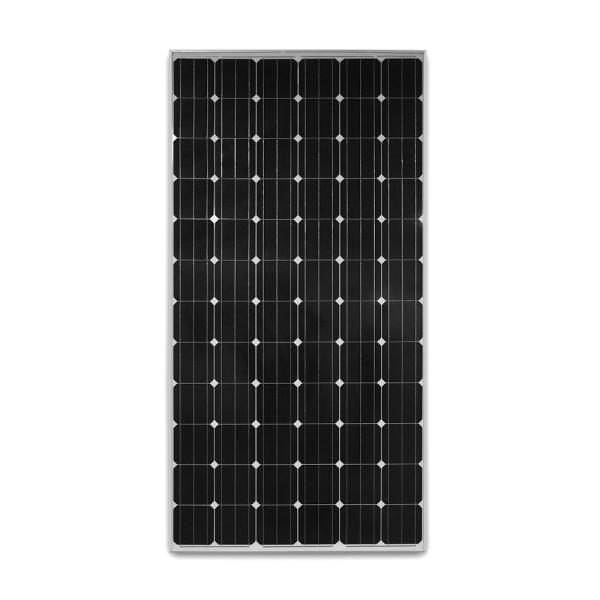

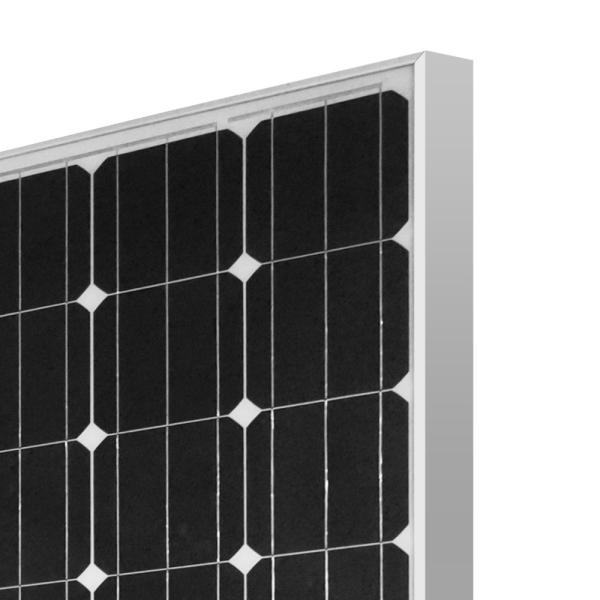

Pictures:
36V 350W High Reliable Photovoltaic Solar Panel Golf Cart Roof For Power Station36V 350W High Reliable Photovoltaic Solar Panel Golf Cart Roof For Power Station
