Specifications
Brand Name :
SHINE OR OEM
Model Number :
SN-H60W
Certification :
CE, RoHS, SGS, LVD
Place of Origin :
China
MOQ :
1
Price :
negiotation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10000 pcs per month
Delivery Time :
5-8 days
Packaging Details :
10 pcs per carton and then on pallet.
Front material :
PET
Solar cell :
SunPower 125*125mm
Size :
725*540*3mm
Weight :
1.0Kgs
Color :
White or Black
Junction box :
IP67 with Diodes
Cable :
90cm with MC4 connectors
Voltage :
18V vmp
Description

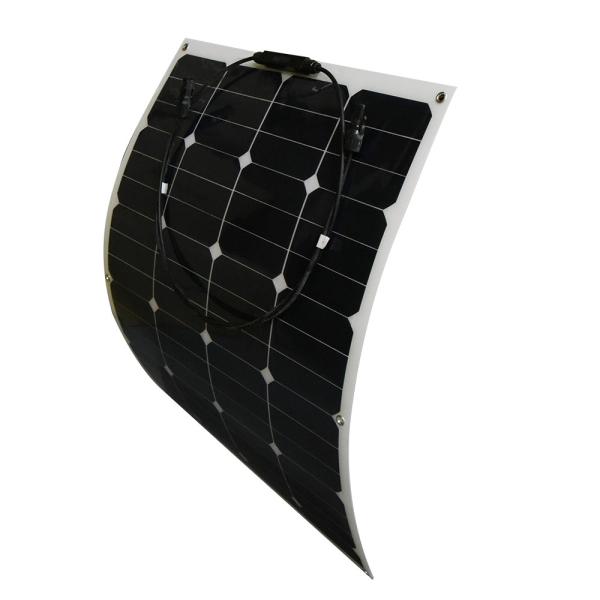

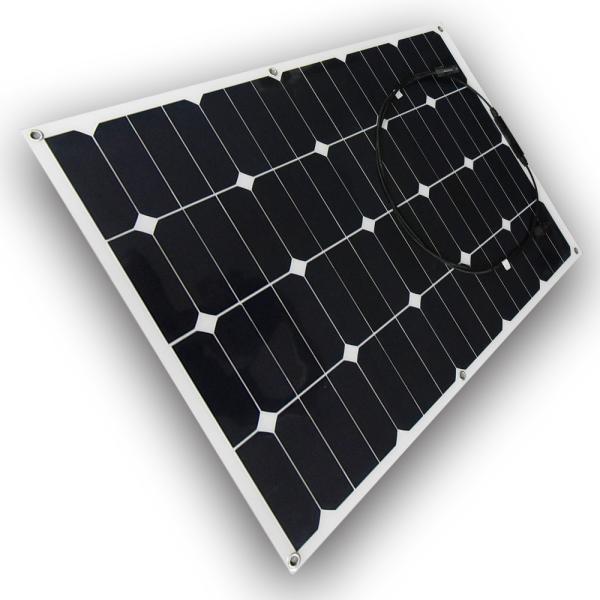

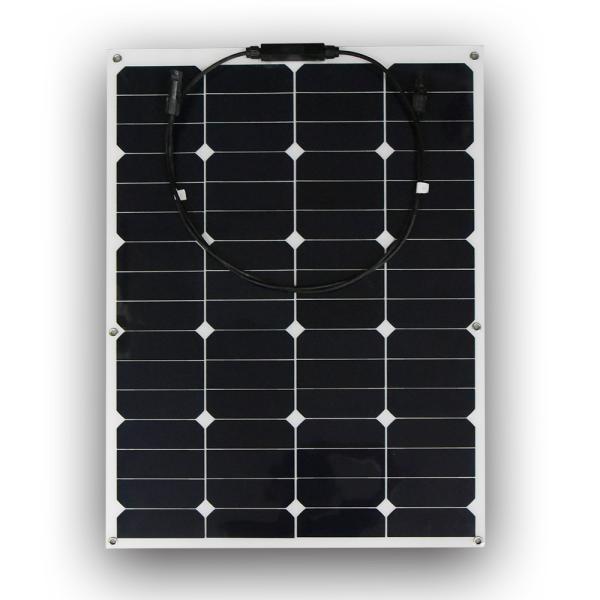

PET flexible solar panel 60 Watt flexible solar panel 12v RV Flexible Solar Panels

The Semi-Flexible solar panel are made by the high efficiency solar cell, it widely apply for the outdoor sports, travel, camping, etc. The solar panel 12V can as the battery charger, 18650 battery charger, AA/AAA rechargeable charger and the USB/car charger. After connecting the controller,

Feature:

High efficiency
The efficiency Monocrystalline solar panel is up to 21%, so it can capture more sunlight than conventional solar panels which is 15% or even lower

Flexible and convenient
It can be curved to a maximum 30 degree arc, which makes it ideal for storage in tight spaces or crowded areas. This solar panel packs 60W of power, but it only weighs 2.0kgs, making it easier to transport, hang and install.

Nice Details
Holes on panels are pre-drilled for fast mounting and securing, perfect for non-permanent installations. The junction box on the panel is sealed and waterproof

Safety Protection
Short circuit and surge protection technology keeps you and your devices safe.
Widely compatible
Applicable for RV, boat, cabin, tent, yachts, car, trucks, trailers, etc

Other model and wattage:

MODEL PM/w VOC/v ISC/A VMP/V IMP/A C-EFF N/W(kg) DIMENSION
(mm)
SN-H18W 18.0 23.7 1.0 19.4 0.9 22.00% 0.3 434*277*3
SN-H25W 25.0 21.6 1.5 18.0 1.4 22.00% 0.6 560*277*3
SN-H30W 30.0 21.2 1.8 17.6 1.7 22.00% 0.5 535*378*3
SN-H50W 50.0 21.2 3.1 17.6 2.8 22.00% 0.7 545*535*3
SN-H60W 60.0 21.0 3.8 17.5 3.4 22.00% 0.9 725*535*3
SN-H95W 95.0 18.5 6.8 15.4 6.2 22.00% 1.2 920*540*3
SN-H110W 110.0 21.6 6.7 18.0 6.1 22.00% 1.4 1050*540*3
SN-H120W 120.0 24.0 6.6 20.0 6.0 22.00% 1.5 1175*540*3
SN-H135W 135.0 27.6 6.5 23.0 5.9 22.00% 1.8 1305*540*3
SN-H150W 150.0 30.0 6.6 25.0 6.0 22.00% 2.0 1435*540*3
SN-H170W 170.0 33.6 6.6 28.0 6.0 22.00% 2.5 1300*660*3
SN-H200W 200.0 40.8 6.4 34.0 5.9 22.00% 3.0 1300*800*3
SN-H220W 220.0 44.4 6.5 37.0 5.9 22.00% 3.5 1435*800*3
SN-H240W 240.0 49.0 6.4 41.0 5.9 22.00% 4.5 1560*800*3
SN-H285W 285.0 57.4 6.5 48.0 5.9 22.00% 5.0 1810*800*3
SN-H310W 310.0 62.4 6.6 52.0 6.0 22.00% 6.2 1680*920*3
SN-H330W 330.0 67.0 6.5 56.0 5.9 22.00% 6.5 1810*920*3

60W Flexible solar panel:

  • Size: 725*540*3MM
  • Material: SunPower Monocrystalline Silicon
  • Number of Cells: 32PCS
  • Max. Power: 60W
  • Nominal Capacity: 60W
  • Pmax(Power at Maximum under STC): 60W
  • Ipm(Current at Max Power, A): 3.4A
  • Vmp(Voltage at Max Power, V): 17.8V
  • Voc(Voltage at Open Circuit, V): 21.6V
  • Isc(Current at Short Circuit,A): 3.84A
  • STC(Standard Testing Condition): 1000W/Square Meter AM=1.5 25 C Degree
  • Max System Voltage: 700VDC
  • Connection Method: 0.9M Cable with terminals
  • Solar Cell Efficiency: 22.0%
  • Customized: Yes

PET flexible solar panel 60 Watt flexible solar panel 12v RV Flexible Solar Panels

PET flexible solar panel 60 Watt flexible solar panel 12v RV Flexible Solar Panels
