Specifications
Brand Name :
SHINE OR OEM
Model Number :
SN-H65W
Certification :
CE, RoHS, SGS, LVD
Place of Origin :
China
MOQ :
1
Price :
negiotation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10000 pcs per month
Delivery Time :
5-8 days
Packaging Details :
10 pcs per carton and then on pallet.
Size :
625*540*3
Weight :
1.0KGS
Color :
White or Black
Junction box :
IP67 with Diodes
Connectors :
90cm with MC4 connectors
Features :
Corrosion Resistant, Flexible, Portable
Application :
Boat/RV/Vehicle/Home
Votlage :
18V
Description

65W RV Flexible Solar Panels With A Grade Solar Cell For Caravans Golf Cars Boats Yacht

The Semi-Flexible solar panel are made by the high efficiency solar cell, it widely apply for the outdoor sports, travel, camping, etc. The solar panel 12V can as the battery charger, 18650 battery charger, AA/AAA rechargeable charger and the USB/car charger. After connecting the controller, the solar panel can charging the cell phone, laptop, iphone, ipad, mobile phone,etc.

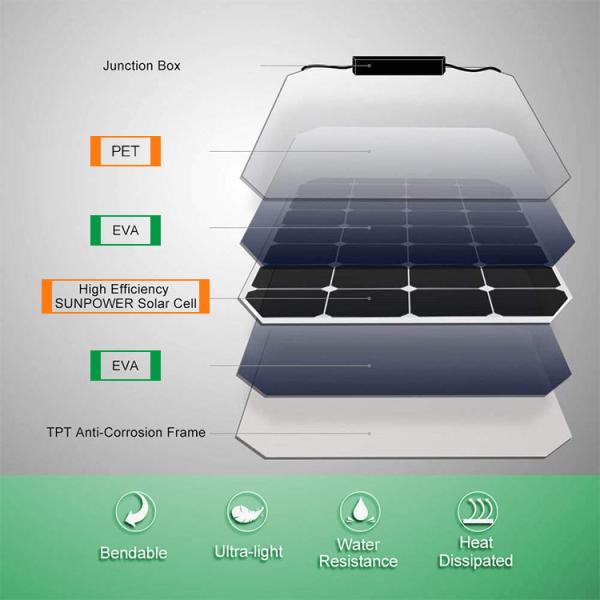

Feature:

1. Highest efficiency available - genuine A Grade Maxeon Gen III cells are supplied directly by Sunpower to our manufacturer
2. IV curve test with flash sun simulator checks that the panel outputs the rated power.
3. PET top layer for UV protection
4. Textured surface for robustness
5. Lightweight
6. Install using double sided high bond tape or adhesive sealant.
7. Eyelets are optional.

60W Flexible solar panel:

1. Size: 625*540*3MM

2. Material: SunPower Monocrystalline Silicon

3. Number of Cells: 32PCS

4. Max. Power: 65W

5. Nominal Capacity: 65W

6. Pmax(Power at Maximum under STC): 65W

7. Ipm(Current at Max Power, A): 3.43A

8. Vmp(Voltage at Max Power, V): 17.6V

9. Voc(Voltage at Open Circuit, V): 21.6V

10.Isc(Current at Short Circuit,A): 3.85A

11. STC(Standard Testing Condition): 1000W/Square Meter AM=1.5 25 C Degree

12. Max System Voltage: 700VDC

13. Connection Method: 0.9M Cable with terminals

14. Solar Cell Efficiency: 22.0%

15. Customized: Yes

Other model and wattage:

MODEL PM/w
Maximum Power		 VOC/v
Open Circuit Voltage		 ISC/A
Short Circuit Current		 VMP/V
Optimum Operating Voltage		 IMP/A
Optimum Operating Current		 N/W(kg) DIMENSION
(mm)
SN-H20W 20.0 23.76 1.10 19.80 1.01 0.3 434*277*3
SN-H25W 25.0 21.60 1.51 18.00 1.39 0.5 560*277*3
SN-H35W 35.0 21.60 2.12 18.00 1.94 0.6 535*378*3
SN-H55W 55.0 21.60 3.33 18.00 3.06 0.7 560*540*3
SN-H65W 65.0 24.60 3.46 20.50 3.17 0.8 625*540*3
SN-H70W 70.0 26.40 3.47 22.00 3.18 0.9 1050*370*3
SN-H80W 80.0 23.76 4.40 19.80 4.04 1.0 810*540*3
SN-H100W 100.0 19.44 6.73 16.20 6.17 1.2 920*540*3
SN-H110W 110.0 21.60 6.66 18.00 6.11 1.6 1050*540*3
SN-H120W 120.0 24.60 6.38 20.50 5.85 1.8 1180*540*3
SN-H140W 140.0 27.60 6.63 23.00 6.09 2.0 1305*540*3
SN-H160W 160.0 30.00 6.98 25.00 6.40 2.2 1435*540*3
SN-H180W 180.0 34.20 6.88 28.50 6.32 2.5 1320*665*3
SN-H200W 200.0 37.56 6.96 31.30 6.39 2.7 1435*665*3
SN-H210W 210.0 41.04 6.69 34.20 6.14 2.9 1300*800*3
SN-H230W 230.0 45.12 6.67 37.60 6.12 3.2 1435*800*3
SN-H250W 250.0 49.20 6.65 41.00 6.10 3.5 1560*800*3
SN-H280W 280.0 53.40 6.86 44.50 6.29 4.0 1680*800*3
SN-H300W 300.0 57.48 6.83 47.90 6.26 4.3 1810*800*3
SN-H330W 330.0 62.16 6.94 51.80 6.37 4.7 1680*920*3
SN-H350W 340.0 67.20 6.62 56.00 6.07 5.2 1810*920*3
