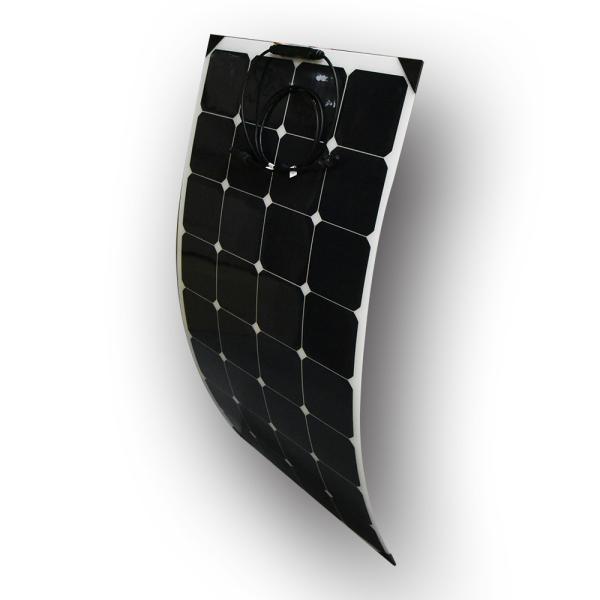

Ultra Thin RV Flexible Solar Panels , 100 Watt Flexible Solar Panel MC4 Connector
Ultra Thin RV Flexible Solar Panels , 100 Watt Flexible Solar Panel MC4 Connector
Ultra Thin RV Flexible Solar Panels , 100 Watt Flexible Solar Panel MC4 Connector
Ultra Thin RV Flexible Solar Panels , 100 Watt Flexible Solar Panel MC4 Connector
Ultra Thin RV Flexible Solar Panels , 100 Watt Flexible Solar Panel MC4 Connector
Ultra Thin RV Flexible Solar Panels , 100 Watt Flexible Solar Panel MC4 Connector
Specifications
Brand Name :
SHINE OR OEM
Model Number :
SN-H100W
Certification :
CE, RoHS, SGS, LVD
Place of Origin :
China
MOQ :
1
Price :
negiotation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10000 pcs per month
Delivery Time :
5-8 days
Packaging Details :
10 pcs per carton and then on pallet.
Front material :
PET
Solar cell :
SunPower 125*125mm
Size :
1050*540*3mm
Weight :
1.7Kgs
Color :
White or Black
Junction box :
IP67 with Diodes
Cable :
90cm with MC4 connectors
Voltage :
18V vmp
Description

Ultra Thin Flexible with MC4 Connector Charging RV Flexible Solar Panel 100W 12V

The Semi-Flexible solar panel are made by the high efficiency solar cell, it widely apply for the outdoor sports, travel, camping, etc. The solar panel 12V can as the battery charger, 18650 battery charger, AA/AAA rechargeable charger and the USB/car charger. After connecting the controller, the solar panel can charging the cell phone, laptop, iphone, ipad, mobile phone,etc.

Feature:

& Thin and flexible

& Efficient

& Lightweight

& Tough and durable

& Cost effective

& No mouting structure required

& Designed for the harsh environment

100W Flexible solar panel:

  • Size: 1050*540*3MM
  • Material: SunPower Monocrystalline Silicon
  • Number of Cells: 32PCS
  • Max. Power: 100W
  • Nominal Capacity: 100W
  • Pmax(Power at Maximum under STC): 100W
  • Ipm(Current at Max Power, A): 5.6A
  • Vmp(Voltage at Max Power, V): 17.6V
  • Voc(Voltage at Open Circuit, V): 21.2V
  • Isc(Current at Short Circuit,A): 6.05A
  • STC(Standard Testing Condition): 1000W/Square Meter AM=1.5 25 C Degree
  • Max System Voltage: 700VDC
  • Connection Method: 0.9M Cable with terminals
  • Solar Cell Efficiency: 22.0%
  • Customized: Yes

Other model and wattage:

Sunpower Semi-Flexible Solar Panel
MODEL PM/W VOC/V ISC/A VMP/V IMP/A N/W(kg) DIMENSION
(mm)
SN-H18W 18.00 23.70 1.03 19.40 0.93 0.32 434*277*3
SN-H20W 20.00 25.00 1.05 20.80 0.96 0.36 455*277*3
SN-H25W 25.00 21.60 1.50 18.00 1.40 0.45 560*277*3
SN-H30W 30.00 21.20 1.83 17.60 1.70 0.54 535*378*3
SN-H50W 50.00 21.20 3.05 17.60 2.84 0.90 545*535*3
SN-H60W 60.00 21.00 3.84 17.50 3.43 1.08 725*535*3
SN-H90W 90.00 18.50 6.30 15.20 5.90 1.60 920*540*3
SN-H100W 100.00 21.60 5.97 17.80 5.62 1.80 1050*540*3
SN-H110W 110.00 23.70 5.91 19.80 5.56 1.98 1175*540*3
SN-H120W 120.00 26.40 5.87 22.00 5.45 2.16 1305*540*3
SN-H135W 135.00 29.50 5.82 24.90 5.45 2.43 1435*540*3
SN-H150W 150.00 32.00 5.90 27.40 5.50 2.70 1300*660*3
SN-H180W 180.00 40.00 6.00 33.00 5.45 3.24 1300*800*3
SN-H200W 200.00 42.00 6.30 35.00 5.70 3.60 1435*800*3
SN-H220W 220.00 48.30 5.90 39.80 5.45 3.96 1560*800*3
SN-H250W 250.00 54.00 6.10 45.00 5.60 4.50 1810*800*3
SN-H300W 300.00 66.00 6.50 55.00 5.45 5.40

1810*920*3
