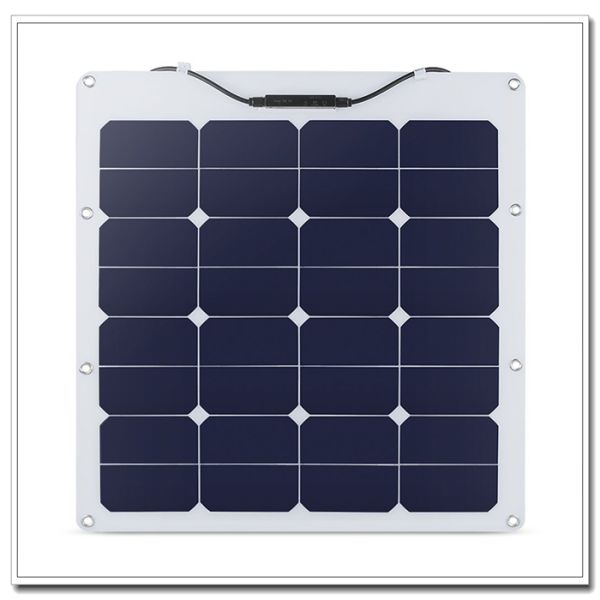

Super Slim 50W Mono Cell Solar Panel , Easy Cleaning SunPower Solar Cells
Super Slim 50W Mono Cell Solar Panel , Easy Cleaning SunPower Solar Cells
Super Slim 50W Mono Cell Solar Panel , Easy Cleaning SunPower Solar Cells
Super Slim 50W Mono Cell Solar Panel , Easy Cleaning SunPower Solar Cells
Specifications
Brand Name :
SHINE OR OEM
Model Number :
SN-H50
Certification :
CE, LVD, TUV, IEC, ROSH, SGS
Place of Origin :
CHINA
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20000 pcs per month
Delivery Time :
15 days
Packaging Details :
single box or 25 pieces per pallet
Max power :
50Watt
Voltage :
17.6V vmp
Current :
2.81A
Efficiency :
21.50%
SIze :
545*535*3mm
Junction box :
MC4 Connector and
Production name :
50Watt FlexibleSolar Panel
Warranty :
5 Years manufacturing warranty
Description

50w flexible solar panel price Mono Cell Solar Panel Sunpower Solar Cells from Shenzhen factory

Mono flexible solar panel feature:

1. High-efficiency silicon solar cells ensure high performance of solar modules and create maximum power output

2. The thickness only 2.5mm, easy joint to your yacht, boat or RV roof, or fixed on your caravans, motorhomes, bicycle and other vehicles for outdoor using

3. Bending angle up to 30 degrees. Durable with aluminum backsheet, no glass

Product Description

Brand OEM/SHINE
Modelnumber SN-H50W
characteristics
Size 545*535*4mm
Cell dimension 125*125mm
No. Of cells 16(4-4) pieces
Electrical Performance
Maximum power voltage 15.36 V
Maximum power current 3.26 A
Open circuit voltage 28.80 V
Short circuit current 3.58 A
Peak power 50W
Power tolerance 0~+3%
Maximum system Voltage (V) 600 V
Working Conditions & Parameters
NOCT cell 46±2 °C
Temperature coefficient Isc (%) +0.04±0.015%/ °C
Temperature coefficient Voc (%) -0.3±0.02%/ °C
Temperature coefficient Pm (%) -0.45±0.05%/ °C
Temperature coefficient Im (%) +0.04%/ °C
Temperature coefficient Vm (%) -0.32±0.02%/ °C
Operating temperatures -40°C ~+90 °C
Surface pressure 60m/s (200kg /m2)

Pictures:

Super Slim 50W Mono Cell Solar Panel , Easy Cleaning SunPower Solar CellsSuper Slim 50W Mono Cell Solar Panel , Easy Cleaning SunPower Solar Cells
