Frameless 180W SunPower High Efficiency Solar Panels Lightweight With PET Surface
Frameless 180W SunPower High Efficiency Solar Panels Lightweight With PET Surface
Frameless 180W SunPower High Efficiency Solar Panels Lightweight With PET Surface
Frameless 180W SunPower High Efficiency Solar Panels Lightweight With PET Surface
Frameless 180W SunPower High Efficiency Solar Panels Lightweight With PET Surface
Frameless 180W SunPower High Efficiency Solar Panels Lightweight With PET Surface
Specifications
Brand Name :
SHINE OR OEM
Model Number :
SN-H180W
Certification :
CE, RoHS, SGS, LVD
Place of Origin :
China
MOQ :
1
Price :
negiotation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10000 pcs per month
Delivery Time :
5-8 days
Packaging Details :
10 pcs per carton and then on pallet.
Size :
1300*800*3mm
Weight :
3.25KGS
Color :
White or Black
Junction box :
IP67 with Diodes
Connectors :
90cm with MC4 connectors
Features :
Corrosion Resistant, Flexible, Portable
Application :
Boat/RV/Vehicle/Home
Warranty :
5 years
Description

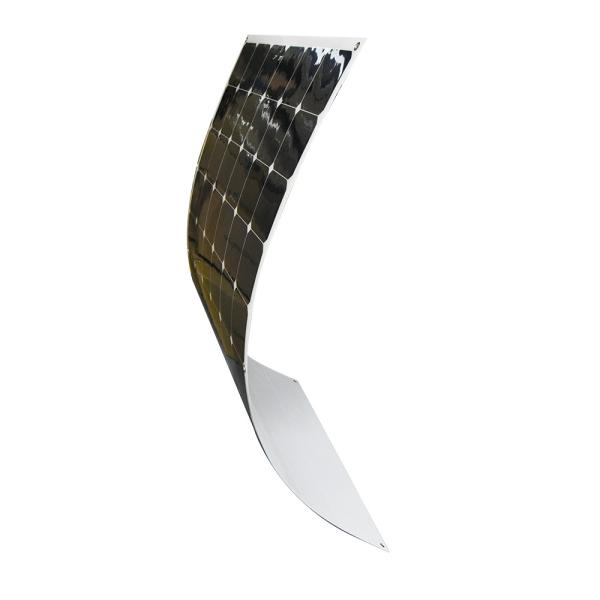

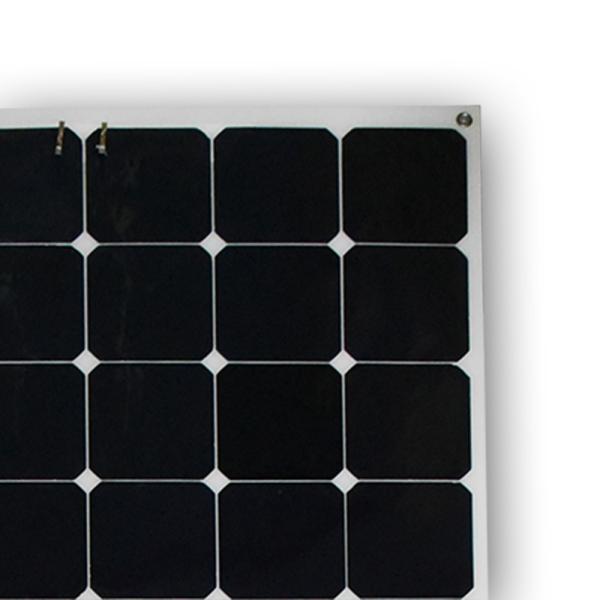

Frameless PET Surface SunPower Flexible Solar Panels 180W

The Semi-Flexible solar panel are made by the high efficiency solar cell, it widely apply for the outdoor sports, travel, camping, etc. The solar panel 12V can as the battery charger, 18650 battery charger, AA/AAA rechargeable charger and the USB/car charger. After connecting the controller, the solar panel can charging the cell phone, laptop, iphone, ipad, mobile phone,etc.

Feature:

** Highest efficiency available - genuine A Grade Maxeon Gen III cells are supplied directly by Sunpower to our manufacturer
*** IV curve test with flash sun simulator checks that the panel outputs the rated power.
*** PET top layer for UV protection
*** Textured surface for robustness
*** Lightweight
*** Install using double sided high bond tape or adhesive sealant.
*** Eyelets are optional.

180W Flexible solar panel:

  • Item 180W Sunpower flexible solar panel
    Solar panel size : 1300*800*3mm
    Product net weight : 3.24KG
    Solar cell: Sunpower solar cell
    Efficiency: 21.50%
    Maximum power(Pm): 180W
    Voltage at max power(Vmp): 33.0(V)
    Current at max power(Imp): 5.46(A)
    Short circuit current(Isc): 6.0(A)
    Open circuit voltage(Voc): 40.0(V)
    Numberof cells and connections : 60pcs(6*10)
    Connector : MC4
    Junction box : IP65
    Operating Temperature : - 40℃-+85℃

Other model and wattage:

Sunpower Semi-Flexible Solar Panel
MODEL PM/W VOC/V ISC/A VMP/V IMP/A N/W(kg) DIMENSION
(mm)
SN-H18W 18.00 23.70 1.03 19.40 0.93 0.32 434*277*3
SN-H20W 20.00 25.00 1.05 20.80 0.96 0.36 455*277*3
SN-H25W 25.00 21.60 1.50 18.00 1.40 0.45 560*277*3
SN-H30W 30.00 21.20 1.83 17.60 1.70 0.54 535*378*3
SN-H50W 50.00 21.20 3.05 17.60 2.84 0.90 545*535*3
SN-H60W 60.00 21.00 3.84 17.50 3.43 1.08 725*535*3
SN-H90W 90.00 18.50 6.30 15.20 5.90 1.60 920*540*3
SN-H100W 100.00 21.60 5.97 17.80 5.62 1.80 1050*540*3
SN-H110W 110.00 23.70 5.91 19.80 5.56 1.98 1175*540*3
SN-H120W 120.00 26.40 5.87 22.00 5.45 2.16 1305*540*3
SN-H135W 135.00 29.50 5.82 24.90 5.45 2.43 1435*540*3
SN-H150W 150.00 32.00 5.90 27.40 5.50 2.70 1300*660*3
SN-H180W 180.00 40.00 6.00 33.00 5.45 3.24 1300*800*3
SN-H200W 200.00 42.00 6.30 35.00 5.70 3.60 1435*800*3
SN-H220W 220.00 48.30 5.90 39.80 5.45 3.96 1560*800*3
SN-H250W 250.00 54.00 6.10 45.00 5.60 4.50 1810*800*3
SN-H300W 300.00 66.00 6.50 55.00 5.45 5.40

1810*920*3
