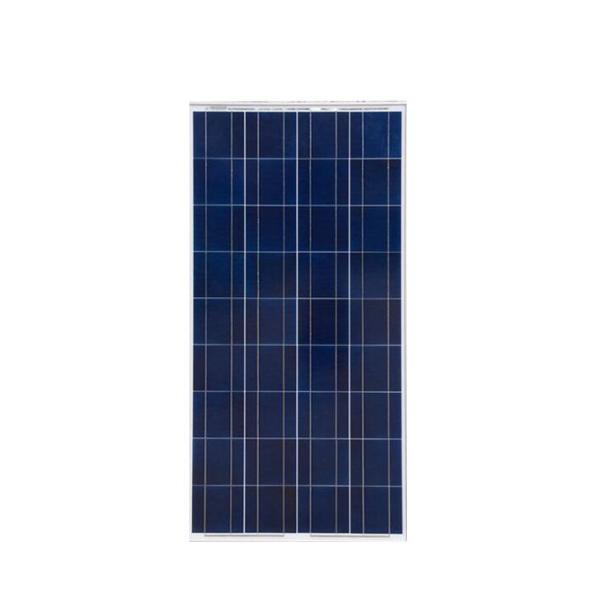

160 Watt Polycrystalline PV Solar Panel High Efficiency With Antireflective Glass
160 Watt Polycrystalline PV Solar Panel High Efficiency With Antireflective Glass
160 Watt Polycrystalline PV Solar Panel High Efficiency With Antireflective Glass
160 Watt Polycrystalline PV Solar Panel High Efficiency With Antireflective Glass
Specifications
Brand Name :
SHINE or OEM
Model Number :
SN-P160w
Certification :
CE，RoHS, TUV, IEC, SGS, ISO
Place of Origin :
China
MOQ :
1 pc
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
15000 pcs per month
Delivery Time :
15 working days
Packaging Details :
single box or 25 pcs per pallet
cells :
36pcs 156mm Taiwan Poly cells
Voltage :
18V
Junction box :
IP65 waterproof with diodes
Cable :
90cm UV resistance
Color :
sliver or black
Warranty :
5Year manufacturing warranty 12 Year 90% 25Year 80%
Description

Factory Price High Efficiency Poly 160Watt Solar PV Panel With Excellent Quality

There're 7 major inspection procedures for Each piece solar panels during production :
3 times EL testing to ensure panel without micro-break/invisible break ;
3 times appearance inspection to ensure solar panel without defect ;
1 time solar power testing, solar power inspection tolerance +/3watt, we ensure each solar panel has enough solar power output; besides standard inspection, each production procedure will inspect the upwards procedure;
So we guarantee each piece of our solar energy photovoltaic panel has perfect appearance, positive solar power performance, and without quality hidden trouble.

• Advanced technology, professional manufacture, and excellent quality solar panels /solar energy /solar power .
• High solar enegy solar power conversion efficiency, low solar panel price
• Anti-reflective and high viscous EVA
• High light transmission Anti-reflective glass
• 10-12 years solar power warranty, 25 years limited solar power warranty.
• Strong productive ability and quick delivery .

Product Description

Characteristics SN-P100 SN-P130 SN-P140 SN-P150 SN-P160
Maximum Power(Pmax) 100Wp 130Wp 140Wp 150Wp 160Wp
Optimum Operating Voltage/Vmp 18.0V 18.0V 18.0V 18.0V 18.0V
Optimum Operating Current/Imp 5.56A 7.22A 7.76A 8.33A 8.89A
Open Circuit Voltage /Voc 21.6V 21.6V 21.6V 21.6V 21.6V
Short Circuit Current /Isc 5.76A 7.42A 7.96A 8.53A 9.78A
Module Efficiency 14.60% 13.10% 14.10% 15.10% 16.13%
Weight 7.2Kg 10.2Kg 10.2Kg 10.2Kg 10.2Kg
Numbers of cells 36(4*9) 36(4*9) 36(4*9) 36(4*9) 36(4*9)
Cell dimension(mm) 156*104 156*156 156*156 156*156 156*156
Dimensions(mm) 1020*670*30 1480*670*35
Standard test condition Irradiance 1000W/m²,Module temperature 25℃, AM=1.5

Mechanical Characteristics
Power Tolerance ±3 %
Maximum Series Fuse Rating 15A
Maximum System Voltage 1000V DC
Operating Module Temperature -40°C to +80°C
Frame Material Clear Anodized aluminum Frame
Thickness of glass 3.2mm tempered glass
Frame Anodized aluminum alloy
Laminating material EVA
Backsheet material TPT
Junction box Ip65
Mechanical Characteristics
Power Tolerance ±3 %
Maximum Series Fuse Rating 15A
Maximum System Voltage 1000V DC
Operating Module Temperature -40°C to +80°C
Frame Material Clear Anodized aluminum Frame
Thickness of glass 3.2mm tempered glass
Frame Anodized aluminum alloy
Laminating material EVA
Backsheet material TPT
Junction box Ip65

Temperature Characteristics
Norminal Operating Cell Temperature(NOCT) 45±2℃
Temperature Coefficient of Pmax -0.45%/2℃
Temperature Coefficient of Voc -0.34%/2℃
Temperature Coefficient of Isc -0.050%/2℃
