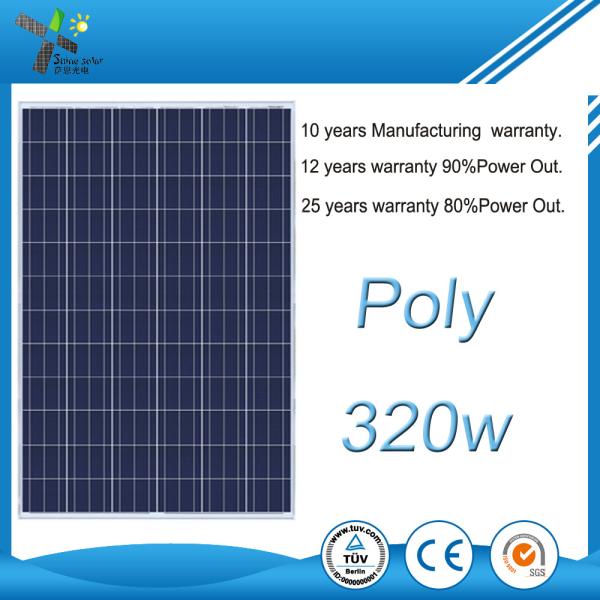

High Efficiency Poly Crystalline Solar Panel 320W With 90cm UV Resistance Cable
High Efficiency Poly Crystalline Solar Panel 320W With 90cm UV Resistance Cable
High Efficiency Poly Crystalline Solar Panel 320W With 90cm UV Resistance Cable
High Efficiency Poly Crystalline Solar Panel 320W With 90cm UV Resistance Cable
Specifications
Brand Name :
SHINE or OEM
Model Number :
SN-P320W
Certification :
CE，RoHS, TUV, IEC, SGS, ISO
Place of Origin :
China
MOQ :
1 pc
Price :
Negociation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
15000 pcs per month
Delivery Time :
15 working days
Packaging Details :
single box or 25 pcs per pallet
cells :
72 pcs 156mm Taiwan Poly cells
Voltage :
36V
Junction box :
IP65 waterproof with diodes
Cable :
90cm UV resistance
Color :
sliver or black
Warranty :
10Years Manufacturing Warranty 15Years 90% Output 25Years 80% Output
Description

320w quality approved high efficiency Polycrystalline solar Panel poly-crystalline for cheap sale

There're 7 major inspection procedures for Each piece solar panels during production :

3 times EL testing to ensure panel without micro-break/invisible break ;

3 times appearance inspection to ensure solar panel without defect ;

1 time solar power testing, solar power inspection tolerance +/3watt, we ensure each solar panel has enough solar power output; besides standard inspection, each production procedure will inspect the upwards procedure;

• So we guarantee each piece of our solar energy photovoltaic panel has perfect appearance, positive solar power performance, and without quality hidden trouble.

1. High conversion efficiency solar cells based on innovative photovoltaic technologies.

2. High stability 100% A grade photovoltaic cells with guaranteed +-3% solar power output tolerance,ensuring investment return.

3.Tempered front glass withstands high wind-pressure and snow load.

4. Easy to install.

• Advanced technology, professional manufacture, and excellent quality solar panels /solar energy /solar power .

• High solar enegy solar power conversion efficiency, low solar panel price

• Anti-reflective and high viscous EVA

• High light transmission Anti-reflective glass

• 10-12 years solar power warranty, 25 years limited solar power warranty.

• Strong productive ability and quick delivery .

Efficiency

1. Low voltage-temperature coefficient allows higher solar power output at high-temperature condition.

2. High efficient, high reliable photovoltaic solar cells ensure our product output stability.

Best Quality Materials Making our High quality solar panels/solar energy/best solar /solar power system :

1. Solar cells------ Germany manufactured Bosch solar cell, efficiency is about 18%

2. Front glass------ high transmission, low iron, tempered glass.

3. EVA-----excellent anti-aging EVA

4. TPT------TPT hot seal made of flame resistance, imported.

5. Aluminum Frame----- Unique aluminium frame design with high mechanical strength for installation. .

6. Junction box----- Ip65 rated, high quality, with diode protection .

Product Description

280-320Watt Polycrystalline Solar Panel
Characteristics SN-P280 SN-P285 SN-P290 SN-P295 SN-P300 SN-P310 SN-P320
Maximum Power(Pmax) 280Wp 285Wp 290Wp 295Wp 300Wp 310Wp 320Wp
Optimum Operating Voltage/Vmp 36.0V 36.0V 36.0V 36.0V 36.0V 36.0V 36.0V
Optimum Operating Current/Imp 7.78A 7.9A 8.06A 8.19A 8.33A 8.61A 8.89A
Open Circuit Voltage /Voc 43.2V 43.2V 43.2V 43.2V 43.2V 43.2V 43.2V
Short Circuit Current /Isc 8.48A 8.69A 8.76A 9.01A 9.13A 9.47A 9.78A
Module Efficiency 14.5% 14.76% 15.02% 15.90% 15.54% 16.05% 16.58%
Weight 22Kg 22Kg 22Kg 22Kg 22Kg 22Kg 22Kg
Numbers of cells 72(6*12) 72(6*12) 72(6*12) 72(6*12) 72(6*12) 72(6*12) 72(6*12)
Cell dimension(mm) 156*156 156*156 156*156 156*156 156*156 156*156 156*156
Dimensions(mm) 1950*990*40
Standard test condition Irradiance 1000W/m²,Module temperature 25℃, AM=1.5

Mechanical Characteristics
Power Tolerance ±3 %
Maximum Series Fuse Rating 15A
Maximum System Voltage 1000V DC
Operating Module Temperature -40°C to +80°C
Frame Material Clear Anodized aluminum Frame
Thickness of glass 3.2mm tempered glass
Frame Anodized aluminum alloy
Laminating material EVA
Backsheet material TPT
Junction box Ip65
Mechanical Characteristics
Power Tolerance ±3 %
Maximum Series Fuse Rating 15A
Maximum System Voltage 1000V DC
Operating Module Temperature -40°C to +80°C
Frame Material Clear Anodized aluminum Frame
Thickness of glass 3.2mm tempered glass
Frame Anodized aluminum alloy
Laminating material EVA
Backsheet material TPT
Junction box Ip65

Temperature Characteristics
Norminal Operating Cell Temperature(NOCT) 45±2℃
Temperature Coefficient of Pmax -0.45%/2℃
Temperature Coefficient of Voc -0.34%/2℃
Temperature Coefficient of Isc -0.050%/2℃
High Efficiency Poly Crystalline Solar Panel 320W With 90cm UV Resistance CableHigh Efficiency Poly Crystalline Solar Panel 320W With 90cm UV Resistance Cable
