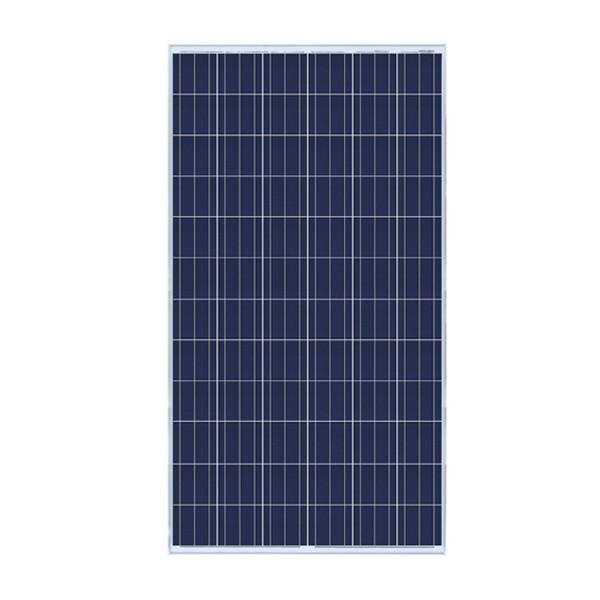

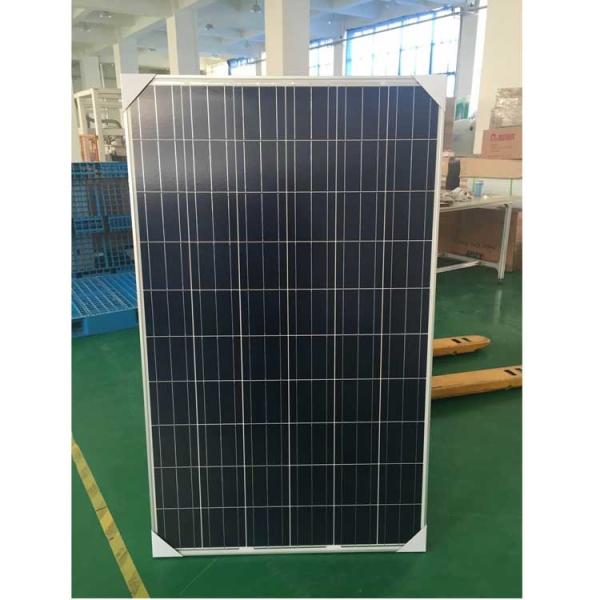

A Grade Polycrystalline Solar Panel , Photovoltaic Mini Solar Panels 300W For Home System
A Grade Polycrystalline Solar Panel , Photovoltaic Mini Solar Panels 300W For Home System
A Grade Polycrystalline Solar Panel , Photovoltaic Mini Solar Panels 300W For Home System
A Grade Polycrystalline Solar Panel , Photovoltaic Mini Solar Panels 300W For Home System
Specifications
Brand Name :
SHINE or OEM
Model Number :
SN-P100W
Certification :
CE，RoHS, TUV, IEC, SGS, ISO
Place of Origin :
China
MOQ :
1 pc
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
15000 pcs per month
Delivery Time :
15 working days
Packaging Details :
single box or 25 pcs per pallet
cells :
36pcs
Voltage :
18V
Junction box :
IP65 waterproof with diodes
Cable :
90cm UV resistance
Color :
sliver or black
Warranty :
5Year manufacturing warranty 12 Year 90% 25Year 80%
Description

A Grade Photovoltaic cell made 300W Polycrystalline solar panel for your home best solar power system

Our Services

1, All of our solar panels can be customized size, voltage, power and shape, and ensure high power and performance.

2, Our sales team 24 hours online, can reply your mail in time.

3, Affordable, delivery on time, 15-20 days lead time for glass solar panels, and flexible solar panels always have in stock.

4, Know well about solar energy industry, can provide specialized guidance to customers, such as the controller, inverter selection, the installation solution and so on.

5, As long as send an order to our company , you will always be our VIP customer, we will actively in updating and adjusting the product price regularly.

Product Description

100-160Watt Polycrystalline Solar Panel
Characteristics SN-P100 SN-P130 SN-P140 SN-P150 SN-P160
Maximum Power(Pmax) 100Wp 130Wp 140Wp 150Wp 160Wp
Optimum Operating Voltage/Vmp 18.0V 18.0V 18.0V 18.0V 18.0V
Optimum Operating Current/Imp 5.56A 7.22A 7.76A 8.33A 8.89A
Open Circuit Voltage /Voc 21.6V 21.6V 21.6V 21.6V 21.6V
Short Circuit Current /Isc 5.76A 7.42A 7.96A 8.53A 9.78A
Module Efficiency 14.60% 13.10% 14.10% 15.10% 16.13%
Weight 7.2Kg 10.2Kg 10.2Kg 10.2Kg 10.2Kg
Numbers of cells 36(4*9) 36(4*9) 36(4*9) 36(4*9) 36(4*9)
Cell dimension(mm) 156*104 156*156 156*156 156*156 156*156
Dimensions(mm) 1020*670*30 1480*670*35
Standard test condition Irradiance 1000W/m²,Module temperature 25℃, AM=1.5

Mechanical Characteristics
Power Tolerance ±3 %
Maximum Series Fuse Rating 15A
Maximum System Voltage 1000V DC
Operating Module Temperature -40°C to +80°C
Frame Material Clear Anodized aluminum Frame
Thickness of glass 3.2mm tempered glass
Frame Anodized aluminum alloy
Laminating material EVA
Backsheet material TPT
Junction box Ip65
Mechanical Characteristics
Power Tolerance ±3 %
Maximum Series Fuse Rating 15A
Maximum System Voltage 1000V DC
Operating Module Temperature -40°C to +80°C
Frame Material Clear Anodized aluminum Frame
Thickness of glass 3.2mm tempered glass
Frame Anodized aluminum alloy
Laminating material EVA
Backsheet material TPT
Junction box Ip65

Temperature Characteristics
Norminal Operating Cell Temperature(NOCT) 45±2℃
Temperature Coefficient of Pmax -0.45%/2℃
Temperature Coefficient of Voc -0.34%/2℃
Temperature Coefficient of Isc -0.050%/2℃

A Grade Polycrystalline Solar Panel , Photovoltaic Mini Solar Panels 300W For Home System
