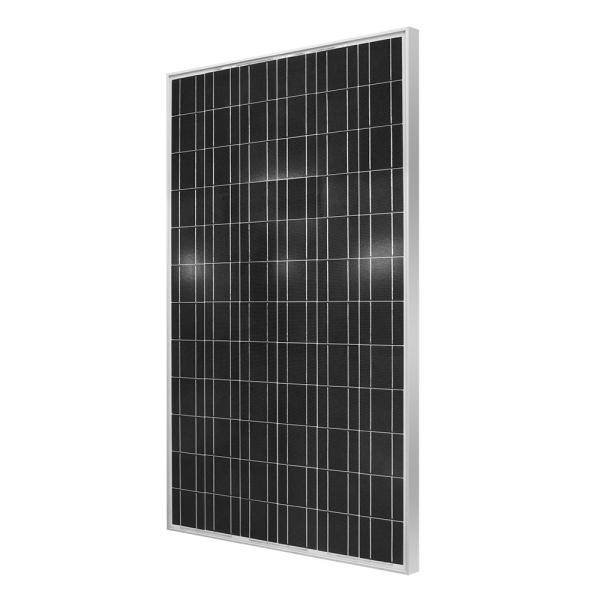

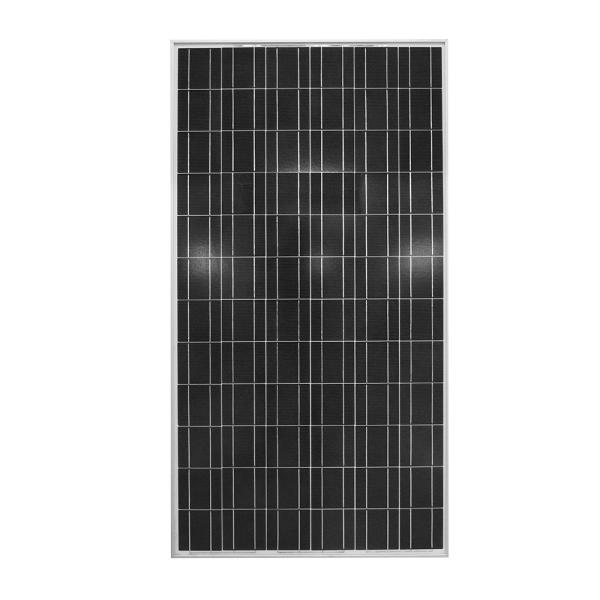

UV Resistance Polycrystalline PV Solar Panel 280 Watt 300 Watt For Power Station
UV Resistance Polycrystalline PV Solar Panel 280 Watt 300 Watt For Power Station
UV Resistance Polycrystalline PV Solar Panel 280 Watt 300 Watt For Power Station
UV Resistance Polycrystalline PV Solar Panel 280 Watt 300 Watt For Power Station
UV Resistance Polycrystalline PV Solar Panel 280 Watt 300 Watt For Power Station
UV Resistance Polycrystalline PV Solar Panel 280 Watt 300 Watt For Power Station
Specifications
Brand Name :
SHINE or OEM
Model Number :
SN-P280W
Certification :
CE，RoHS, TUV, IEC, SGS, ISO
Place of Origin :
China
MOQ :
1 pc
Price :
USD0.3~0.35/wp
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
15000 pcs per month
Delivery Time :
15 working days
Packaging Details :
single box or 25 pcs per pallet
cells :
72 pcs 156mm Taiwan Poly cells
Voltage :
36V
Junction box :
IP65 waterproof with diodes
Cable :
90cm UV resistance
Color :
sliver or black
Description

PV modules Polycrystaline Solar Panel 300Watt 280w solar module for power station

Our advantage

1, All of our solar cells pass a rigorous test and selection, to ensure all are high efficient Grade A solar cells.

2, Fully automated production processes, and each production processes with strict monitoring to make sure the solar panels in high quality.

3, Each solar panel will be tested one by one, and we will provide the test reports to you before shipping.

4, Delivery on time, 15-20 days lead time for glass solar panels, and flexible solar panels always have in stock.

5, 25 years warranty

6, We passed the CE, ROHS, ISO9001, TUV, LVD and other certification.

Our Services

1, All of our solar panels can be customized size, voltage, power and shape, and ensure high power and performance.

2, Our sales team 24 hours online, can reply your mail in time.

3, Affordable, delivery on time, 15-20 days lead time for glass solar panels, and flexible solar panels always have in stock.

4, Know well about solar energy industry, can provide specialized guidance to customers, such as the controller, inverter selection, the installation solution and so on.

Product Description

280-320Watt Polycrystalline Solar Panel
Characteristics SN-P280 SN-P285 SN-P290 SN-P295 SN-P300 SN-P310 SN-P320
Maximum Power(Pmax) 280Wp 285Wp 290Wp 295Wp 300Wp 310Wp 320Wp
Optimum Operating Voltage/Vmp 36.0V 36.0V 36.0V 36.0V 36.0V 36.0V 36.0V
Optimum Operating Current/Imp 7.78A 7.9A 8.06A 8.19A 8.33A 8.61A 8.89A
Open Circuit Voltage /Voc 43.2V 43.2V 43.2V 43.2V 43.2V 43.2V 43.2V
Short Circuit Current /Isc 8.48A 8.69A 8.76A 9.01A 9.13A 9.47A 9.78A
Module Efficiency 14.5% 14.76% 15.02% 15.90% 15.54% 16.05% 16.58%
Weight 22Kg 22Kg 22Kg 22Kg 22Kg 22Kg 22Kg
Numbers of cells 72(6*12) 72(6*12) 72(6*12) 72(6*12) 72(6*12) 72(6*12) 72(6*12)
Cell dimension(mm) 156*156 156*156 156*156 156*156 156*156 156*156 156*156
Dimensions(mm) 1950*990*40
Standard test condition Irradiance 1000W/m²,Module temperature 25℃, AM=1.5

Mechanical Characteristics
Power Tolerance ±3 %
Maximum Series Fuse Rating 15A
Maximum System Voltage 1000V DC
Operating Module Temperature -40°C to +80°C
Frame Material Clear Anodized aluminum Frame
Thickness of glass 3.2mm tempered glass
Frame Anodized aluminum alloy
Laminating material EVA
Backsheet material TPT
Junction box Ip65
Mechanical Characteristics
Power Tolerance ±3 %
Maximum Series Fuse Rating 15A
Maximum System Voltage 1000V DC
Operating Module Temperature -40°C to +80°C
Frame Material Clear Anodized aluminum Frame
Thickness of glass 3.2mm tempered glass
Frame Anodized aluminum alloy
Laminating material EVA
Backsheet material TPT
Junction box Ip65

Temperature Characteristics
Norminal Operating Cell Temperature(NOCT) 45±2℃
Temperature Coefficient of Pmax -0.45%/2℃
Temperature Coefficient of Voc -0.34%/2℃
Temperature Coefficient of Isc -0.050%/2℃

UV Resistance Polycrystalline PV Solar Panel 280 Watt 300 Watt For Power StationUV Resistance Polycrystalline PV Solar Panel 280 Watt 300 Watt For Power StationUV Resistance Polycrystalline PV Solar Panel 280 Watt 300 Watt For Power Station
