4BB / 5BB Polycrystalline Solar Panel 300 Watt 320 Watt With CE UL Certificated
4BB / 5BB Polycrystalline Solar Panel 300 Watt 320 Watt With CE UL Certificated
4BB / 5BB Polycrystalline Solar Panel 300 Watt 320 Watt With CE UL Certificated
4BB / 5BB Polycrystalline Solar Panel 300 Watt 320 Watt With CE UL Certificated
4BB / 5BB Polycrystalline Solar Panel 300 Watt 320 Watt With CE UL Certificated
4BB / 5BB Polycrystalline Solar Panel 300 Watt 320 Watt With CE UL Certificated
4BB / 5BB Polycrystalline Solar Panel 300 Watt 320 Watt With CE UL Certificated
4BB / 5BB Polycrystalline Solar Panel 300 Watt 320 Watt With CE UL Certificated
Specifications
Brand Name :
SHINE or OEM
Model Number :
SN-P300W
Certification :
CE，RoHS, TUV, IEC, SGS, ISO
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
15000 pcs per month
Delivery Time :
15 working days
Packaging Details :
single box or 25 pcs per pallet
cells :
72 pcs 156mm Taiwan Poly cells
Voltage :
36V

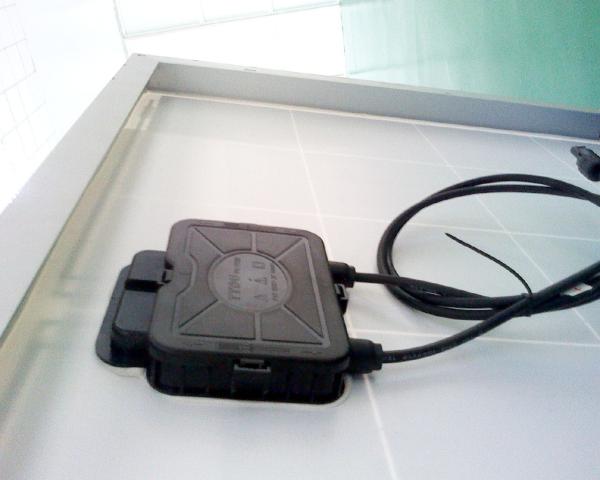

Junction box :
IP65 waterproof with diodes
Cable :
90cm UV resistance
Color :
sliver or black
Description

4BB , 5BB cells CE/IEC/TUV/UL Certificate Poly 300W,320Watt solar panel

280-320Watt Polycrystalline Solar Panel
Characteristics SN-P280 SN-P285 SN-P290 SN-P295 SN-P300 SN-P310 SN-P320
Maximum Power(Pmax) 280Wp 285Wp 290Wp 295Wp 300Wp 310Wp 320Wp
Optimum Operating Voltage/Vmp 36.0V 36.0V 36.0V 36.0V 36.0V 36.0V 36.0V
Optimum Operating Current/Imp 7.78A 7.9A 8.06A 8.19A 8.33A 8.61A 8.89A
Open Circuit Voltage /Voc 43.2V 43.2V 43.2V 43.2V 43.2V 43.2V 43.2V
Short Circuit Current /Isc 8.48A 8.69A 8.76A 9.01A 9.13A 9.47A 9.78A
Module Efficiency 14.5% 14.76% 15.02% 15.90% 15.54% 16.05% 16.58%
Weight 22Kg 22Kg 22Kg 22Kg 22Kg 22Kg 22Kg
Numbers of cells 72(6*12) 72(6*12) 72(6*12) 72(6*12) 72(6*12) 72(6*12) 72(6*12)
Cell dimension(mm) 156*156 156*156 156*156 156*156 156*156 156*156 156*156
Dimensions(mm) 1950*990*40
Standard test condition Irradiance 1000W/m²,Module temperature 25℃, AM=1.5

Mechanical Characteristics
Power Tolerance ±3 %
Maximum Series Fuse Rating 15A
Maximum System Voltage 1000V DC
Operating Module Temperature -40°C to +80°C
Frame Material Clear Anodized aluminum Frame
Thickness of glass 3.2mm tempered glass
Frame Anodized aluminum alloy
Laminating material EVA
Backsheet material TPT
Junction box Ip65

4BB / 5BB Polycrystalline Solar Panel 300 Watt 320 Watt With CE UL Certificated
