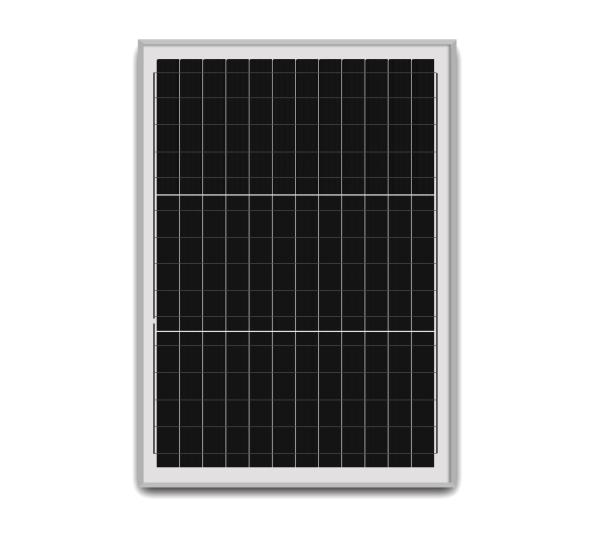

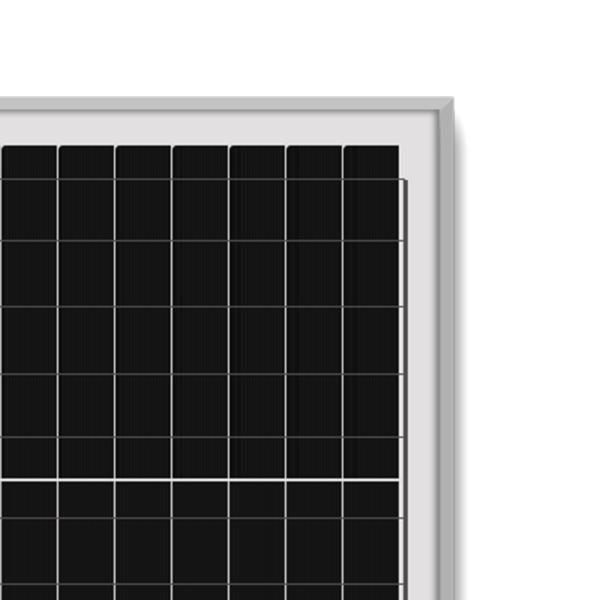

Photovoltaic Polycrystalline Silicon Solar Cells 12 Volt 50 Watt For Street Light
Photovoltaic Polycrystalline Silicon Solar Cells 12 Volt 50 Watt For Street Light
Photovoltaic Polycrystalline Silicon Solar Cells 12 Volt 50 Watt For Street Light
Photovoltaic Polycrystalline Silicon Solar Cells 12 Volt 50 Watt For Street Light
Photovoltaic Polycrystalline Silicon Solar Cells 12 Volt 50 Watt For Street Light
Photovoltaic Polycrystalline Silicon Solar Cells 12 Volt 50 Watt For Street Light
Photovoltaic Polycrystalline Silicon Solar Cells 12 Volt 50 Watt For Street Light
Photovoltaic Polycrystalline Silicon Solar Cells 12 Volt 50 Watt For Street Light
Specifications
Brand Name :
SHINE or OEM
Model Number :
SN-P50W
Certification :
CE，RoHS, TUV, IEC, SGS, ISO
Place of Origin :
China
MOQ :
1 pc
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
15000 pcs per month
Delivery Time :
15 working days
Packaging Details :
single box or 25 pcs per pallet
cells :
36pcs
Voltage :
18V
Junction box :
IP65 waterproof with diodes
Cable :
90cm UV resistance
Color :
sliver or black
Warranty :
5Year manufacturing warranty 12 Year 90% 25Year 80%
Description

12v 50w solar panel Photovoltaic Polycrystaline Solar Panel for street light

Our advantage

1, All of our solar cells pass a rigorous test and selection, to ensure all are high efficient Grade A solar cells.

2, Fully automated production processes, and each production processes with strict monitoring to make sure the solar panels in high quality.

3, Each solar panel will be tested one by one, and we will provide the test reports to you before shipping.

4, Delivery on time, 15-20 days lead time for glass solar panels, and flexible solar panels always have in stock.

5, 25 years warranty

6, We passed the CE, ROHS, ISO9001, TUV, LVD and other certification.

Our Services

1, All of our solar panels can be customized size, voltage, power and shape, and ensure high power and performance.

2, Our sales team 24 hours online, can reply your mail in time.

3, Affordable, delivery on time, 15-20 days lead time for glass solar panels, and flexible solar panels always have in stock.

4, Know well about solar energy industry, can provide specialized guidance to customers, such as the controller, inverter selection, the installation solution and so on.

5, As long as send an order to our company , you will always be our VIP customer, we will actively in updating and adjusting the product price regularly.

Product Description

5-80Watt Polycrystalline Solar Panel
Characteristics SN-P030 SN-P040 SN-P050 SN-P060 SN-P080
Maximum Power(Pmax) 30Wp 40Wp 50Wp 60Wp 80Wp
Optimum Operating Voltage/Vmp 18.0V 18.0V 18.0V 18.0V 18.0V
Optimum Operating Current/Imp 1.67A 2.22A 2.78A 3.33A 4.44A
Open Circuit Voltage /Voc 21.6V 21.6V 21.6V 21.6V 21.6V
Short Circuit Current /Isc 1.87A 2.42A 2.98A 3.52A 4.64A
Module Efficiency 13.70% 14.80% 14.42% 14.21% 15.61%
Weight 2.8Kg 3.2Kg 4.0Kg 5.2Kg 6Kg
Numbers of cells 36(2*18) 36(3*12) 36(3*12) 36(4*9) 36(4*9)
Cell dimension(mm) 156*31.2 156*39 156*52 156*62.4 156*78
Dimensions(mm) 635*345*25 530*510*25 680*510*30 670*630*30 765*670*30
Standard test condition

Mechanical Characteristics
Power Tolerance ±3 %
Maximum Series Fuse Rating 15A
Maximum System Voltage 1000V DC
Operating Module Temperature -40°C to +80°C
Frame Material Clear Anodized aluminum Frame
Thickness of glass 3.2mm tempered glass
Frame Anodized aluminum alloy
Laminating material EVA
Backsheet material TPT
Junction box Ip65

Mechanical Characteristics
Power Tolerance ±3 %
Maximum Series Fuse Rating 15A
Maximum System Voltage 1000V DC
Operating Module Temperature -40°C to +80°C
Frame Material Clear Anodized aluminum Frame
Thickness of glass 3.2mm tempered glass
Frame Anodized aluminum alloy
Laminating material EVA
Backsheet material TPT
Junction box Ip65

Temperature Characteristics
Norminal Operating Cell Temperature(NOCT) 45±2℃
Temperature Coefficient of Pmax -0.45%/2℃
Temperature Coefficient of Voc -0.34%/2℃
Temperature Coefficient of Isc -0.050%/2℃

Photovoltaic Polycrystalline Silicon Solar Cells 12 Volt 50 Watt For Street Light
