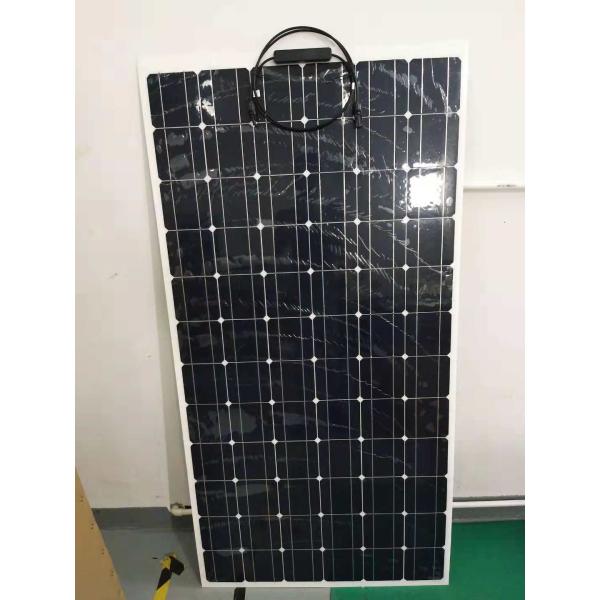

36 Volt 200 Watt Sunpower Monocrystalline Panels PET Surface With Aluminum Back Sheet
36 Volt 200 Watt Sunpower Monocrystalline Panels PET Surface With Aluminum Back Sheet
36 Volt 200 Watt Sunpower Monocrystalline Panels PET Surface With Aluminum Back Sheet
36 Volt 200 Watt Sunpower Monocrystalline Panels PET Surface With Aluminum Back Sheet
Specifications
Brand Name :
SHINE, OEM
Model Number :
SN-MH200W
Certification :
CE, RoHS, LVD, IEC
Place of Origin :
China
MOQ :
50
Price :
negioation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 pcs per month
Delivery Time :
10 days
Packaging Details :
carton and pallet
Wattage :
200W
voltage :
35V
Current :
5.71A
Size :
1580*800*3mm
Efficiency :
20%
Surface :
PET
Cable :
90Cm with MC4 connector
Description

36Volt 200 watt mono crystalline flexible solar panel 12V Solar Panel With aluminum back sheet

Semi-Flexible Solar Panel
MODEL PM/W VOC/V ISC/A VMP/V IMP/A N/W(kg) DIMENSION
(mm)
SN-MH18W 18.00 23.70 1.03 19.40 0.93 0.32 434*277*3
SN-MH20W 20.00 25.00 1.05 20.80 0.96 0.36 455*277*3
SN-MH25W 25.00 21.60 1.50 18.00 1.40 0.45 560*277*3
SN-MH30W 30.00 21.20 1.83 17.60 1.70 0.54 535*378*3
SN-MH50W 50.00 21.20 3.05 17.60 2.84 0.90 545*535*3
SN-MH60W 60.00 21.00 3.84 17.50 3.43 1.08 725*535*3
SN-MH90W 90.00 18.50 6.30 15.20 5.90 1.60 920*540*3
SN-MH100W 100.00 21.60 5.97 17.80 5.62 1.80 1050*540*3
SN-MH110W 110.00 23.70 5.91 19.80 5.56 1.98 1175*540*3
SN-MH120W 120.00 26.40 5.87 22.00 5.45 2.16 1305*540*3
SN-MH135W 135.00 29.50 5.82 24.90 5.45 2.43 1435*540*3
SN-MH150W 150.00 32.00 5.90 27.40 5.50 2.70 1300*660*3
SN-MH180W 180.00 40.00 6.00 33.00 5.45 3.24 1300*800*3
SN-MH200W 200.00 42.00 6.30 35.00 5.70 3.60 1435*800*3
SN-MH220W 220.00 48.30 5.90 39.80 5.45 3.96 1560*800*3
SN-MH250W 250.00 54.00 6.10 45.00 5.60 4.50 1810*800*3
SN-MH300W 300.00 66.00 6.50 55.00 5.45 5.40 1810*920*3

Features:

1.Shine solar flexible solar panel is perfect for boat or other applications where fixed power is available . Its maximum bending radius of 30 ° and a thickness of only 4mm;
2.suitable for curved oppvlakten like the deck of a boat or the roof of an RV .
3.With proper installation it is suitable to run over it.
4.Assembly is easy to realize itself with the kit available in our shop or through the 4 , connection holes in the corners of the panel .
5.All our flexible solar panels are made up of Class A high efficiency Sunpower U.S.
solar cells . These cells reach their high efficiency including through the metal contacts
Moving from the front to the rear and by the broadening of the contacts ,there is less loss power.
6.equipped with 0.9 m cable and MC4 connectors .

36 Volt 200 Watt Sunpower Monocrystalline Panels PET Surface With Aluminum Back Sheet

We SHINE SOLAR custom made various sizes and types of flexible solar panel to meet the unique needs of our customers. use ETFE/PET , TPT/Fiberglass and Aluminum sheet , please email us for more information.
