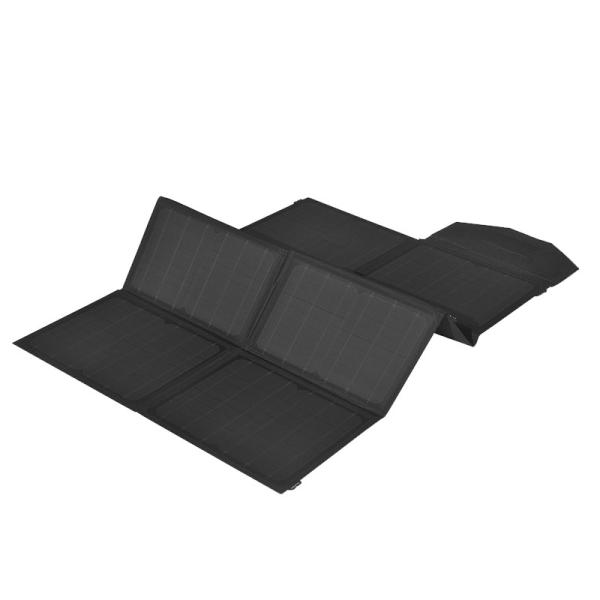

IP67 Mono Crystalline Foldable Solar Panel Charger 100w High Efficiency SunPower Cells
IP67 Mono Crystalline Foldable Solar Panel Charger 100w High Efficiency SunPower Cells
IP67 Mono Crystalline Foldable Solar Panel Charger 100w High Efficiency SunPower Cells
IP67 Mono Crystalline Foldable Solar Panel Charger 100w High Efficiency SunPower Cells
Specifications
Brand Name :
SHINE OR OEM
Model Number :
SN-MFH100W
Certification :
CE, RoHS, SGS, LVD
Place of Origin :
China
MOQ :
1
Price :
negiotation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10000 pcs per month
Delivery Time :
5-8 days
Packaging Details :
10 pcs per carton and then on pallet.
Front material :
High Efficiency SunPower cells
Size :
1350*720*4mm
Weight :
2.3KGS
Color :
White or Black
Junction box :
IP67 with Diodes
Connectors :
90cm with MC4 connectors
Voltage :
18V vmp
Description

Portable Solar Charger

That multifunctional portable solar charger, High efficiency, we have 2x40w and 3x40W two items, provide free power for charging 12V batteries, for example in vehicles and boats, motorhome , caravan, camping, narrow boat, yacht etc, or any other systems with a 12V battery or battery bank

Cell brand monocrystalline solar cells
Power tolerance ±5%
Peak power(WP) 100W/18v
Voltage at Pmax(Vmp) 17.80V
Current at Pmax(lmp) 5.62
Open circuit voltaage(Voc) 21.30
Short circuit current(lsc) 6.07
Controller Waterproof IP 30
Operating Temperature -40℃ ~ 70℃
Conversion Efficiency 18.4%
Temperature Coefficient of Pmax -0.39%/℃
Temperature Coefficient of voc -0.29%/℃
Temperature Coefficient of ISC -0.05%/℃
Nominal Operating Cell Temperature 45+/-2℃
Data under standard testing conditions(STC) 1000W/m2 ;1.5AM
Folding Dimension(Length*Width*Height) 360*295*40mm
Unfold Dimension(Length*Width*Height) 1350*720*4mm
Net Weight(kg) 4.48kg

Other model and wattage:

Sunpower Semi-Flexible Solar Panel
MODEL PM/W VOC/V ISC/A VMP/V IMP/A N/W(kg) DIMENSION
(mm)
SN-H18W 18.00 23.70 1.03 19.40 0.93 0.32 434*277*3
SN-H20W 20.00 25.00 1.05 20.80 0.96 0.36 455*277*3
SN-H25W 25.00 21.60 1.50 18.00 1.40 0.45 560*277*3
SN-H30W 30.00 21.20 1.83 17.60 1.70 0.54 535*378*3
SN-H50W 50.00 21.20 3.05 17.60 2.84 0.90 545*535*3
SN-H60W 60.00 21.00 3.84 17.50 3.43 1.08 725*535*3
SN-H90W 90.00 18.50 6.30 15.20 5.90 1.60 920*540*3
SN-H100W 100.00 21.60 5.97 17.80 5.62 1.80 1050*540*3
SN-H110W 110.00 23.70 5.91 19.80 5.56 1.98 1175*540*3
SN-H120W 120.00 26.40 5.87 22.00 5.45 2.16 1305*540*3
SN-H135W 135.00 29.50 5.82 24.90 5.45 2.43 1435*540*3
SN-H150W 150.00 32.00 5.90 27.40 5.50 2.70 1300*660*3
SN-H180W 180.00 40.00 6.00 33.00 5.45 3.24 1300*800*3
SN-H200W 200.00 42.00 6.30 35.00 5.70 3.60 1435*800*3
SN-H220W 220.00 48.30 5.90 39.80 5.45 3.96 1560*800*3
SN-H250W 250.00 54.00 6.10 45.00 5.60 4.50 1810*800*3
SN-H300W 300.00 66.00 6.50 55.00 5.45 5.40

1810*920*3
